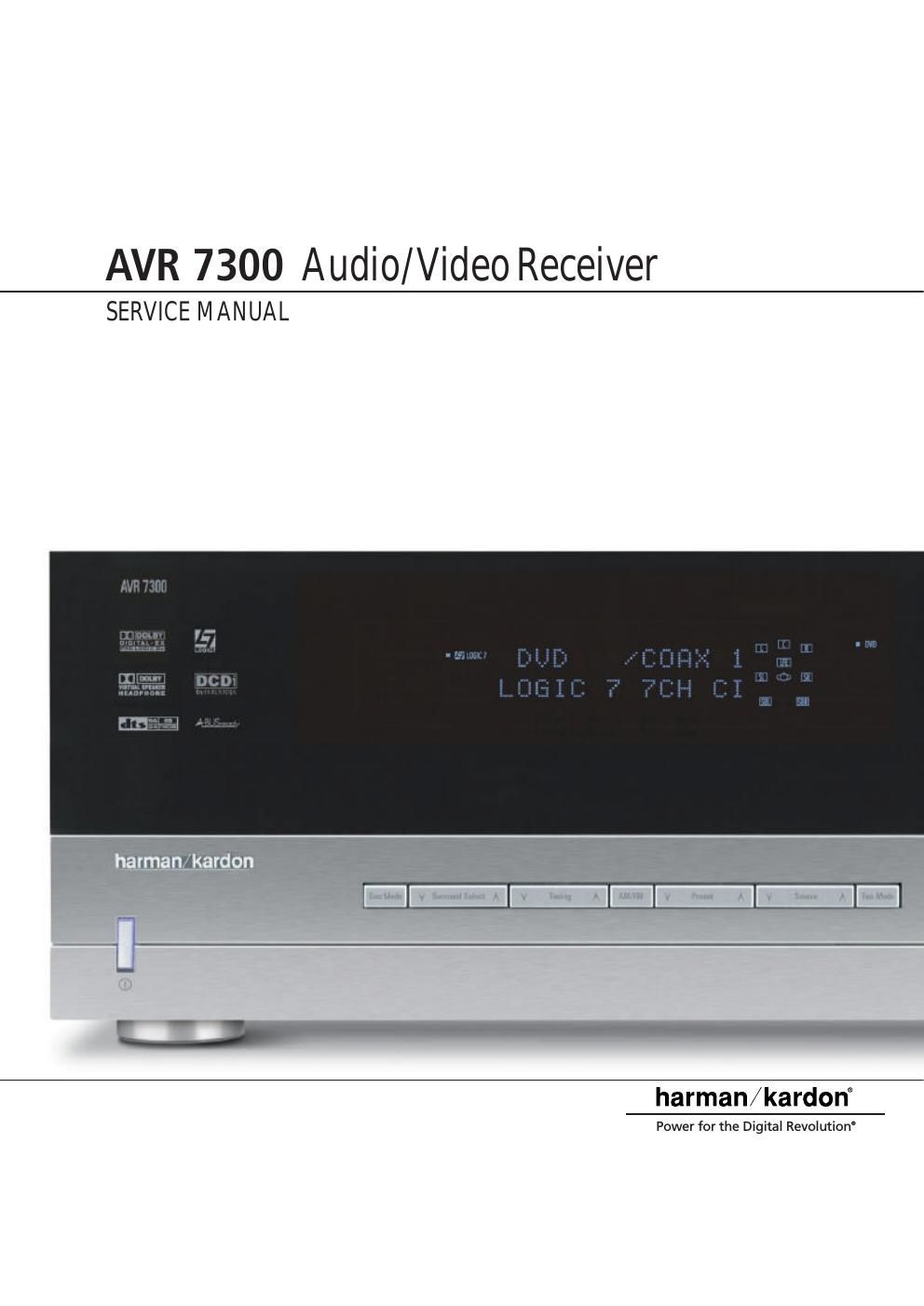

Page 1
AVR 7300 Audio/Video Receiver
SERVICE M ANUAL
harman/kardon
Power for the Digital Revolution
Page 2
Technical Specifications
Audio Section
Stereo Mode
Continuous Average Power (FTC)
125 Watts per channel, 20Hz-20kI-Iz,
@ < 0.07% THD, both channels driven into 8 ohms
5/7 Channel Surround Modes
Power Per Individual Channel
Front L&R channels:
110 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms
Center channel:
I10Watts, @ < 0.07% THD, 20Hz-20kHz into 8 ohms
Surround (L & R Side, L & R Back) channels:
110 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms
Input Sensitivity/Impedance
Linear (High Level) 200mV/47k0hms
Signal-to-Noise Ratio (IHF-A) IOOdB
Surround System Adjacent Channel Separation
Analog Decoding 40dB
(Pro Logic, etc.)
Dolby Digital (AC-3) SSdB
DTS SSdB
Frequency Response
@ IW (+0dB, -3dB) IOHz-130kHz
High Instantaneous
CurrentCapability(HCC) :75 Amps
Transient Intermodulation
Distortion (TIM) Unmeasurable
Rise Time 16 psec
Slew Rate 40V/psec
FM Tuner Section
Frequency Range 87.5-108MH2
Usable Sensitivity IHF 1.3 pV/13.2dBf
Signal-to-Noise Ratio Mono/Stereo: 70/68dB (DIN)
Distortion Mono/Stereo: 0.15/0.Z%
Stereo Separation 40dB @ 1kHz
Selectivity :400kHz: 70dB
Image Rejection 80dB
IF Rejection 90dB
AM Tuner Section
Frequency Range 520-1 7IOkHz
Signalto-Noise Ratio 45dB
Usable Sensitivity Loop: 500 W
Distortion 1kHz, 50% Mod: 0.8%
Selectivity :IOkHz: 30dB
Video Section
Video Format PAL/NTSC
Input Level/Impedance IVp»p/75 ohms
Output Level/Impedance 1Vp-p/75 ohms
Video Frequency Response
(Composite and S»Video) 10Hz-8MHz (-3dB)
Video Frequency
Response (Component) 10Hz-100MHz (>3dB)
General
Power Requirement
Power Consumption
AC 220-240V/50Hz
130W Idle, 1503W maximum
(7 channels driven)
Dimensions (Max)
Width 440mm
Height 192mm
Depth 520mm
Weight 28.6 kg
Depth measurement includes knobs, buttons and terminal connections.
Height measurement includes feet and chassis.
All features and specifications are subject to change without notice.
Harman Kardon and Power for the Digital Revolution are registered trademarks of
Harman International Industries, Incorporated.
lllIEzSet' is a trademark of Harman International Industries, Inc.
(Patent No. 5,386,473).
Manufactured under license from Dolby Laboratories.
"Dolby," Pro Logic, Pro Logic II" and the DoublerD symbol are
trademarks of Dolby Laboratories. Confidential Unpublished
Works. (9199271999 Dolby Laboratories, lnc.Al| rights reserved.
DTS and DTS Surround, DTSVES and DTS Neo:6 are trademarks of Digital Theater Systems, Inc.
VMAx is a trademark of Harman International Industries, Inc., and is an
implementation of Cooper Bauck Transaural Stereo under patent license.
Logic 7 is a registered trademark of Harman International Industries, Incorporated.
HDCD is a registered trademark of Pacific Microsonics, Inc.
AVBUS and ArBUS Ready are registered trademarks of Leisure Tech Electronics Pty Ltd Australia.
TiVo is a registered trademark of TiVo, Inc.
ReplayTV is a registered trademark of Digital Networks North America, Inc.
Without input anti slewing and output isolation networks.
Faroudia, DCDi and DCDi by Faroudya are registered trademarks of Genesis Microchip, Inc.
TECHNICAL SPECIFICATIONS 61
