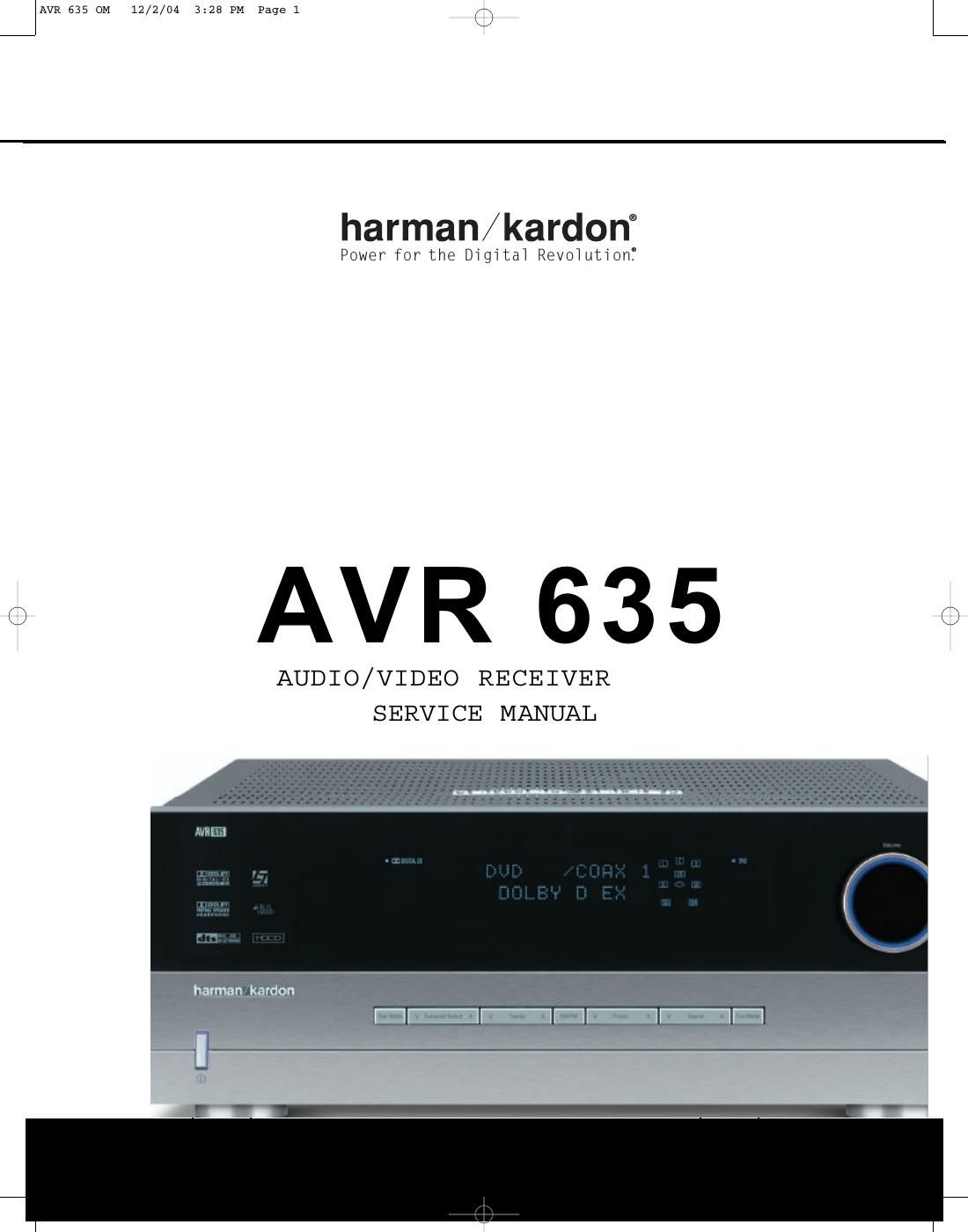

Page 1
AVR 635 OM 12/2/04 3:28 PM Page 1 gr
harman/kardon®
Power for the Digital Rev01ut1oni
#7 AVR 635 «%
AUDIO/VIDEO RECEIVER
SERVICE MANUAL
Page 2
Technical Specifications
Audio Section
Stereo Mode
Continuous Average Power (FTC)
90 Watts per channel, 20Hz-20kHz,
@ < 0.07% THD, both channels driven into 8 ohms
517 Channel Surround Modes
Power Per Individual Channel
Front L&R channels:
75 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms
Center channel:
75 Watts, @ < 0.07% THD, 20Hz-20kHz into 8 ohms
Surround (L & R Side, L & R Back) channels:
75 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms
Input Sensitivity/Impedance
Linear (High Level) 200mV/47k0hms
Signalto-Noise Ratio (IHF-A) 95dB
Surround System Adjacent Channel Separation
Analog Decoding 40dB
(Pro Logic, etc.)
Dolby Digital (AC-3) SSdB
DTS 55dB
Frequency Response
@ 1W (+0d B, -3dB) 10Hz-130kHz
High Instantaneous
Current Capability(HCC) :50 Amps
Transient Intermodulation
Distortion (TIM) Unmeasurable
Rise Time 16 psec
Slew Rate 40V/usec
Supplied Accessories
The following accessory items are supplied with theAVR 635.
If any of these items are missing, please contact Harman Kardon
customer service at www.harmankardon.com.
I A system remote control
I A Zone II remote control
I An iiiiiaxseuzo" microphone
I Extender rod for microphone
I An AM loop antenna
I An FM wire antenna
I Six AAA batteries
FM Tuner Section
Frequency Range 87.5-108MH2
Usable Sensitivity IHF 1.3 pV/13.2dBf
Signal-to-Noise Ratio Mono/Stereo: 70/68dB (DIN)
Distortion Mono/Stereo: 0.15/0.Z%
Stereo Separation 40dB @ IkHz
Selectivity :400kHz: 70dB
Image Rejection 80dB
IF Rejection 90dB
AM Tuner Section
Frequency Range 520-1 7IOkHz
Signal»to-Noise Ratio 45dB
Usable Sensitivity Loop: 500 (N
Distortion 1kHz, 50% Mod: 0.8%
Selectivity :IOkHz: 30dB
Video Section
Video Format PAL/NTSC
Input Level/Impedance 1Vp-p/75 ohms
Output Level/Impedance IVp-p/75 ohms
Video Frequency Response
(Composite and S»Video) 10Hz-8MHz (-3dB)
Video Frequency
Response (Component) IOHz-50MHZ (-3dB)
General
Power Requirement
Power Consumption
AC 220-240V/50Hz
59W idle, 1040W maximum
(7 channels driven)
Dimensions (Max)
Width 440mm
Height I65mm
Depth 43 5mm
Weight 18.6 kg
Depth measurement includes knobs, buttons and terminal connections.
Height measurement includes feet and chassis.
All features and specifications are subject to change without notice.
Harman Kardon and Power for the Digital Revolution are registered trademarks of
Harman International Industries, Incorporated.
lillElSeUEQ' is a trademark of Harman International Industries, Inc.
(Patent No. 5,386,473).
Manufactured under license from Dolby Laboratories.
"Dolby," Pro Logic, "Pro Logic II," "Pro Logix llx" and the DoublerD symbol are
trademarks of Dolby Laboratories. Confidential Unpublished
Works. (9199271999 Dolby Laboratories, |nc.All rights reserved.
DTS and DTS Surround, DTSVES and DTS Neo:6 are trademarks of Digital Theater Systems, Inc.
Logic 7 is a registered trademark of Harman International Industries, Incorporated.
HDCD is a registered trademark of Pacific Microsonics, Inc.
ArBUS and AVBUS Ready are registered trademarks of Leisure Tech Electronics Pty Ltd Australia.
TiVo is a registered trademark ofTiVo, Inc.
ReplayTV is a registered trademark of Digital Networks North America, Inc.
Without input anti slewing and output isolation networks.
TECHNICAL SPECIFICATIONS
