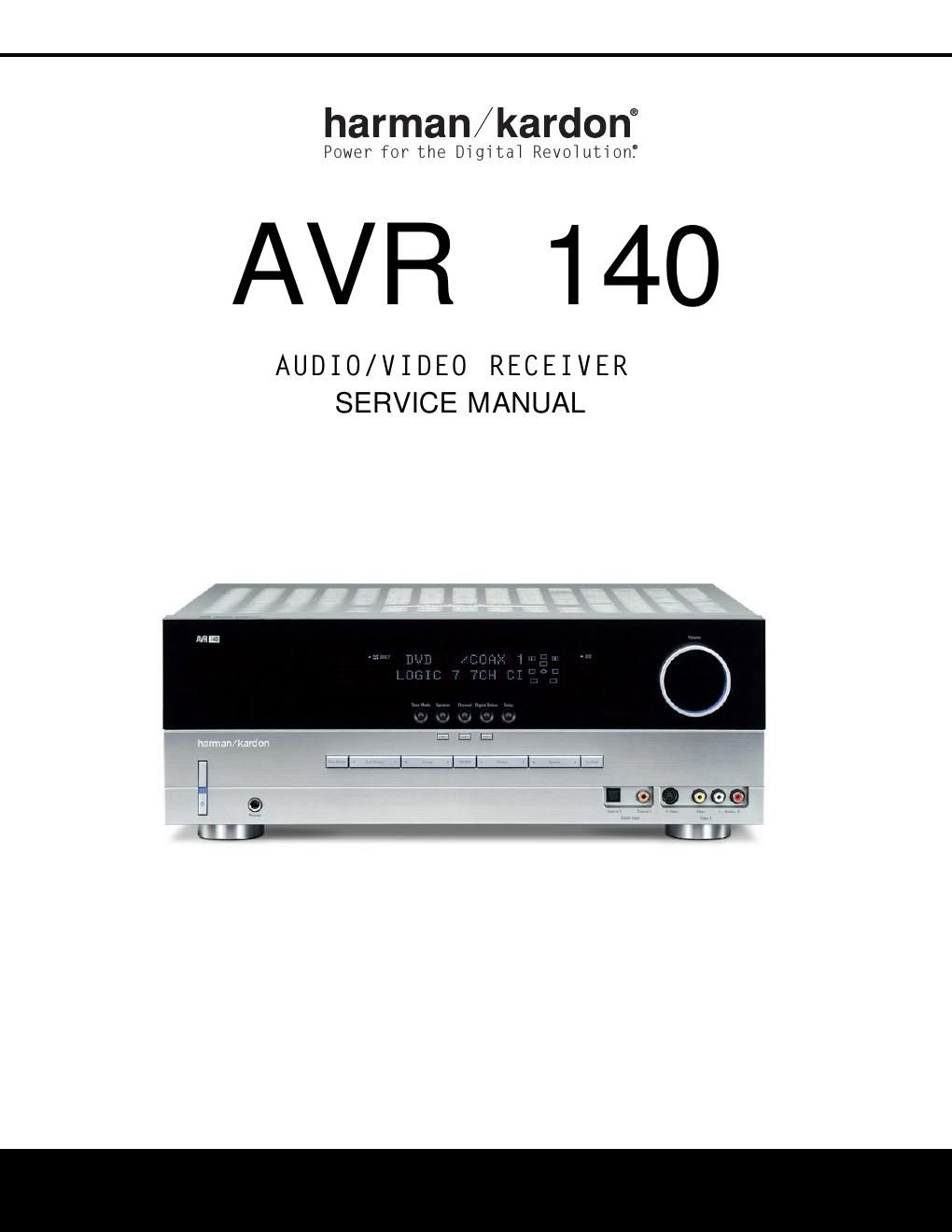

Page 1

harman/kardon®

Power for the Digita1 Rev01ut10ni°

AVR 140

AUDIO/VIDEO RECEIVER
SERVICE MANUAL

Page 2

25339_AVR140_Eng_2 30/08/05 9:56 Side 43

Technical Specifications

Audio Section
Stereo Mode
Continuous Average Power (FTC)

50 Watts per channel, 20Hz-20kHz,

@ < 0.07% THD, both channels driven into 8 ohms
6 Channel Surround Modes
Power Per Individual Channel

From L&R channels:

40 Watts per channel,

@ < 0.07% THD, ZOHZ-ZOkHz into 8 ohms

Center channel:

40 Watts, @ < 0.07% THD, 20Hz-20kHz into 8 ohms

Surround (L & R Side, Back) channels:

40 Watts per channel,

@ < 0.07% THD, ZOHZ-ZOkHz into 8 ohms

Input Sensitivity/Impedance
Linear (High Level) ZOOmV/47kohms
Signal-to-Noise Ratio (IHF-A) IOOdB
Surround System Adjacent Channel Separation
Analog Decoding 40dB
(Pro Logic, etc.)
Dolby Digital (AC-3) SSdB
DTS SSdB

Frequency Response
@ 1W (+0dB,-3dB) IOHz-I30kI-Iz

High Instantaneous

Current Capability (HCC) :25 Amps
Transient Intermodulation

Distortion (TIM) Unmeasurable
Rise Time 16 psec

Slew Rate 40V/psec

FM Tuner Section
Frequency Range
Usable Sensitivity
Signal-to-Noise Ratio

87.5-108MHz
IHF 1.3 pV/I3.2dBt
Mono/Stereo: 70/68dB (DIN)

Distortion Mono/Stereo: 0.2/0.3%
Stereo Separation 40dB @ IkHz
Selectivity :400kHz: 70dB

Image Rejection 80dB

IF Rejection 90dB

AM Tuner Section

Frequency Range SZZ-IGZOkHz
Signal-to-Noise Ratio 45 dB

Usable Sensitivity Loop: 500 W
Distortion IkHz, 50% Mod: 0.8%
Selectivity :rIOkHz: 30dB

Video Section
Video Format PAL/NTSC
Input Level/Impedance IVp-p/75 ohms
Output Level/Impedance 1Vp-p/75 ohms
Video Frequency Response
(Composite and S»Video) IOHz-8MHZ (>3dB)
Video Frequency
Response (Component) IOHz-SOMHZ (-3dB)

General
Power Requirement
Power Consumption

AC 220-240V/50Hz
65W idle, 540W maximum
(6 channels driven)

Dimensions (Max)

Width 440mm
Height 165mm
Depth 382mm
Weight I I .1 kg

Depth measurement includes knobs, buttons and terminal connections.
Height measurement includes feet and chassis.
All features and specifications are subiect to change without notice.

Harman Kardon is a registered trademark, and Power for the digital revolution is a trademark, of
Harman International Industries, Inc.

Harman Kardon, Power for the Digital Revolution,The Bridge manage: and Logic 7 are
registered trademarks of Harman International Industries, Incorporated.

Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic and the DoublerD symbol are

trademarks of Dolby Laboratories. Confidential Unpublished
Works. ©i9927l999 Dolby Laboratories, Inc. All rights reserved.

DTS and DTS Surround, DTSVES and DTS Neo:6 are trademarks of Digital Theater Systems, Inc.

VMAx is a trademark of Harman International Industries, Inc., and is an
implementation of Cooper Bauck Transaural Stereo under patent license.

SArCD is a trademark of Sony Electronics, Inc.
Apple and iPod are registered trademarks of Apple Computer, Inc.
Cirrus is a registered trademark of Cirrus Logic Corp.

"Without input anti slewing and output isolation networks.
