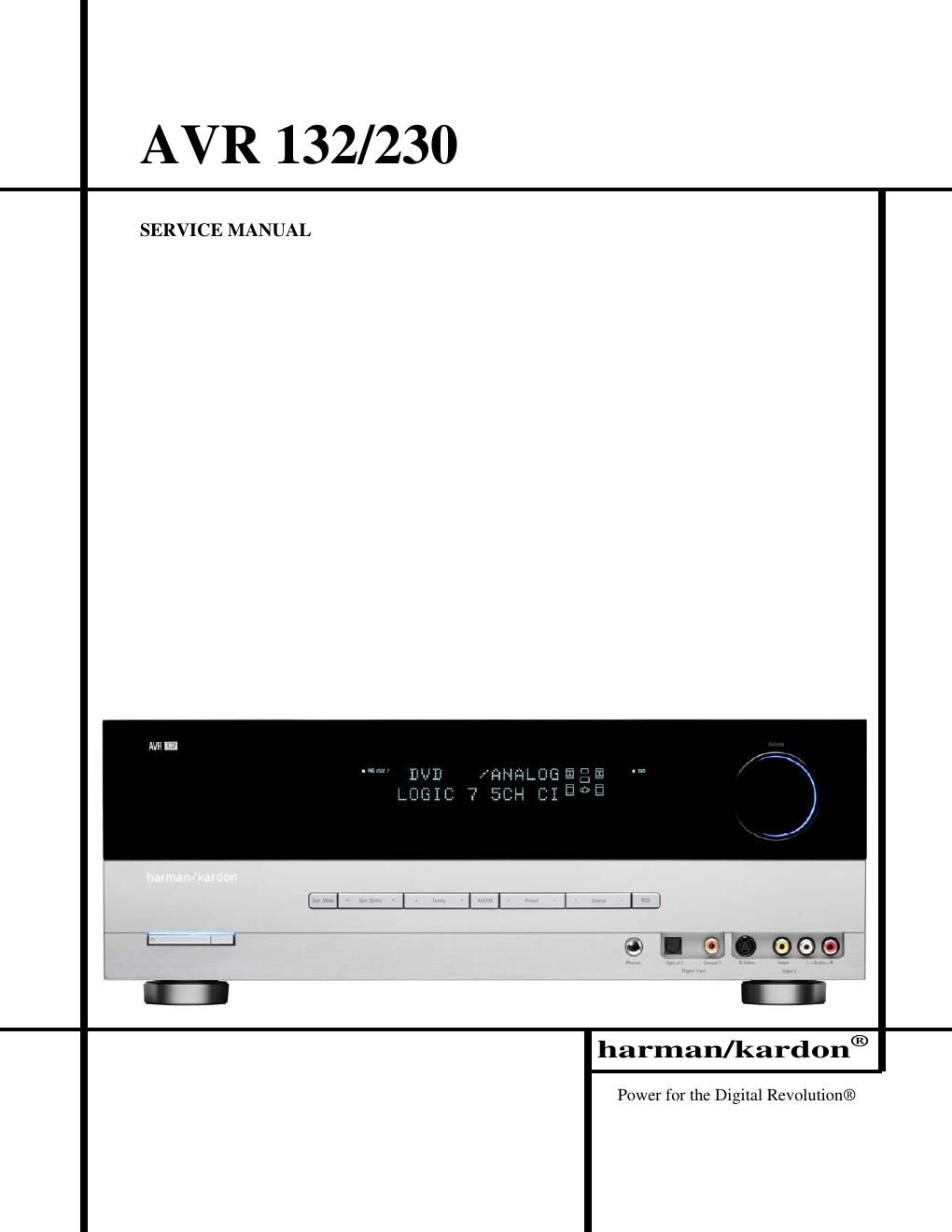

Page 1
AVR 132/230
SERVICE MANUAL
'- L» {I Q]! @991
I:-
harman/kardon®
Power for the Digital Revoluti0n®
Page 2
297827AVR1327ENGisort 10/08/06 16:45 Side 35
Technical Specifications
Audio Section
Stereo Mode
Continuous Average Power (FTC)
40 Watts per channel, 20Hz-20kHz,
@ < 0.07% THD, both channels driven into 8 ohms
Five-Channel Surround Modes
Power Per Individual Channel
Front L&R channels:
30 Watts per channel,
@ < 0.07% THD, ZOHZ-ZOkHz into 8 ohms
Center channel:
30 Watts, @ < 0.07% THD, 20Hz-20kHz into 8 ohms
Surround channels:
30 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms
Input Sensitivity/Impedance
Linear (High Level) 200mV/47kohms
Signal-to-Noise Ratio (IHF-A) 95dB
Surround System Adjacent Channel Separation
Analog Decoding 40dB
(Pro Logic, etc.)
Dolby Digital (AC-3) SSdB
DTS SSdB
Frequency Response
@ 1W (+0dB, -3dB)
IOHz-IOOkHz
FM Tuner Section
Frequency Range
Usable Sensitivity
Signal-to-Noise Ratio
Distortion
Stereo Separation
Selectivity
Image Rejection
IF Rejection
AM Tuner Section
Frequency Range
Signal-to-Noise Ratio
Usable Sensitivity
Distortion
Selectivity
Video Section
Video Format
Input Level/Impedance
Output Level/Impedance
Video Frequency
Response
General
Power Requirement
Power Consumption
87.5-108MHz
IHF 1.3 pV/13.2dBf
Mono/Stereo: 70/65dB (DIN)
Mono/Stereo: 0.15/0.3%
35dB @ IkHz
:AOOkHz: 70dB
80dB
90dB
522-1620kHz
45dB
Loop: 500 W
IkHz, 50% Mod: 0.8%
:1 OkHz: 30dB
PAL/NTSC
IVp-p/75 ohms
IVp-p/75 ohms
lOHz-SMHZ (-3dB)
AC 220-24OV/SOH2
72W idle, 580W maximum
High Instantaneous
Current Capability (HCC) :25 Amps
Transient Intermodulation
Distortion (TIM) Unmeasurable
Rise Time 16 psec
Slew Rate 40V/psec
(2 channels driven)
Dimensions (Max)
Width 440mm
Height 165mm
Depth 382mm
Weight 9.6 kg
Depth measurement includes knobs, buttons and terminal connections.
Height measurement includes feet and chassis.
All features and specifications are subject to change without notice.
Harman Kardon is a registered trademark.
*Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic, and the DoublevD symbol are
trademarks of Dolby Laboratories, Inc.
Confidential Unpublished Works. ©199271999 Dolby Laboratories, Inc.
All rights reserved.
T"DTS" and "DTS Neo:6" are registered trademarks of DTS, Inc. "96/24"
is a trademark of DTS, Inc.
Logic 7 is a registered trademark of Lexicon, Inc.
TECHNICAL SPECIFICATIONS
