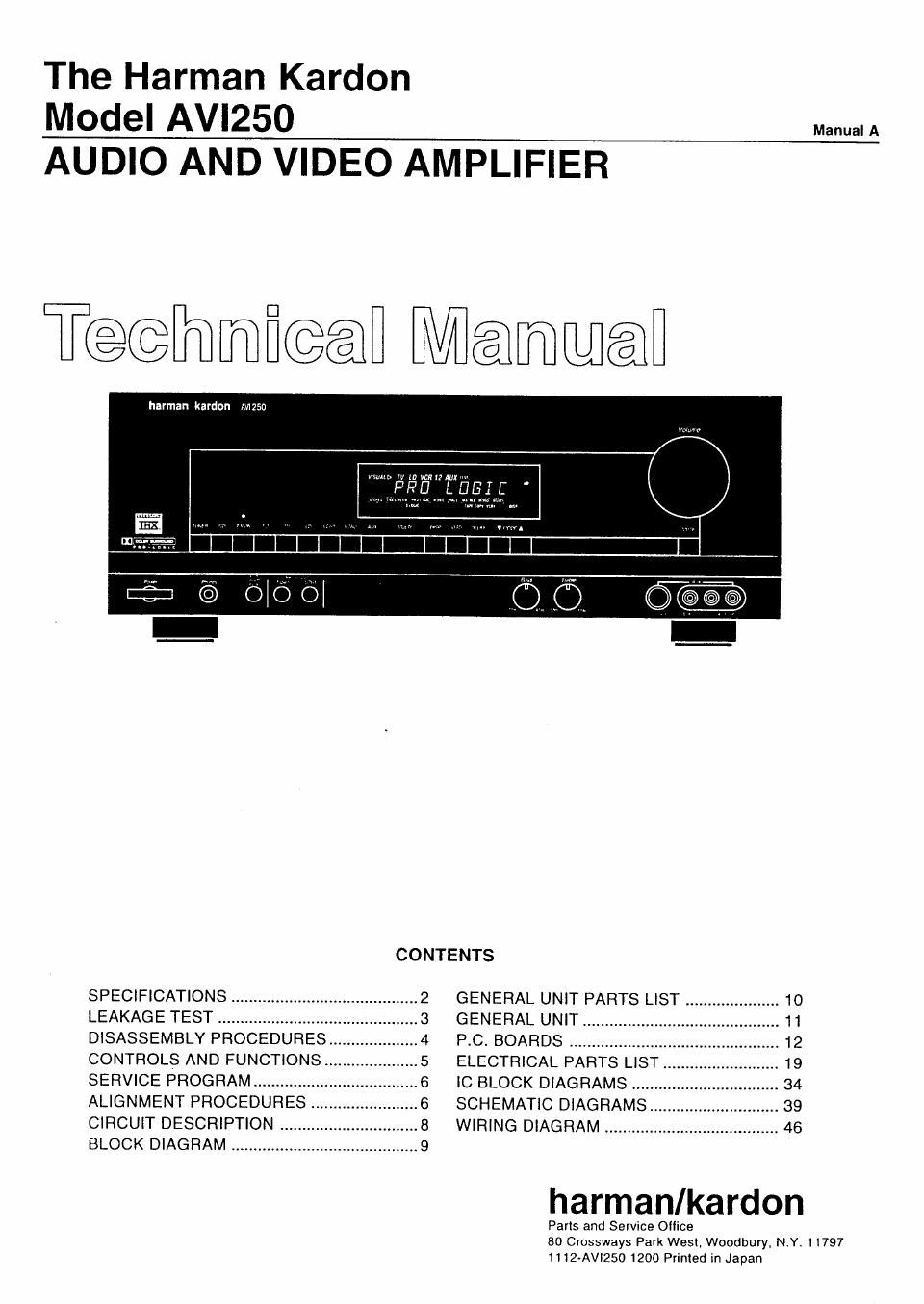

The Harman Kardon
Model AVI250
AUDIO AND VIDEO AMPLIFIER
T@@h[mfi@@fl Mmmfl
harman kardan AVI250
CONTENTS
SPECIFICATIONS .......................................... 2 GENERAL UNIT PARTS LIST ..................... 1O
LEAKAGE TEST ...................... GENERAL UNIT ........................ 11
DISASSEMBLY PROCEDURES ..... P.C. BOARDS ..... .. ..... 12
CONTROLS AND FUNCTIONS.,... ELECTRICAL PARTS LIS . ..... 19
SERVICE PROGRAM ..................
ALIGNMENT PROCEDURES.
CIRCUIT DESCRIPTION
BLOCK DIAGRAM ......................................... 9
IC BLOCK DIAGRAMS ........ .34
SCHEMATIC DIAGRAMS .39
WIRING DIAGRAM ....................................... 46
harman/kardon
Parts and Service Office
Manual A
80 Crossways Park West Woodbury, NY. 11797
1112vAVI250 1200 Printed in Japan
SPECIFICATIONS
Audio Section
Stereo Mode
Continuous Average Power ( FTC )
100 Watts per channel 20Hz-20KH22
@ <0.07% THD, both channels driven into 8 Ohms
Five Channel Surround Mode
Continuous average power per channel ( FTC )
From L&R channels:
85 Watts per channel from 20Hz-20KHz,
6 <0.05% THD. both channels driven into 8 Ohms
Center channel:
85 Watts from 20Hz-20KHz,
@ <0.05% THD, driven into 8 Ohms
Surround channels:
60 Walls per channel from 40Hz-20KH2,
Input Sensitivity/Impedance
220mV/50 Kohms
Signal to Noise Rate ( lHF-A)
Linear
Dolby Surround
Frequency Response
High Instantaneous
Transient Intermodulation
Rise Time
Slew Rate
95 dB
40 dB
7Hz-80KH2
30 amps
Unmeasurable
40 Vlusec
Video Section
PAL. NTSC, SECAM
General
Power Requirement AC 230V 50 Hz
Power Consumption 54W idle, 700W maximum
Dimension ( Max)
Width 17.4 inches (444 mm)
Specifications and components are subiect to change without
@
Linear
Front Main in
Center Main In
Surround Main ln
1.5 V/20 Kohms
1.5 V/20 Kohms
1.0 V/20 Kohms
Channels Separation
@ 1W (+0, -3 118)
Current Capability ( HCC )
Distortion ( TIM )
16 usec
Television Format
Input Level/Impedance th-p/75 Ohms
Output Level/Impedance 1Vp-p/75 Ohms
Video Frequency Response 10 Hz to 80 MHz (~3 dB)
SIN 65 dB
Height 6.4 inches (160 mm)
Depth 18 inches (459 mm)
Weight 31 Lbs. (14 kg)
notice. Overall performance will be maintained or improved.
