Hafler SE 130 Owners Manual

Page 1

Q) g DMEQ SHAME CON

0

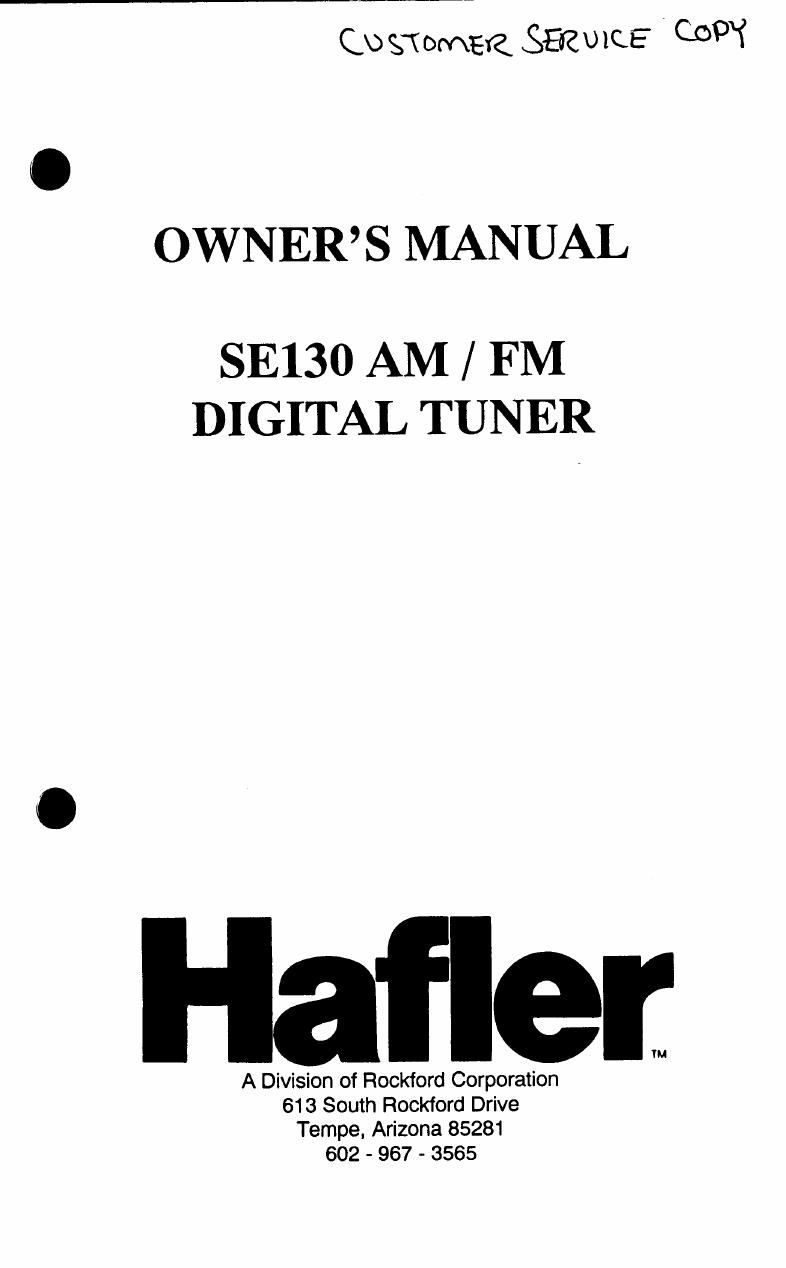

OWNERS MANUAL

SE130 AM / FM
DIGITAL TUNER

Hafler

A Division of Rockford Corporation
613 South Rockford Drive
Tempe, Arizona 85281
602 ~ 967 - 3565

Page 2

INTRODUCTION

The Hatler SE130 AM/FM Tuner combines high quality
radio and audio circuitry with convenient and flexible
operation. The digital tuning system employs a quartz-
crystal referenced Phase-Locked-Loop (PLL), and a spe-
cial combined microprocessor/synthesizer employing
proprietary programing.

The basic operation and features of the SE130 are
described in simplified form in figure one. Although opera-
tion of the tuner is possible by studying this diagram only,
complete appreciation of its features and operating modes
can only be realized by thoroughly reading this owner's
manual.

We have tried to present this additional information in an
easy to follow format, mostly in sections corresponding to
the numbered call-outs in figure one. We urge you to take
the time to read through this material as soon as possible.

INSTALLATION

The gloss-black insert on the faceplate of your new tuner
has been packaged with a removable protective coating.
Please peel off this protective coating following installation.

When cleaning the faceplate, we advise a soft cotton cloth
with a non-abrasive cleaner that is safe for Lexan and
painted surfaces. QQ_N_OI use paper towels or any other
coarse material to clean the faceplate as these materials
may scratch the faceplate.

The SE130 is shipped with removable end caps on its front
panel. Optional rack-mounting ears are available from the
factory for mounting the unit in a standard 19" equipment
rack.
