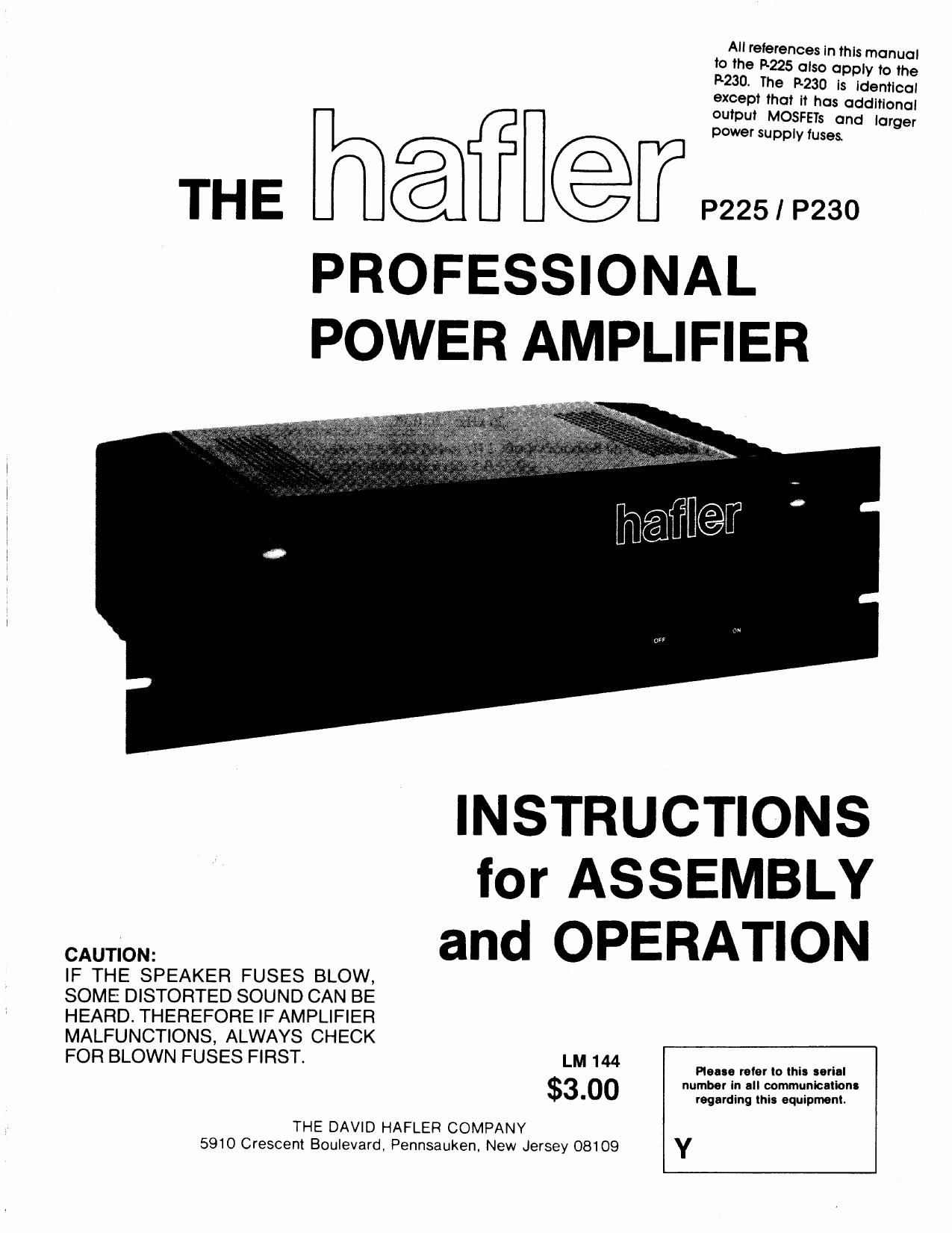

half @r
PROFESSIONAL
POWER AMPLIFIER
All references In this manual
to the P-225 also apply to the
R230. The P-230 is ldenllcal
except that it has addllional
output MOSFETs and larger
power supply fuses
P225 / P230
INSTRUCTIONS
for ASSEMBLY
and OPERATION
IF THE SPEAKER FUSES BLOW,
SOME DISTORTED SOUND CAN BE
HEARD. THEREFORE IF AMPLIFIER
MALFUNCTIONS, ALWAYS CHECK
FOR BLOWN FUSES FIRST. LM 144
$3.00
THE DAVID HAFLER COMPANY
5910 Crescent Boulevard. Pennsauken, New Jersey 08109
number in all communications
Y
Please roIer lo Ibis vial
regarding (his equipment
SPECIFICATIONS
Power Rating: 115 watts per channel into 8 ohms at less than 0.02% THD from 20 Hz to
20 kHz with both channels driveni
175 watts per channel into 4 ohms at less than 0.04% THD from 20 Hz to
20 kHz with both channels driven.
350 watts into 8 ohms at less than 0.04% THD from 20 Hz to 20 kHz in
monophonic bridged operation.
230 watts into 16 ohms at less than 0.02% THD from 20 Hz to 20 kHz in
monophonic bridged operation.
IM Distortion (SMPTE): Less than 0.005% from 1 watt to 115 watts, each channel, into 8
ohms.
Typical THD at 115 watts intos ohms: 1 kHz: 0.002%
10 kHz: 0.007%
20 kHz: 0.014%
Frequency Response into 8 ohms: -3 dB, 2 Hz to 160 kHz at 1 watt.
+0, -0,5 dB, 6 Hz to 60 kHz at 115 watts.
Typical Channel Separation: 20 Hz: > 75 dB
1 kHz: > 85 dB
20 kHz: > 65 dB
Signal to Noise Ratio, unweighted: Exceeds 100 dB referred to 115 watts into 8 ohms.
Input Impedance: 47 ,000 ohms, in parallel with 50K ohms input level control.
Input Sensitivity: L55 volts ms for 115 watts into 8 ohms
Damping Factor: 300 to 1 kHz into 8 ohms
60 to 10 kHz into 8 ohms
Rise Time: 10 kHz, 60 volts p/p square wave, 10% to 90%: 2.5,;5.
Slew Rate: 10 kHz, 60 volts p/p square wave: 30V/,us.
Semiconductor Complement: 26 transistors, 8 power MOSFETs, 29 diodes, 4 zener diodes,
1 diode bridge.
Power Consumption: 125 VA quiescent; 580 VA @ rated power into 8 ohms, both channels
driven.
Size: 5-1/4" high plus 1/4 feet, [9" wide, 10-1/2" deep plus 1-1/4 for handles.
Net Weight: 28 lbs.
Shipping Weight: 32 lbs.
CAUTION: For continued protection, replace the power fuse only with the same type and rating
as indicated.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
Copyright 1986. The David Hafler Company. All rights reserved.
