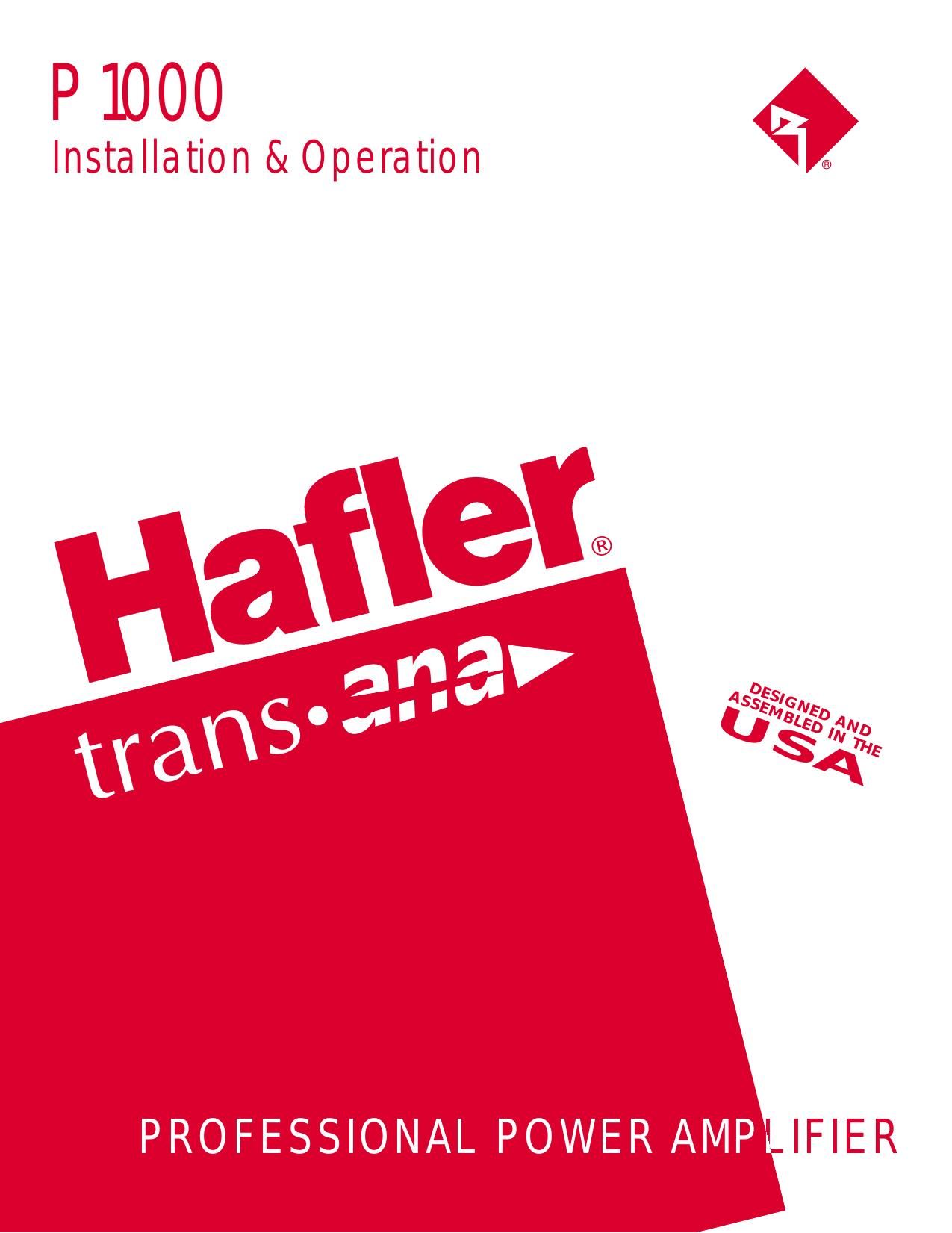

Hafler P1000 Owners Manual

Extracted text from Hafler P1000 Owners Manual (Ocr-read)

Page 1

Declaration of Conformity Application of Council Directive:73 / 23 / EEC (Low Voltage Directive) 89 / 336 / EEC (EMC Directive) Standard(s) to which Conformity is Declared: EN55103-1 EN55103-2 EN60065 Manufacturers Name: Hafler Manufacturers Address: 546 South Rockford Drive, Tempe, Arizona 85281 Importers Name: Importers Address: Type of Equipment: 2-channel Audio Power Amplifier/Speaker Model No.: P1000CE P1500CE P3000CE P4000CE 9505CE TRM6CE TRM8CE TRM10sCE TRM12sCE Year of Manufacturing: 1999 2000 2001 2002 2003 Serial Number: I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s) Place: Hafler Date: 09/01/1999 James C. Strickland, VP Engineering -“ i -“

Page 2

P ERFORMANCE S PECIFICATIONS P1000 Power Rating: FTC (20Hz-20kHz, <0.2% THD) EIA (1kHz, 0.2% THD)50 wpc into 8-„¦ 55 wpc into 8-„¦ 55 wpc into 4 -„¦ 60 wpc into 4-„¦ 110 wpc into 8 -„¦ (bridged mono) 120 wpc into 8 -„¦ (bridged mono) Signal-to-Noise: 100dB below rated output A weighted Frequency Response: 20Hz to 20kHz, Β±0.1dB 0.1Hz to 100kHz, +0/-“3dB Slew Rate: 20 V/Β΅s Input Impedance: 47,000 -„¦ per phase balanced 10,000 -„¦ per phase unbalanced Input Sensitivity for rated output power: Unbalanced: 0.714V RMS (8 -„¦), 0.554V (4-„¦) Balanced: 0.375V (8 -„¦), 0.277V (4-„¦) per phase Gain: 29dB maximum, -“41dB minimum CMRR: -“70dB at 1kHz Damping Factor: 900 (to 1kHz); 400 (to 10kHz); 40 (to 100kHz) Power Consumption: 50W/420mA @ 120VAC (idle power) (both channels driven) 152W/1.3A @ 120VAC (1/8 power -“ 8 -„¦) 260W/2.2A @ 120VAC (max. power -“ 8 -„¦) Controls & Switches: Front Panel: Power switch, Normal/Bridged mono switch, level controls Rear Panel: Chassis/Float ground switch, Balanced/Unbalanced switch 115V/230V Power line selector Indicators: Power Lamp, Clip, Thermal, Signal LEDs Connectors: Input: Balanced: 2-way XLR and 1/4" Tip Ring Sleeve Unbalanced: RCA Output: Screw Terminals on barrier strip Headphone: 1/4 inch Power: IEC 320 Dimensions: 19"W x 8 3-„8"D x 1 3-„4"H (1-Rack Space) (48.3cm x 21.3cm x 4.45cm) Net Weight: 12 lbs. (5.45kg) -“ ii -“ .724 8.410 19.00 16.00 1.75 ignalclipping he m al B idged Mono Normal He dphones ignal clipping he mal trans ana P1000 6 4 2 8 0 10 6 4 2 8 0 10
