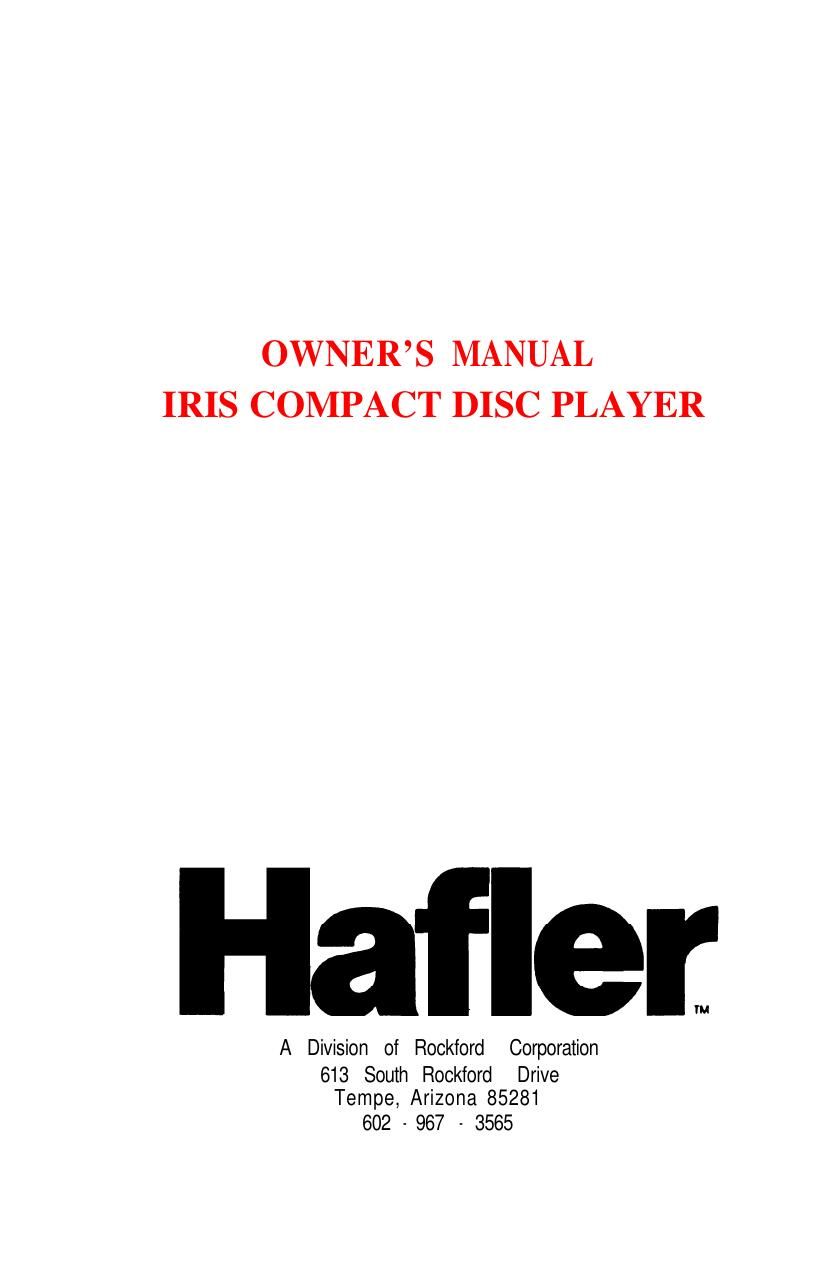

Hafler Iris CD Owners Manual

Page 1

TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 1 Installation Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 1 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2 Operation Explanation Of Keys ...................... Page 2 Remote Control ........................ Page 4 Display Indications ....................... Page 5 Loading/Unloading Disc .................... Page 7 PlayingaDisc ........................ Page7 Next/Previous Track Selections ................ Page 8 Searching Function ....................... Page 9 Random Play .......................... Page 9 Programming .......................... Page 11 Additional Information ..................... Page 13 Technical Data .......................... Page 16 Symptoms and Their Likely Causes . . . . . . . . . . . . . . Page 17 Factory Service and Limited Warranty . . . . . . . . . . . . . Page 17

Page 2

INTRODUCTION The Hafler IRIS system is a major step forward in the world of audio technology. The IRIS CD completes an intensive engineering effort to create a series of components which offer superior performance combined with the unprece- dented convenience of the IRIS remote control. The basic operation and features of the IRIS CD Player are described in simplified form in figures 1 and 2. Although operation of the CD Player is possible by studying these diagrams only, complete appreciation of its features and operating modes can only be realized by thoroughly read- ing this owners manual. We have tried to present this information in an easy to follow format. We urge you to take the time to read through this manual as soon as possible. INSTALLATION SET-UP OF THE IRIS CD PLAYER FREE STANDING Always set the player horizontally on a flat, firm surface. Allow a minimum space of a least 14" above the player so as not to interfere with the cooling of the player. STACKED Locate the player preferably at the bottom. Never set the player directly on top of a high-power amplifier, because such an amplifier gives off a substantial amount of heat. RACK MOUNTING The IRIS CD Player is shipped with removable end caps on its front panel. Optional rack mounting ears are avail- able from the factory for mounting the unit in a standard 19 equipment rack. 1

Page 12

PLAYING THE PROGRAM Press PLAY - The ARROW SYMBOL will light up. - The first number of the program appears on thedisplay. - Play begins as soon as the time display of the first track is shown. - As play continues the selected sequence and the corresponding track numbers will appear. - While playing, the entire program can be reviewedby pressing PRG. - Pressing (PREVIOUS) or (NEXT) during programmed play will change the track to the previous or next track in the sequence. All player functions can be used during programmed play except for: - Beginning with a track other than the first one on the program. - Playing the program in random order. Searching for a particular passage is limited to within the track being played. When either end of the track is reached ERROR lights up. When STOP is pressed or when all the tracks of the program have been played, the disc stops, but the program remains stored. The program will be erased when you open the tray. It will also be erased if you press STOP twice in succession during playback. ADDITIONAL INFORMATION CARE OF THE DISCS Although both sides of a disc are protected by a special coating, it is still advisable to treat the discs with care: Never leave discs lying around: put them back in their holders immediately after use. Never write on the printed side! Do not attach any stickers on that side. Keep the shiny surface of the disc clean. Use a soft lint-free cloth and always wipe the disc in a straight line from center to 13
