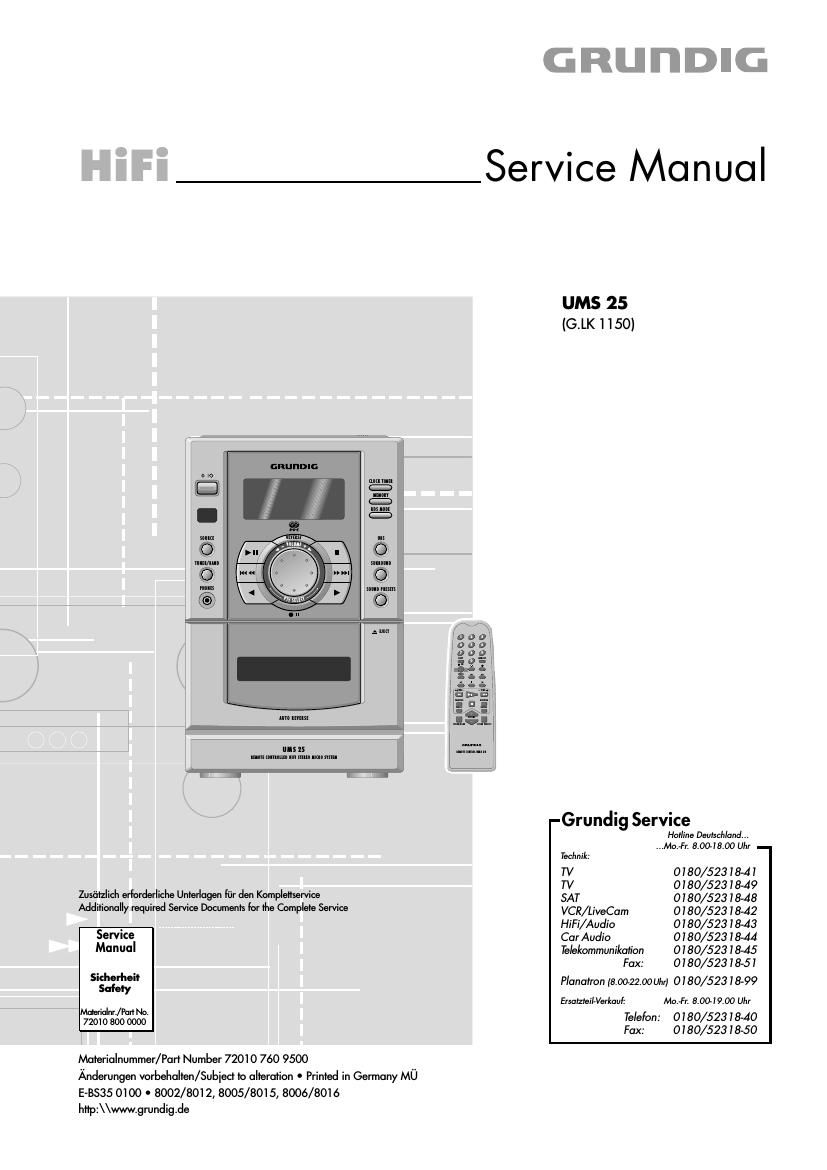

This is the 24 pages manual for Grundig UM 25 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Allgemeiner Teil / General Section
- UMS 25
Es gelten die Vorschriften und Sicherheitshin-
weise gemaB dem Service Manual "Sicherheit",
Materialummer 72010 800 0000, sowie zusatz-
lich die eventuell abweichenden, landes-
spezifischen Vorschriften!
The regulations and safety instructions shall be
valid as provided by the "Safety" Service Manual,
part number 72010 800 0000, as well as the
respective national deviations.
® lnhaltsverzeichnis
Allgemeiner Teil .
MeBgeréte / MeBmittel
Technische Daten
Servicehinweise
Ausbauhinweise
Bedienhinweise.
Abgleichvorschriften ................................... 2-1
Schaltpléne und
Druckplattenabbildungen ................. 3-1...3-14
Verdrahtungsplan. . 3-1
IC-Blockschaltplane . . 3-2
Bedienplatte . 3-5
CD-Platte .. . 3-3
Hauptplatte .. 3-11
Explosionszeichnungen
und Ersatzteillisten .............................. 4-1...4-4
Allgemeiner Teil
MeBgerate / MeBmittel
NF-Voltmeter
Frequenzzéhler
Cr-Testcassette (31 SOHZ / 10kHz) z.B. 448A
Beachten Sie bitte das GRUNDIG MeBtechnik-Programm, das Sie
unter folgender Adresse erhalten:
Table of Contents
General Section ..
Test Equipment / Aids.
Technical Data ..
Service Hints
Disassembly Instructions
Operating Hints
Adjustment Procedures ................................ 2-2
Circuit Diagrams
and Layout of the PCBs ..................... 3-1 ...3-14
Wiring Diagram ............... . 3-1
IC Block Circuit Diagrams . 3-2
Operating Board . 3-5
CD Board .. . 3»B
Main Board .. 3-11
Exploded Views and
Spare Parts Lists .................................. 4-1...4-4
General Section
Test Equipment / Aids
AF Voltmeter
Frequency Counter
Cr test cassette (3150Hz/ 10kHZ) e.g. 448A
Please note the Grundig Catalog "Test and Measuring Equipment"
obtainable from:
Grundig AG
Geschéttsbereich Instruments
Test- und MeBsysteme
Wiirzburger Str. 150, D-90766 Fflrth
Tel.: 0911 [703-4118; Fax: 0911 I 703-4130
eMail: instruments@grundig.de
Internet: http:\\www.grundig-instruments.de
lbl
GHUNDIG Service
