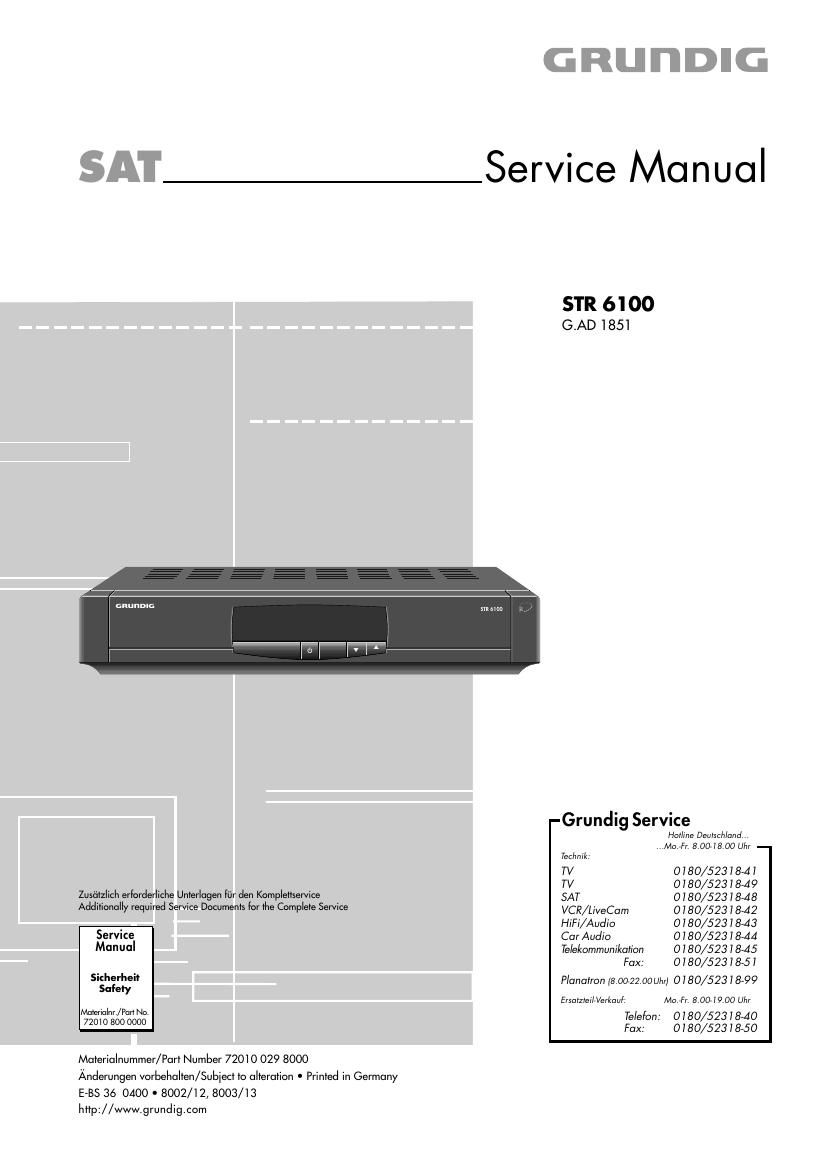

This is the 24 pages manual for Grundig STR 6100 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Allgemelner Teil / General Section
STE 6100
Es gelten die Vorschriften und Sicherheitshin-
weise gemaB dem Service Manual "Sicherheit",
Materialnummer 72010 800 0000, sowie zusatz-
Iich die eventuell abweichenden, landes-
spezitischen Vorschriften!
&
The regulations and safety instructions shall be
valid as provided by the "Safety" Service Manual,
part number 72010 800 0000, as well as the
respective national deviations.
®
lnhaltsverzeichnis
Allgemeiner Teil ............................ 1 - 21 - 8
Messgerate / Messmittel -
Technische Daten ..
Servicehinweise .
Ausbauhinweise.
Bedienhinweise ..
Schaltungsbeschreibung .
Netzteil
Tuner...
Schaltpléne und
Druckplattenabbildungen. .. 3 - 12
Schaltplan Netzteil . 3 . 1
Gesamtschaltplan .. 3 - 3
Druckplattenabbildungen .......................................................... 3 - 7
Ersatzteilliste ................................. 4 -1 4 - 2
Allgemeiner Teil
Messgerate / Messmittel
Beachten Ste bttte das GRUNDIG Messtechnik»Programm, das Sie unter
folgender Adresse erhaIten:
Table of Contents
Page
General Section ........................... 1 - 2 1 - 12
Test Equipment/Aids. .. 1 - 2
Technical Data 1 - 3
Service Instruction 1 - 3
Disassembly Instructions 1 - 4
Operating Hints ........... . 1 - 9
Circuit Description 2 - 2
Power Supply 2 - 1
Tuner. .. 2 - 2
Circuit Diagrams
and Layoutof PCBs... 3-1 3-12
Circuit Diagram Power Supply 3 - 1
General Circuit Diagram ......... .. 3 - 3
Layout of PCBs ......................................................................... 3 - 7
Spare Parts List ............................. 4 - 1 4 - 2
General Section
Test Equipment / Aids
Please note the Grundrg Catalog "Test and Measuring Equipment" obtain-
able from:
GRUNDIG Instruments Test- und Messsysteme GmbH
Wiirzburger Str. 150
D 90766 Ffirth/Bay
Tel. 0911 /703-41 1 8
Fax 0911/703-4130
eMail: instruments@grundig.de
Internet: http://www.grundig-instruments.de
GRUNDIG Service
