Allgemeiner Teil / General Section

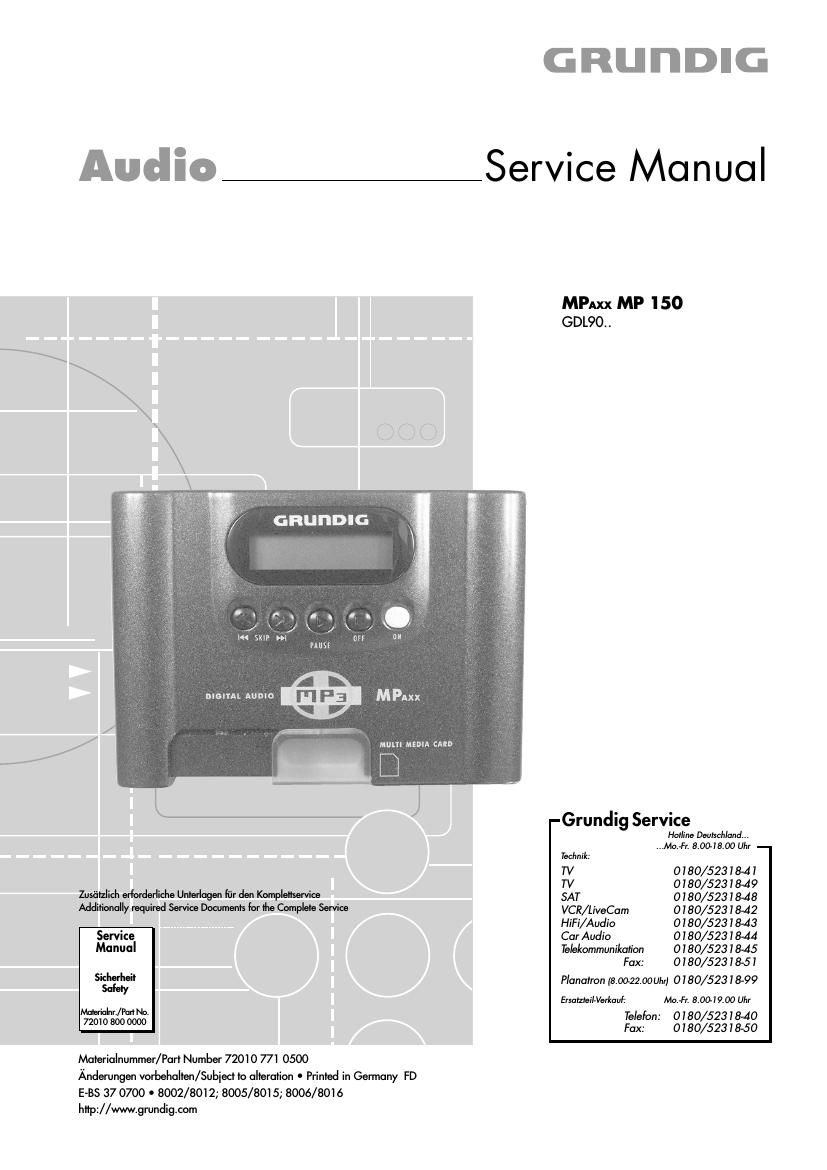

MPAXX MP150
Es gelten die Vorschriften und Sicherheitshin-
weise gemaB dem Service Manual "Sicherheit",
Materialummer 72010 800 0000, sowie zusatz-
lich die eventuell abweichenden, landes-
spezifischen Vorschriften!
The regulations and safety instructions shall be
valid as provided bythe "Safety" Service Manual,
part number 72010 800 0000, as well as the
respective national deviations.
® Inhaltsverzeichnis
Allgemeiner Teil .
Messgerate / Messmittel ..
Technische Daten
Ausbauhinweise.
Bedienhinweise ..
Schaltplane und
Druckplattenabbildungen 2 -1 2 -
Schaltplane ............
Platinenabbildungen .
Oszillogramme
1
Explosionszeichnung
und Ersatzteilliste 3 -1
Allgemeiner Teil
Messgeréte / Messmittel
DC-Voltmeter, Oszilloskop, Frequenzzahler
Beachten Sie bitte das GRUNDIG Messtechnik-Programm, das Sie
unter iolgender Adresse erhalten:
Table of Contents
General Section.
Test Equipment / Aids
Technical Data
Disassembly instructions
Operating Hints
Circuit Diagrams
and Layouts of the PCB................ 2 -1 2 -
Circuit Diagram
Layout of the P085 .
Oscillogrammes ..
Exploded View and
Spare Parts LIst 3 -1
General Section
Test Equipment / Aids
DC Voltmeter, Oscilloscope, Frequency Counter
Please note the Grundig Catalog "Test and Measuring Equipment"
obtainable from:
Grundig AG, Geschéflsbereich Instruments Test- und Messsysleme, Wiirzburger Str. 150, D-90766 Fiirih
Tel.: 0911 /703-4118; Fax: 0911 [703-4130, eMail: instruments@grundig.de, Internet: htlp:\\www.grundig-inslruments.de
Technische Daten
MPAxx
Kanenschachte 2 x far MultiMediaCards/ROS Cards
Anschliisse....................... ..Kopfhérer 3, 5mm Klinke
USB- Schnlttstelle fiJr Verbindung Zum PC
externes Netzteil
Stromversorgung 2x 1,5V Mignon LRG AA
pie dauer bis zu 14 Stunden)
.20x110x70mm
.. 909
Grthe (H x B x L)
Gewicht (ohne Batterien) .
MultiMediaCard (Kane mit Flashspeicher)
GrdBe (H x B x L)
Gewicht .............. 1,5g
Schockfestigkeit ........ .10009
Wiederbeschreibbarkeit uber 100. 000 mal beschreibbar
ROS Card (Record on Silicon, ROM Karte)
Physikalische Eigenschalten wie MultiMediaCard
Systemvoraussetzungen (Minimum)
Windows: PC mit WINSS/SB/NT40, 5MB freier HD, Grafik
800x600x256 Farben
MacOS: Mac mit USB-Schnittstelle ab System 8.6
Technical Data
MPAxx
Card shafts 2 x for MultiMediaCards/ROS Cards
Connections ................................................. 3.5mm headphone jack
USB interface for connection to a PC
external power supply unit
2x 1.5V Mignon LRS AA
(p aying time up to 14 hours)
20 x 110 x 70mm
.. 909
Power Supply
Dimensions (H x W x D).
Weight (less batteries)
MultiMediaCard (Card with flash memory)
Dimensions (H x W x D).
Weight .....................
Resistance to shocks:
Re-recordability
.1.4x24x32mm
............. 1. 59
.10009
can bem re- recorded over 100,000 times
ROS Card (Record on Silicon, ROM Card)
Physical characteristics same as with MultiMediaCard
System Requirements (minimum)
Windows: PC with WINSS/QB/NT4.0, 5MB free HD, gratic
800x600x256 colours
MacOS: Mac with USB interface from system 8.6 on
GRUNDIG Service
