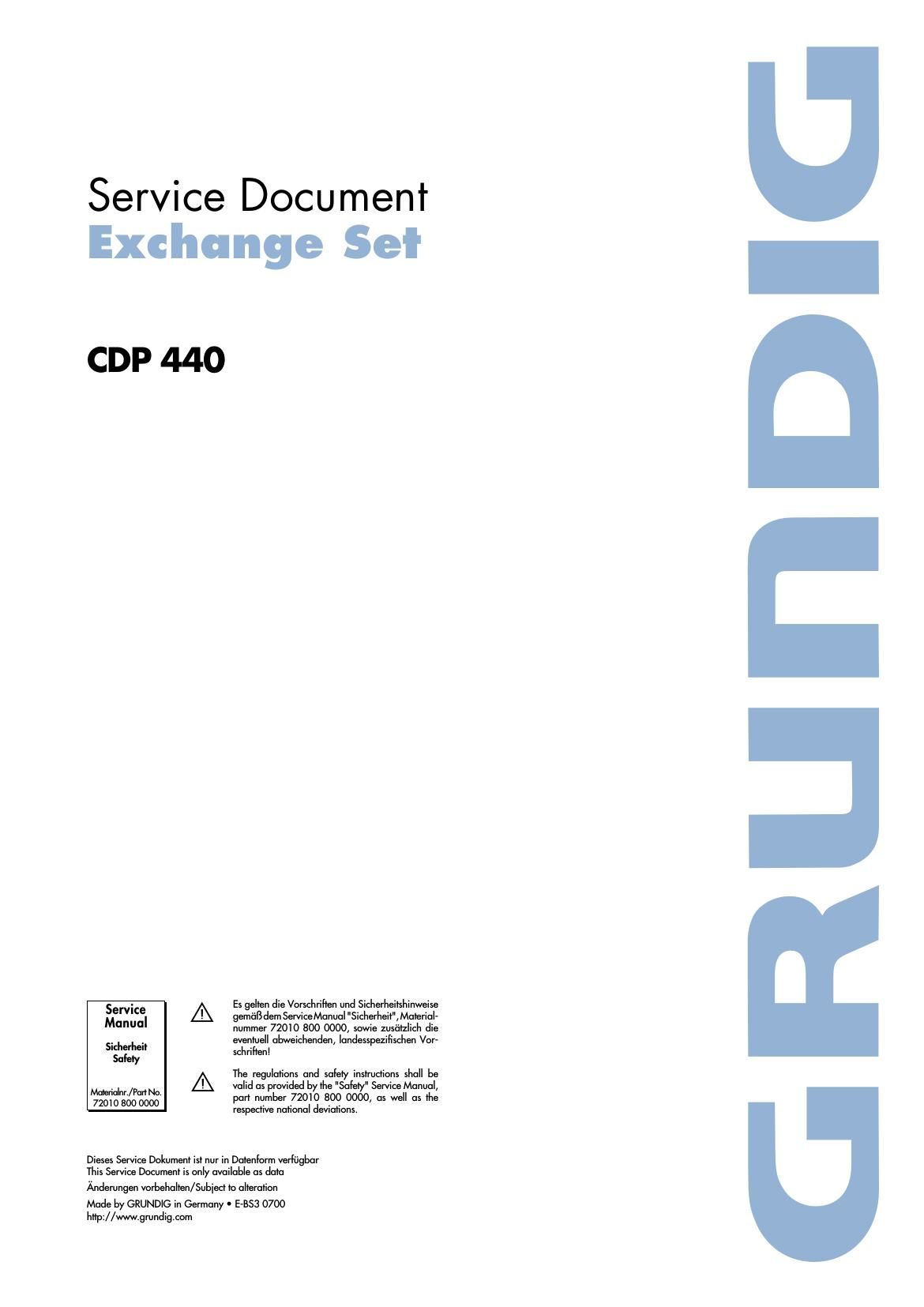

Page 1
Service
Document
Exchange Set
CDP 440
SerVIce| A
Manua
Sicherheit
Safety
Materialnr/Pm Nov A
72010 800 0000
Es gelten die Vorschritten und Sicherheitshinweise
gemaB dem Service Manual "Sicherheit", Material-
nummer 72010 800 0000, sowie zusatzlich clie
eventuell abweichenden, landesspezitischen Vor-
schrilten!
The regulations and safety instructions shall be
valid as provided by the "Safety" Service Manual,
part number 72010 800 0000, as well as the
respective national deviations.
Dieses Service Dokument ist nur in Datenlorm vertfigbar
This Service Document is only available as data
Anderungen vorbehalten/ Subject to alteration
Made by GRUNDIG in Germany ' E-BS3 0700
http://www.grundig.com
GRUI'I-IG
Page 2
Disassembly Instructions
General Hint:
Mark the connectors before pulling them off because they may easily be confused because of the great num-
ber of identical connectors.When reassembling take care, for safety reasons, that the cables are laid in their
original position.
Opening REAR CABINET
-Undo 6 screws ® (Fig. 1)
-Remove the REAR CABINET with CD MECH. & PCB.(Fig. 2)
Fig. 1 Fig- 2
Remove the CD MECHANISM
Disconnect the connector CN1 and CN2 ©(Fig. 3)
-Remove the CD Mechanism.(Fig. 4)
Fig. 3 Fig. 4
GRunDIG CDP 440
