Gemini sound xg 1100 service manual
This is the 24 pages manual for gemini sound xg 1100 service manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Extracted text from gemini sound xg 1100 service manual (Ocr-read)

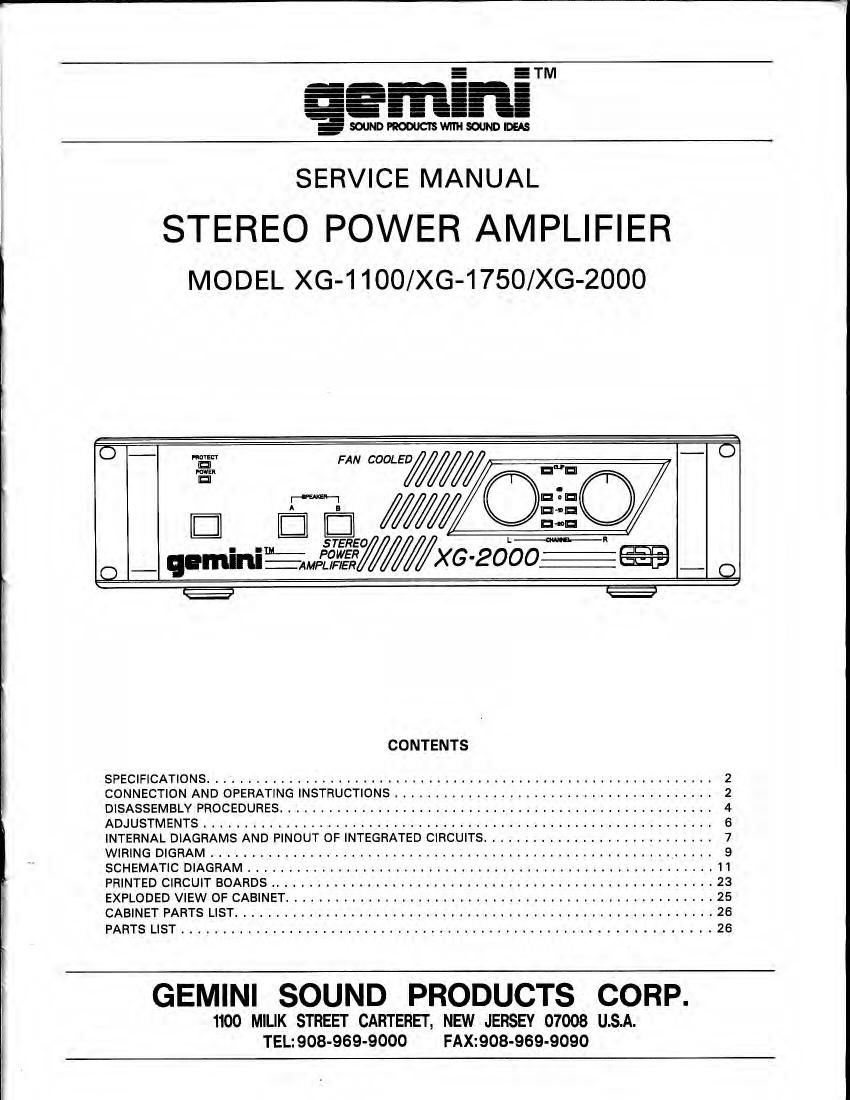

Page 1
E ETM
=----=-_E as: E
-__-= _ === a:
imamwmmm
SERVICE MANUAL
STEREO POWER AMPLIFIER
MODEL XG-1100/XG-1750/XG-2000
E
Egflg
; 2% @2220) :O/ _
__ quminibmifprgflfl/ X6 -2000 _
=
CONTENTS
SPECIFICATIONS .............................................................. 2
CONNECTION AND OPERATING INSTRUCTIONS ....................................... 2
DISASSEMBLY PROCEDURES ..................................................... 4
ADJUSTMENTS .............................................................. 6
INTERNAL DIAGRAMS AND PINOUT 0F INTEGRATED CIRCUITS ............................ 7
WIRING DIGRAM ............................................................. 9
SCHEMATIC DIAGRAM ......................................................... 11
PRINTED CIRCUIT BOARDS ...................................................... 23
EXPLODED VIEW OF CABINET .................................................... 25
CABINET PARTS LIST .......................................................... 26
PARTS LIST ............................................................... 26
GEMINI SOUND PRODUCTS CORP.
1100 MILIK STREET CARTERET, NEW JERSEY 07008 U.S.A.
TEL:908-969-9000 FAX:908-969-9090
Page 2
SPECIFICATIONS
XG-1 100 Momentary Music Peak Power at (Hz : 500 watts
Maximum Power Output (HMS) at 1KHz : 240 watts 8 Q Bridged Mono
120 watts at 4 O
85 watts at B Q
Total Harmonic Distortion : Less Than 0.08% at rated
Power Output into B :1
Frequency Response : 20Hz to 60 kHz (+Ol-3dB)
Signal To Noise Ratio : 98 dB (IEC-A)
Output Section : 4-16 I)
Indicators : Power 81 Protection
Power Consumption : 500 wattsiMax.)
Dimensions : 19"(Lix3 3/4(H)x10 1/2"(D)
483mm(Wi XS4mmIH) x267mmID)
Weight : 19.4 lbs. (8.8Kgs)
Rack : 2.1 U rack spaces
XG-1750 Momentary Music Peak Power at (Hz 2 800 watts
Maximum Power Output IRMS) at 1KH2 : 360 watts 8 Q Bridged Mono
180 watts at 4 Q
125 watts at 8 (1
Total Harmonic Distortion : Less Than 0.08% at rated
Power Output into B (2
Frequency Response : 20Hz to 60 kHz (+0/-3dB)
Signal To Noise Ratio : 98 dB (IECvA)
Output Section : 4-16 0
Indicators 2 Power 8i Protection
Power Consumption : 800 wattsIMax.)
Dimensions : 19"ILIX4 3/8(Hi><10 1/2ID)
483mmIW) x110mmIHi x287mmID)
Weight : 21.4 lbs. (9.7Kgs)
Rack 2 2.5 U rack spaces
XG-2000 Momentary Music Peak Power at lkHz : 1000 watts
Maximum Power Output (RMS) at lKHz : 500 watts 8 Q Bridged Mono
250 watts at 4 n
160 watts at 8 Q
Total Harmonic Distortion : Less Than 0.08% at rated
Power Output into B (1
Frequency Response : 20Hz to 60 kHz (+Ol-3dB)
Signal To Noise Ratio : 98 dB IIEC
Indicators : Power 8: Protection
Power Consumption : 1000 wetts(Max.i
Dimensions : 19"ILIX4 3/8"IH)X10 1/2IDI
483mmIW) x110mm(H) x267mm(D)
Weight : 21.6 lbs. (9.8Kgs)
Rack : 2.5 U rack spaces
CONNECTION AND OPERATING INSTRUCTIONS
2 3 4 5 8 6
O E m cauEWfl :2 ~-
g a D////// 555
O _ gemini:7mf;i:%w///// XG-2000:%% _
%=i
