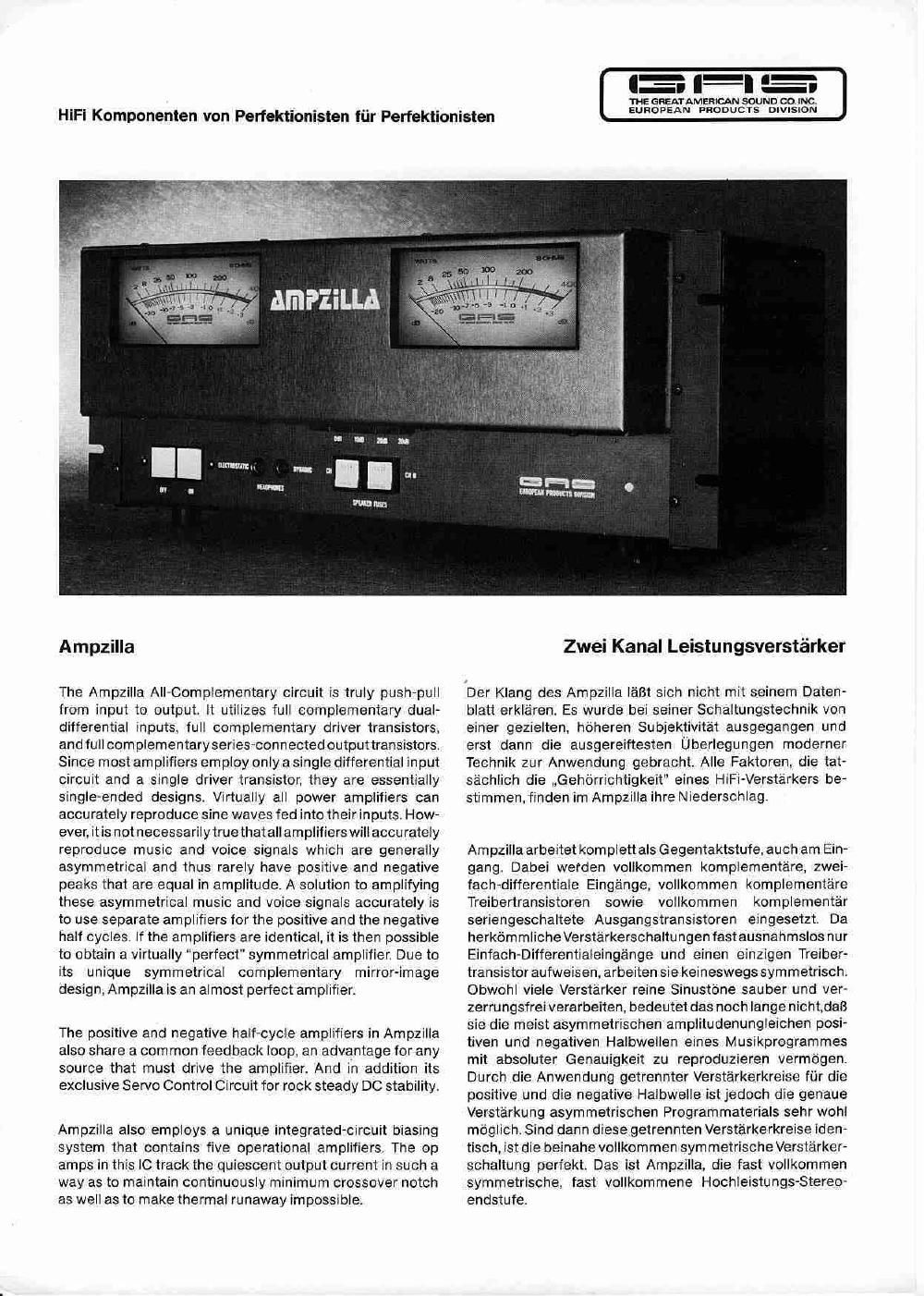

Page 1

HiFi Komponenten von Perfektionisten fiir Perfektionisten

THE GREAT AMERICAN SOUND CO. INC.
EUROPEAN PRODUCTS DIVISION

Ampzilla

The Ampzilla All-Complementary circuit is truly push-pull
from input to output. It utilizes full complementary dual»
differential inputs. full complementary driver transistors,
andfullcomplementaryseries~connectedcutputtransistors.
Since most amplifiers employ only a single differential input
circuit and a single driver transistor. they are essentially
sin9|e~ended designs. Virtually all power amplifiers can
accurately reproduce sine waves fed into their inputs. How-
ever,itis notnecessarilytruethatallamplifierswillaccurateiy
reproduce music and voice signals which are generally
asymmetrical and thus rarely have positive and negative
peaks that are equal in amplitude. A solution to amplifying
these asymmetrical music and voice signals accurately is
to use separate amplifiers for the positive and the negative
half cycles. If the amplifiers are identical. it is then possible
to obtain a virtually "perfect" symmetrical amplifier. Due to
its unique symmetrical complementary mirror-image
design, Ampzilla is an almost perfect amplifier.

The positive and negative half-cycle amplifiers in Am pziila
also share a common feedback loop. an advantage for any
source that must drive the amplifier. And in addition its
exclusive Servo Control Circuit for rock steady DC stability.

Ampzilla also employs a unique integrated-circuit biasing
system that contains five operational amplifiers. The op
amps in this IC track the quiescent output current in such a
way as to maintain continuously minimum crossover notch
as well as to make thermal runaway impossible.

Zwei Kanal Leistungsverstarker

[Der Klang des Ampzilla iaBt sich nicht mit seinem Daten-

blatt erklaren. Es wurde bei seiner Schaltungstechnik von
einer gezielten, hoheren Subjektivit'at ausgegangen und
erst dann die ausgereiftesten Uberlegungen moderner
Technik zur Anwendung gebracht. Alle Faktoren. die tat-
s'a'chlich die ,,Gehorrichtigkeit" eines HiFi-Verstarkers be-
stimmen.finden im Ampzilla ihre Niederschlag.

Ampzilla arbeitet kompiett als Gegentaktstufe. auch am Ein-
gang. Dabei wefden vollkommen komplementare. zwei-
fach-differentiale Eingange, vollkommen komplementare
Treibertransistoren sowie vollkommen komplementar
seriengeschaltete Ausgangstransistoren eingesetzt. Da
herkommlicheVerstarkerschaltungenfastausnahmslos nur
Einfach»Differentialeingange und einen einzigen Treiber-
transistor aufweisen, arbeiten sie keineswegs symmetrisch.
Obwohl viele Verstarker reine Sinust'one sauber und ver-
zerrungsfrei verarbeiten, bedeutet das noch Iange nicht,da6
sie die meist asymmetrischen amplitudenungleichen posi»
tiven und negativen Halbwellen eines Musikprogrammes
mit absoluter Genauigkeit zu reproduzieren vermogen.
Durch die Anwendung getrennter Verst'arkerkreise fur die
positive und die negative Halbwelle ist jedoch die genaue
Verstarkung asymmetrischen Programmaterials sehr wohl
moglich. Sind dann diese getrennten Verstarkerkreise iden-
tisch, ist die beinahe vollkommen symmetrischeVerstarker-
schaltung perfekt. Das ist Ampzilla, die fast vollkommen
symmetrische, fast vollkommene Hochleistungs-Stereo-
endstute.

Page 2

The output stage of Ampzilla operates partially in a class-A
mode, while the driverand slave output stages are operated
class A for the full cycle. Only the driven output transistors
are operated class B. However. these transistors do not
switch from positive to negative. Rather, they traverse back
through the class-A region at the zerocrossing point. This
eliminates the crossover notch customarily found in most
other power amplifiers.

The complementary differential input pairs are supplied
with current by a floating regulator circuit which provides
a delay that eliminates any possibility of sound thumps at
turn-on or turn~oft.

The output stages of the amplifier are full series operated, employing epitaxial-base power transistors
that feature high-frequency response five times that of con-
ventional output transistors.

The powertransformer has a special bilfilarwinding of heavy-
gauge copperwith asquare crosssection.The bifilarwinding
technique locates the center tap exactlyto eliminate ground
loops thus minimizing any evidence of power supply hum.

The main filter capacitors have unusually high capacity
values of 165800st0 thatonly the minimumamountoffeed-
back need be used to optimize the stability factor and also
provide noloss of poweroutputat20Hz.0thercircuitdetails
have been included which provide stable operation even
when driving electrostatic speakers which are equivalent to
a 20}: load.

Augmenting Ampzillas familiar look is the addition of two
headphone jacks on the front panel. One jack accommo-
dates conventional electro-dynamic headphones; the
second jack has higher-voltage output for use with electro-
static headphones.

lnternally. Ampzilla's power transformer is supported by
heavy-duty steel bracing to withstand the most severe
handling and shipping conditions.

Die ftir die positive und negative Halbwelle getrennt vor-
gesehenen Verstarker des Ampzilla werden Liber den glei»
chen Gegenkoppelungskreis mit dem Eingang verbunden,
was bei allen Programmen groBe technische Vorteile mit
sich bringt.

Ein mit filint Operationsverstarkern bestiickter IC zur Rege-
lung des Ruhestromes stellt eine weitere Neuerung des
Ampzilla dar. Minimale Ubernahmeverzerrungen sowie
Schutz vor thermischer Uberlastung der Endstufe werden
durch die standige Uberwachung des Ruhestromes durch
die IC-Operationsverstarker immer gewahrleistet.

Die Stromversorgung des komplementar-difterentialen
Eingangspaares Libernirnrnt ein unabh'angiger Regelschaltr
kreis. der zusatzlich eine Zeitverzogerung zur Unter-
druckung eines eventuellen Einschaltknacks bzw. von Ge-
rauschen beim Ausschalten vorsieht.

Eine gegenijber herkommlichen Leistungstransistoren
fiintfache Steigerung der hochfrequenten Ubertragungs-
grenze erreicht die vollkommen komplementar arbeitende.
mit Epitaxialbasis-Transistoren bestijckte Leistungsend-
stufe des Ampzilla.

Der auBerordentlich massive Netztrafo des Am pzilla weist
eine besondere Bitilar-Kupferwicklung quadratischen
Querschnitts auf, die die Mittenanzapfung der Sekund'ar-
wicklung genau zentriert und somit Brummanteile der Ver-
sorgunsspannung minimiert.

Die Siebkettenelkos des Netzteiis haben den sehr hohen
Wertvon 2 X16800 if (i), womit dieStabilitatdes Verstarkers
sowie volle Leistungsreserve auch bei 20 Hz durch nur
geringe RUCkkoppelung optimiert wird. Die Betriebsstabili-
tat auch bei angeschlossenen elektrostatischen Laut-
sprechern, die eine kapazitatlve Last biszu 20 tlF darstellen,
wird durch weitere besondere schaltungstechnische MaB~
nahmen sichergestellt.

Bezeichnend filir das neue Ampzilla Design sind auf der
Frontplatte die beiden Ausgange fur Kopfhorer. einen fiir
normale elektro-dynamische Kopfhorer, den zweiten mit
hoherer Ausgangsspannung fijr den direkten Betrieb von
elektrostatischen Kopfhorern.

Im Inneren wird der Netztransformator durch besondere
Stahlverstrebungen gehalteh. urn auch extremenTransport-
hedingungen zu widerstehen.

Ampzilla at clipping (240 watts Ft.M.S.) at
20-KHz - Note practically zero recovery time.

Competitive Unit at clipping at 20-KHz -
Note breakup instability and oscillations.
