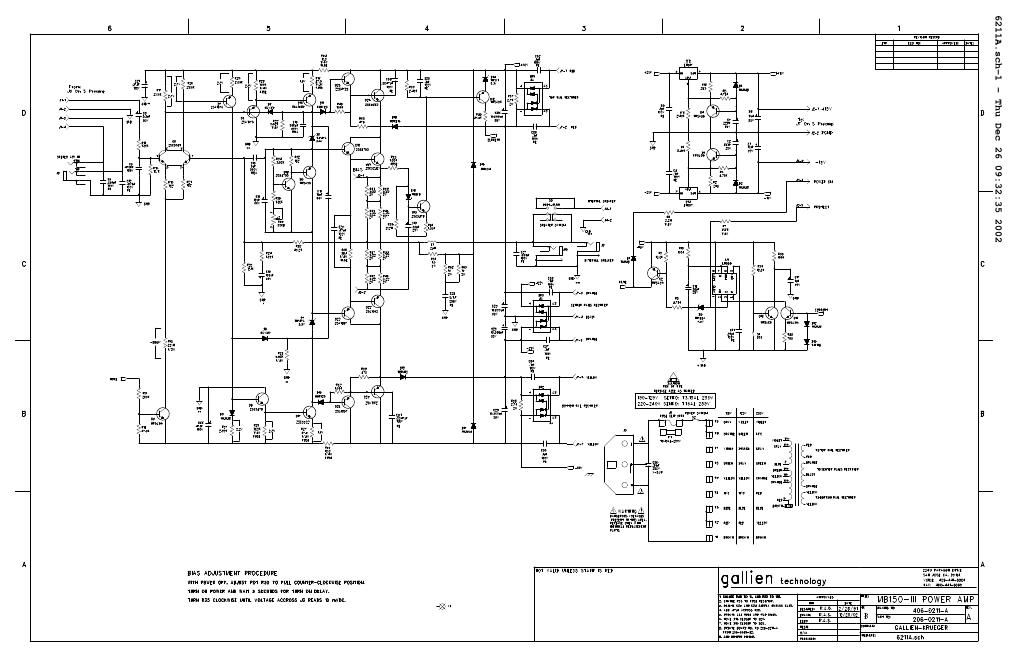

Gallien krueger mb 150 iii mb 150 s e iii power amp service manual

This is the 32 pages manual for gallien krueger mb 150 iii mb 150 s e iii power amp service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 32
left right
gallien krueger mb 150 iii mb 150 s e iii power amp service manual

Extracted text from gallien krueger mb 150 iii mb 150 s e iii power amp service manual (Ocr-read)

Page 1

Part No. Part No.Part No. Part No. Reference ReferenceReference Reference Description DescriptionDescription Description Manufacturer ManufacturerManufacturer Manufacturer Mfr. Part No. Mfr. Part No.Mfr. Part No. Mfr. Part No. 001-2060-0 U1 LM555, TIMER NATIONAL LM555CN 010-0000-0 Q5 2SC3381BL,NPNX2,80V,100MA,2-10M1B TOSHIBA 2SC3281BL 010-0001-0 Q8 Q13 2SC3478, NPN,180V,100MA,TO-92 NEC 2SC3478-K 010-0003-0 Q17 2SC3502-F,NPN,200V,100MA,TO-126 TOSHIBA 2SC3502 010-0012-0 Q1 Q3 Q10-11 MPSAO6, NPN,80V,500MA,TO-92 MOTOROLA MPS-A06 010-1002-0 Q6-7 2SA1376, PNP,180V,100MA,TO-92 NEC 2SA1376-K 010-1003-0 Q16 2SA1380-F,PNP,200V,100MA,TO-126 SANYO/TOSHIBA 2SA1380-F/E 010-1013-0 Q2 Q4 Q9 Q12 MPSA56 PNP 80V 500MA TO-92 MOTOROLA MPS-A56 012-0002-0 Q18-19 Q23 2SC4793,NPN,200V,1.5A,2-10R1A TOSHIBA 2SC4793 012-0003-0 Q21 Q26 2SC5242,NPN,230V,15A,2-16C1A TOSHIBA 2SC5242-O 012-1002-0 Q20 Q24 2SA1837,PNP,200V,1.5A,2-10R1A TOSHIBA 2SA1837 012-1003-0 Q22 Q25 2SA1962,PNP,230V,15A,2-16C1A TOSHIBA 2SA1962 014-0070-0 Q15 LM317 NATIONAL LM317 014-1072-0 Q14 LM337 NATIONAL LM337 020-0004-0 D3 1N755A, ZENER,7.5V,500MW ,D035 TAITRON 1N755A 020-0036-0 D5 D7 1N747A, ZENER, 3.6V, 5%, 400MW, DO-35 TAITRON 1N747A 020-0050-0 D14 1N751, ZENER,5.1V,10%,400MW,DO-35 NATIONAL 1N751 020-1000-0 D1-2 D4 D9 D12-13 1N4148, RECT-FAST, 200MA, 100V MOTOROLA 1N4148 020-1022-0 D6 D8 BAV20, RECT, 200V, DO-35 NATIONAL BAV20 020-1104-0 D15 SHOTTKY, 1A, 40V, 10NS, DO-41 MOTOROLA 1N5819 020-1120-0 D10-11 MUR120,RECT-FAST, 1A, 200V, 25NS, 59-04 MOTOROLA MUR120 020-1122-0 D18-19 MUR410, RECT-FAST, 4A, 100V MOTOROLA MUR410 020-2106-0 D16-17 1N4004,RECT,1A,400V,DO-41 TAITRON 1N4004 023-0005-0 BR1-3 BRIDGE, 4A, 100V, VERT, PC TAITRON TU401 031-1226-0 C2 C7 CAP,ELEC,RAD,226, 20%,25V UNITED CHEMI-CON SRG25VB22RM5X7LL 031-1336-0 C14 C19 CAP,ELEC,RAD,336,20%,25V UNITED CHEMI-CON SRG25VB33RM5X7LL 031-2105-0 C17 CAP,ELEC,RAD, 105, 20%, 50V UNITED CHEMI-CON C440C105M5U5CA 031-2106-0 C1 C8 C16 C18 CAP,ELEC,RAD, 106, 20%, 50V UNITED CHEMI-CON SMG50VB10RM5X11LL 031-2107-0 C10 CAP,ELEC,RAD,107, 20%, 50V UNITED CHEMI-CON SMG50VB101M8X11LL 031-2109-1 C25-26 C28-29 CAP, ELEC, RAD, 10,000uF, -10% +50%, 35V UNITED CHEMICON SMH35VN103M30x30T2 031-2335-0 C3 CAP,ELEC,RAD,335,20%,50V UNITED CHEMI-CON SMG50VB3R3M5X11LL 031-4476-0 C21-22 CAP,ELEC,RAD,476,-10%+50%,100V UNITED CHEMI-CON SMG100VB47RM10X12LL 032-4102-0 C9 C12 C27 CAP,PE,102,5%,100V, PANASONIC ECQB1102JF 032-4103-0 C11 CAP,PE,103,5%,100V, PANASONIC ECQV1103JM 032-4104-0 C4 C6 C20 C32-37 CAP,PE,104,5%,100V, PANASONIC ECQV1104JM 032-4472-0 C31 C38 CAP,PE,472,5%,100V, PANASONIC ECQB1472JF 032-4474-0 C23 CAP,PE,474,5%,100V, PANASONIC ECQV1474JM 032-7104-0 C24 CAP,PE,104,10%, 250V ILLINOIS CAPACITOR 104MSR250K 034-4471-0 C5 CAP,MCR,470pF,5%,100V, TAITRON TMRS471J100NPOB 034-7103-0 C30 CAP, CERMIC DISK, 103, 10%, X-250V PANASONIC ECK-DRS103ZV 035-8030-0 C15 CAP MICA AXIAL , 3pF, 10%, 500V CORNELL CD10CD030D03 035-8561-0 C13 CAP MICA RADIAL, 561, 5%, 300V CORNELL CD15FC561J103 052-2212-0 R4 R7 RES,METAL FILM,2.21k,1/4W,1% ECI M2F1AK002.21 052-5622-0 R22 R25 RES,METAL FILM,5.62K,1/4W,1% ECI M5F1AK005.62 055-.220-0 R39-44 R46-47 RES, METAL OXIDE, 0.22 Ohm, 2W, 5% ECI MOM20J3AJ000.22 055-0101-0 R62-63 RES, METAL OXIDE, 10 OHM, 2W, 5% ECI MOM20J3AJ010.00 055-2702-0 R57-58 RES, METAL OXIDE, 2.7K OHM, 2W, 5% ECI MOM20J3AK002.70 056-0100-0 R61 RES, CERAMIC WW, 1.0, 5W, 10% ECI WWC50J3AJ001.00 059-1000-0 R54-55 RES,MF,FUSE,10.0 OHM, 1/4W,1% JUKN.OHM FR25-10.0 059-1002-0 R26 R28 RES,MF,FUSE,1.00K,1/4W,1% JUKN.OHM FR25-1.00K 059-1002-0 R53 RES,MF,FUSE, 1.00K, 1/4W, 1% JUKN.OHM FR25-1.00K 059-4750-0 R16 R27 RES,MF,FUSE,47.5 OHM, 1/4W,1% JUKN.OHM FR25-47.5 059-6810-0 R38 RES,MF,FUSE,68.1 OHM, 1/4W,1% JUKN.OHM FR25-68.1 060-1002-0 R11 R24 R36 R48 R51-52 RES,METAL FILM, 1.00K, 1/8W, 1% ECI M1F1AK001.00 060-1003-0 R5 R31 RES,METAL FILM, 10.0K, 1/8W,1% ECI M1F1AK010.00 060-1004-0 R19 R33 RES,METAL FILM, 100K, 1/8W, 1% ECI M1F1AK100.00 060-1213-0 R13 R23 RES,METAL FILM, 12.1K OHM, 1/8W, 1% ECI M1F1AK012.10 060-1821-0 R18 R21 R32 RES,METAL FILM, 182, 1/8W, 1% ECI M1F1AJ182.00 060-2002-0 R17 R20 R29 R37 RES,METAL FILM, 2.00K, 1/8W, 1% ECI M1F1AK002.00 060-2004-0 R9 RES,METAL FILM, 200K, 1/8W, 1% ECI M1F1AK200.00 060-2212-0 R56 RES,METAL FILM, 2.21K, 1/8W, 1% ECI M1F1AK002.21 060-2431-0 R2 R12 RES,METAL FILM, 243 Ohm, 1/8W, 1% ECI M1F1AJ243.00 060-2432-0 R1 R10 R50 RES,METAL FILM, 2.43K, 1/8W, 1% ECI M1F1AK002.43 060-3922-0 R34 RES,METAL FILM, 3.92K, 1/8W, 1% ECI M1F1AK003.92 060-4323-0 R30 RES,METAL FILM, 43.2K, 1/8W, 1% ECI M1F1AK043.20MB150-III Power Amp Bill Of Material 206-0211-A MB150-III Power Amp Bill Of Material 206-0211-AMB150-III Power Amp Bill Of Material 206-0211-A MB150-III Power Amp Bill Of Material 206-0211-A 6211A BOM-11/30/2004-Rev B

Page 2

Part No. Part No.Part No. Part No. Reference ReferenceReference Reference Description DescriptionDescription Description Manufacturer ManufacturerManufacturer Manufacturer Mfr. Part No. Mfr. Part No.Mfr. Part No. Mfr. Part No. 060-4751-0 R59-60 RES,METAL FILM, 475 ohm, 1/8W, 1% ECI M1F1AJ475.00 060-4752-0 R3 R6 R8 RES,METAL FILM, 4.75K, 1/8W, 1% ECI M1F1AK004.75 060-4753-0 R14 R49 RES,METAL FILM, 47.5K, 1/8W, 1% ECI M1F1AK047.50 060-7501-0 R45 RES,METAL FILM, 750 OHM, 1/8W, 1% ECI M1F1AJ750.00 061-2213-0 R15 RES ,METAL FILM,22.1K,1/2W,1% ECI M5F1AK022.10 070-0520-0 R35 POT,500B TRIM, 200mW SONG HUEI SH-655MCL-500B 081-0055-0 L1 INDUCTOR,2UH,20A,AIR CORE SCHONBERG 081-0055-0 090-0007-0 S2 SWITCH, 8A/128A,250V,PP,PCB TECX KDC-A04-10-B, B2-F 090-0014-0 S3 SWITCH,PP,DPDT,.5A,BREAK/MAKE,PC MO UE-SWITCH LTBP2UEE-CAU 091-0012-0 F1 FUSE,5mm,T3.15AL,250V,SEMKO LITTLE FUSE 218-3.15 091-1001-0 S1 THRM BRKR, 85C +/-5,0-DIFF, PC KLIXON 7AM-024-A5 092-0001-0 J5 CON, IECX3, 10A, 250V, PC TERM DIHTAIN DTS-0045 092-0066-0 T1-9 FASTON, M, PC, .250" KEYSTONE 1021 092-0079-0 J8 JACK,1/4",STEREO,PC,NON GROUNDING NEUTRIK S203-84 092-0082-0 J9-10 JACK,1/4",MONO,PC, GROUNDING NEUTRIK S102-84G 093-0025-0 J3 HDR,.1X2,VERT,MALE,LOCK,GOLD AMP 641126-2 093-0045-0 J1 HDR, 2MMX4, VERT, LOCK JST B4B-PH-K-S 093-0053-0 J2 HDR, 2MMX5, VERT, LOCK JST B5B-PH-K-S 093-1010-0 J7 HDR,.156X7,VERT,MALE,LOCK,SQUARE MOLEX 26-60-4070 093-1011-0 J4 HDR,.156X2,VERT,MALE,LOCK,SQUARE MOLEX 26-60-4020 094-0004-0 J6 FUSE CLIP, 5MM, 15A, P.C. MOUSER 44FH052 145-0211-A MB150-III POWER AMP BOARD Cos t MB150-III Power Amp Bill Of Material 206-0211-A MB150-III Power Amp Bill Of Material 206-0211-A MB150-III Power Amp Bill Of Material 206-0211-A MB150-III Power Amp Bill Of Material 206-0211-A 6211A BOM-11/30/2004-Rev B
