Page 1
Page 5 of 31 DATASHEET Version 1.2
ICEpower50ASX2
2x50W or 1x170W ICEpower Amplifier
with integrated ICEpower Supply

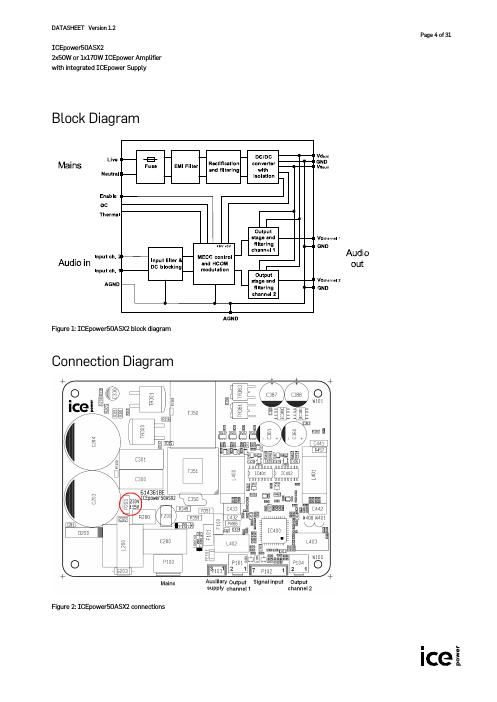

The connector interface of the ICEpower50ASX2 modules has five industry standard connectors se-
lected for long-term reliability.
AC Header Specifications (P100)
Type: JST B2P3-VH
PIN Function
Description Type
1 Live Live AC Input
2 Neutral Neutral AC Input
Table 1: AC connector specifications
Speaker Header Specifications (P101)*
Type: JST B2P-VH
PIN Function
Description Type
1 Vo+ Amplifier output channel 1 Output
2 GND GND channel1 GND
Table 2: Speaker connector specifications
*P101 is not mounted on the BTL-version.
Speaker Header Specifications (P104)
Type: JST B2P-VH
PIN Function Description Type
1 Vo+ Amplifier output channel 2 Output
2 GND in SE
(Vo+ in BTL) GND channel2 * GND*
Table 3: Speaker connector specifications
* This pin is Vo+ (hot) in BTL version and GND in SE version
Signal Header Specifications (P102)
Type: JST B7B-PH-K-S
PIN Function Description Type
7 Vin channel 1 Input signal channel 1 input
6 GND Ground terminal for the signal section. GND
5 GND Ground terminal for the signal section. GND
4 Vin channel 2 Input signal channel 2 Input
3 Thermal Thermal monitoring pin Output*
2 OC Monitor pin amplifier over current Output*
1 Enable Amplifier enable Input/Output*
Table 4: Signal connector specifications
* See Features section on page 18
