Fostex cr 300

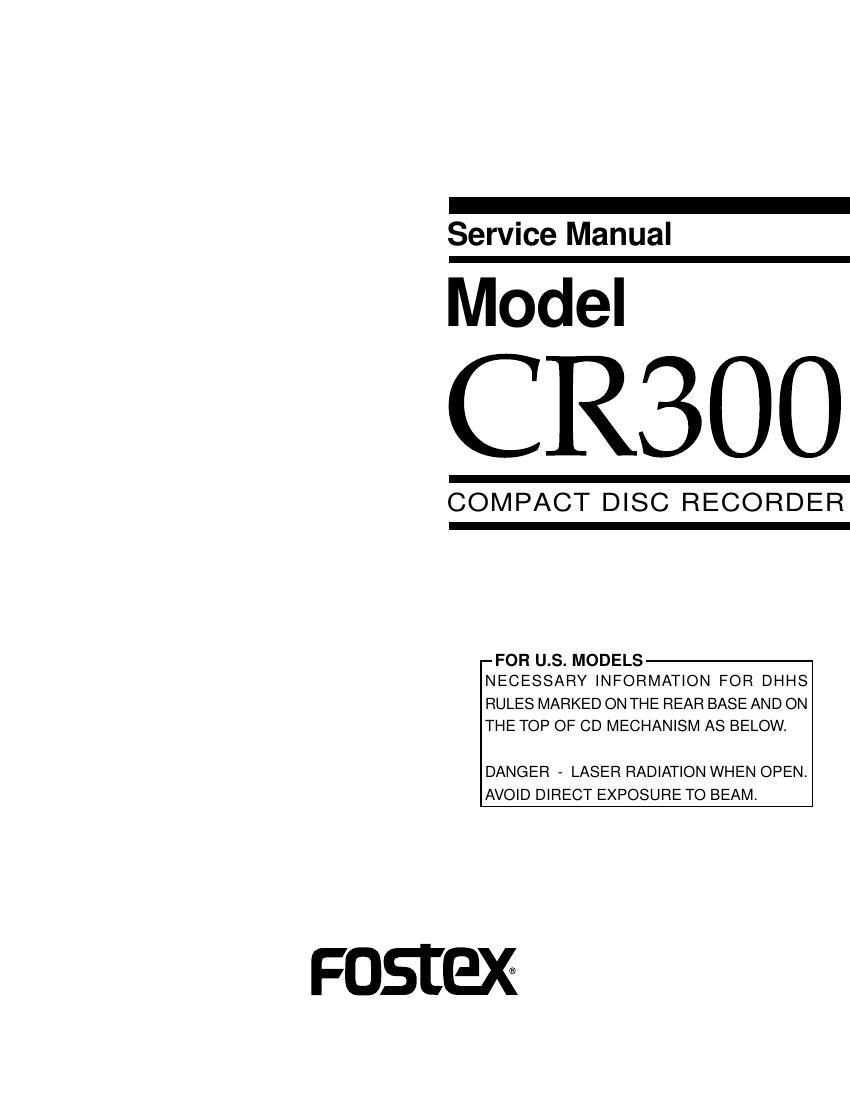

Page 1

Service Manual

COMPACT DISC RECORDER

FOR U.S. MODELS-
NECESSARY INFORMATION FOR DHHS

RULES MARKED ON THE REAR BASE AND ON
THE TOP OF CD MECHANISM AS BELOW.

DANGER - LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM.

FOSLEX

Page 2

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightening flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
dangerous voltage" within the product's en-
closure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOIS-
TURE."

SAFETY INSTRUCTIONS

1.

2.

Read instructions - All the safety and operating instruc-
tions should be read before the appliance is operated.
Retain instructions - The safety and operating instructions
should be retained for future reference.

Heed warnings - All warnings on the appliance and in the
operating instructions should be adhered to.

Follow instructions - All operating and use instructions
should be followed.

Water and Moisture - The appliance should not be used
near water - for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, and the like.

Carts and Stands - The appliance should be used only
with a cart or stand that is recommended by the manufac-
turer.

S

An appliance and cart combination should be moved with
care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to over-
turn.

Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturer.

Ventilation - The appliance should be situated so that its
location or position does not interfere with its proper ven-
tilation. For example, the appliance should not be situ-
ated on a bed, sofa, rug, or similar surface that may block
the ventilation openings; or, placed in a built-in installa-
tion, such as a bookcase or cabinet that may impede the
flow of air through the ventilation openings.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.

ATTENTION:

POUR EVITER LES CHOCS ELECTRIQUES,
lNTRODUlFtE LA LAME LA PLUS LARGE DE
LA FICHE DANS LA BORNE CORRE-
SPONDANTE DE LA PRISE ET POUSSER
JUSQU' AU FOND.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and mainte-
nance (servicing) instructions in the literature
accompanying the appliance.

Heat - The appliance should be situated away from heat

sources such as radiators, heat registers, stoves, or other

appliances (including amplifiers) that produce heat.

Power Sources - The appliance should be connected to a

power supply only of the type described in the operating

instructions or as marked on the appliance.

Grounding or Polarization - The precautions that should

be taken so that the grounding or polarization means of

an appliance is not defeated.

Power Cord Protection - Power supply cords should be

routed so that they are not likely to be walked on or

pinched by items placed upon or against them, paying

particular attention to cords at plugs, convenience recep-

tacles, and the point where they exit from the appliance.

Cleaning - The appliance should be cleaned only as rec-

ommended by the manufacturer.

Nonuse Periods - The power cord of the appliance should

be unplugged from the outlet when left unused for a long

period of time.

Object and Liquid Entry - Care should be taken so that

objects do not fall and liquids are not spilled into the en-

closure through openings.

Damage requiring Service - The appliance should be ser-

viced by qualified service personnel when:

A_ The power supply cord or the plug has been damaged;
or

B. Objects have fallen, or liquid has been spilled into the
appliance; or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or
exhibits a marked changed in performance; or

E. The appliance has been dropped, or the enclosure
damaged.

Servicing - The user should not attempt to service the ap-

pliance beyond that described in the operating instruc-

tions. All other servicing should be referred to qualified

service personnel.
