Fisher FVHP 905 K Service Manual

This is the 57 pages manual for Fisher FVHP 905 K Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 57
left right
Fisher FVHP 905 K Service Manual

Extracted text from Fisher FVHP 905 K Service Manual (Ocr-read)


Page 1

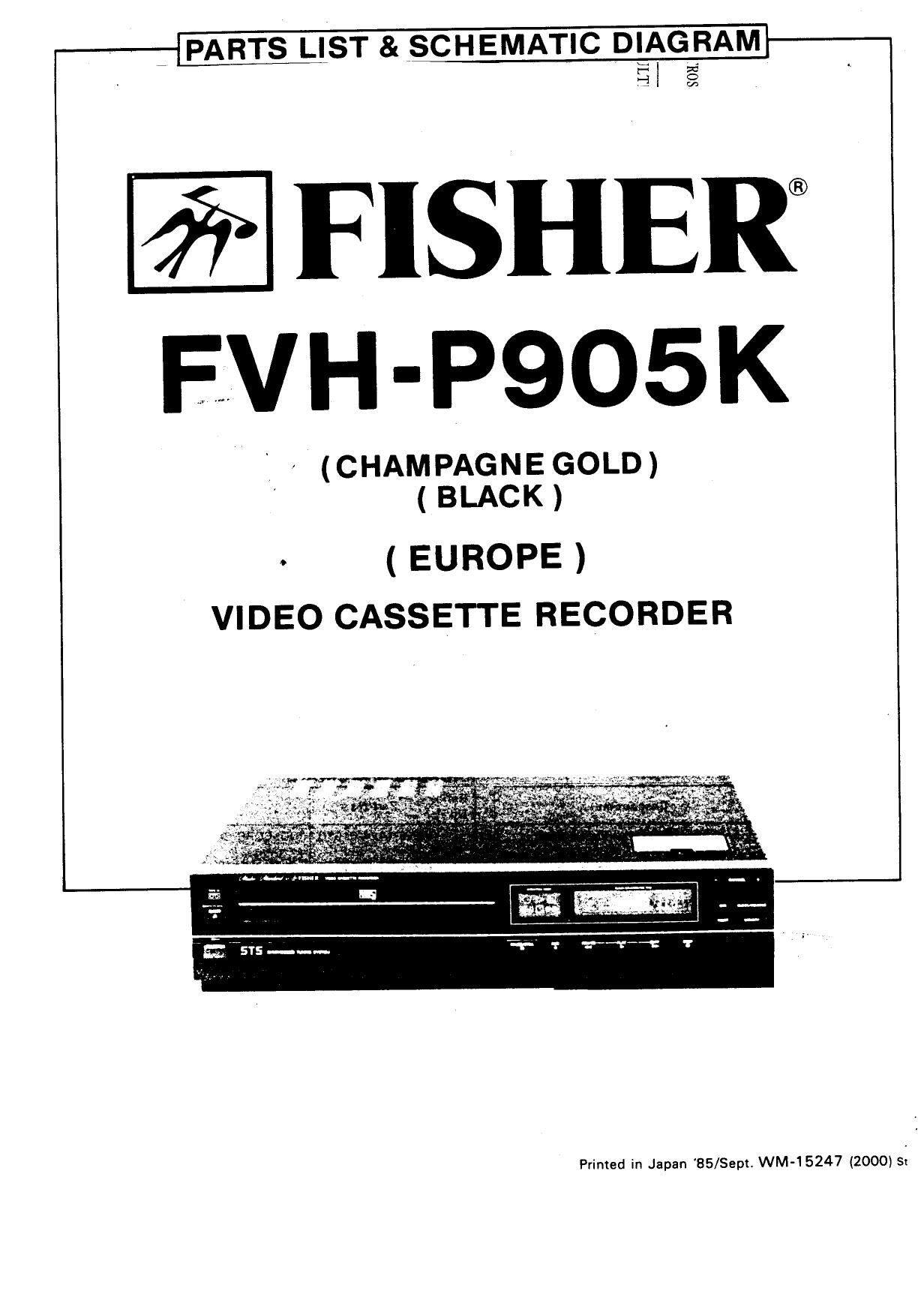

PARTS LIST & SCH EMATIC DIAGRAM
3! E

.FlSHER®
FVH- P905K

C(HAMPAGNE GOLD)
( BLACK)

( EUROPE )
VIDEO CASSETTE RECORDER

Primed in Japan 'BS/Sept. WM-15247 (2000\ St

Page 2

TECHNICAL SPECIFICATIONS

General Specifications
Television system

Recording syste'

Format

Tape WIdth

Tape speed
Recording time
Tape loading system
Tuner

Tuner channels

RF converter output
Time Indication
Timer

Tape counter

Auto rewind system

PAL standard colour (system B Er G) EI CCIR
monochrome signals 625 lInes

Rotary helical scan system With two video
heads one stationary head for normal track
monaural sound

VHS PAL standard

12.7 mm

23.39 mm/sec.

240 minutes with E-240 cassette
Automatic loading

Voltage synthesizer tuner with sequential
channel selection.

Channel Up (1") / Down (-) selection with
remote control

30 programme memories

VHF: #2-#12. 51-523

UHF: #21 -#69

UHF channel 36 (30-39 adjustable)
24-hour display system

14-day / 2 programme

Separate 4-digit electronic display
Activated at end of tape

Terminals

AerIal

RF output

Video input/output
Audio input/output

Video output
Video input
Audio output
Audio input
Video S/N ratio

Audio S/N ratio

Other Specifications
Power requirement
Power consumption
Dimensions [WXHXD)
Weight

Electrical Specifications

Audio frequency response

DIN (socket)
DIN (plug)
RCA connector
RCA connector

1 volt (pp) / 750

0.5-2.0 Volt (pp) / 75m

316 mV (-10 dBV) / Goon
316 mV (-10 dBV) / 50k!)

45 dB

50-10000 Hz (normal sound)
42 dB

220VAC. 50H:

32 Watts

440mm X 99mm X 365mm
7.3 Kg (approximate)

FISHER reserves the right to modify product designs and specifications without notice and without incurring any obligation.

PARTS LIST

PRODUCT SAFETY NOTICE
The components designated by a symbol(A) in this schematic diagram designates components whose value are of speCIal
significance to product safety. Should any component designated by a symbol need to be replaced, use only the part
designated in the Parts List.
Do not deviate from the resistance, wattage and voltage ratings shown.

ACCESSORIES

PACKING MATERIALS

Ref

No Part No

Description

Ref

Part No.
No

Description

143-6-2704-41300

143-6-2704-39400

143~6~2714~00700
4-1 924-01080

44924-00960

4-2394-00030
or 4439400035

14362 704-39500
143-6-2714-00200
143-6411445600
143-6-41 24.1 3500
143-6-4724-02700

FAN BAG ASSY(ACC)(PIastic Bag)
(C.Gold)

FAN BAG ASSYIACCHPIastic Bag]
(Black)

ENVELOPE-HAG

WIRELESS REMOTE CONTROL
RC-905F (C.Gold)

WIRELESS REMOTE CONTROL
Rc-sosa (Black)

CONNECTOR CABLE DIN
CONNECTOR CABLE DIN

FAN BAG ASSVlMANUALMPIastIc Bag)
ENVELOPE

INSTRUCTION MANUAL
INSTRUCTION CARD

CAUTION SHEET-SE

143-6-1424-01910
143-6-1424-01901
143-6-2514-02500

143-6-3114-03300
143-6-3114-03400

IND. CORR CARTON-EWPBOSKE
(C.Gold)

IND. CORR CARTON»EWP905K
(Black)

IND. POLY COVER~HAR

TOP. INNER CUSHION-HAR
BOT. INNER CUSHION-HAR

NOTE: Parts order must contain Model Number. Part Number and Description
