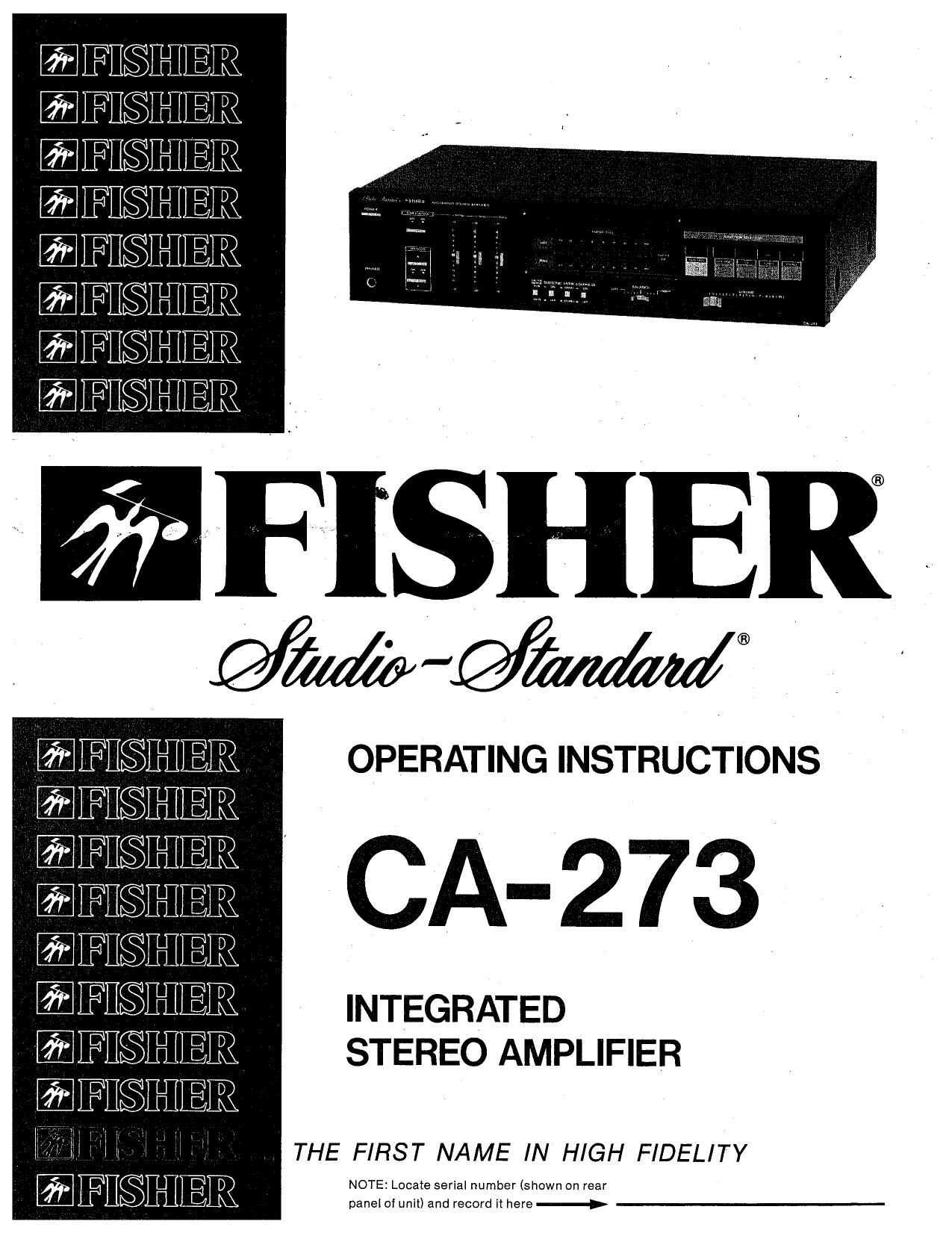

FISHER CA-273
SPECIFICATIONS
POWER AMPLIFIER SECTION
Minimum RMS sine wave power per channel
CAU Tlo I withln stated bandwldth at no more than
RISK 01: 591mg stated distortion and with 8 ohm load 1 00 Watts
SHOCK- 9 or 0m Power Bandwidth 20 Hz-zo kHz
TotaiHarmnnlc Distortlon Q09 la
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, l M D t' O 09 %
DO nor REMOVE COVER. 5 ° '°" '
NO USER-SERVICEABLE PARTS INSIDE. Speaker Damplng V > 20
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. PREAMPLIFIER SECTION
Frequency Response
Phone (RIAA) 10.5 dB
Aux(20 Hz-20 kHz) tOISdB
This symbol indicates that dangerous voi- '"°§:::g"/iy (impedance 2 5 rnV/so kn
tage constituting- a risk of electric shock is Tape Monitor 150 mVIso kn
present within this unit. . Tuner/Aux 150 mv/so kn
Phone Max. lnputCapabiiity 125rnV
This symbol indicates that there are impor- T°ne1cggml iiOdB
tant operating and maintenance instructions 1 kHz :10 dB
in the iiterature accompanyingthis unit. 10kHz :10dB
Subsonic Filter (Beiow 20 Hz) 7 12 dB/Oct.
- Loudness Contour (100 Hz/1 0 kHz) +5 dB/+4 as ,
Hum and Noise (IHF ShortCircuit, A Network)
Phono - 70 dB
TaDe Monitor 90 dB
Tuner/Aux 95 dB
GENERAL
Power Requirements 1'20VAC1-10%
(50/60 HZ) 470 Watts
AC Outlets 3
- ,1 " A .. I, . DImensiofis-tWXHXD) ,\ ,17-1/3" x4-1/B X10~1/2 , i
v Weight(approx.) 17.41nsv
Because its products are subject to continuous im-
provement, Fisher Corporation reserves the right to
modiiy product designs and specifications without
notice and without incurring any obligation. _
WARNING: To A VOID THE HAZARDS OF FIRE OR ELECTRICAL SHOCK DO NOTEXPOSE THIS APPLIANCE
TO RAIN on OTHER MOISTURE
2
