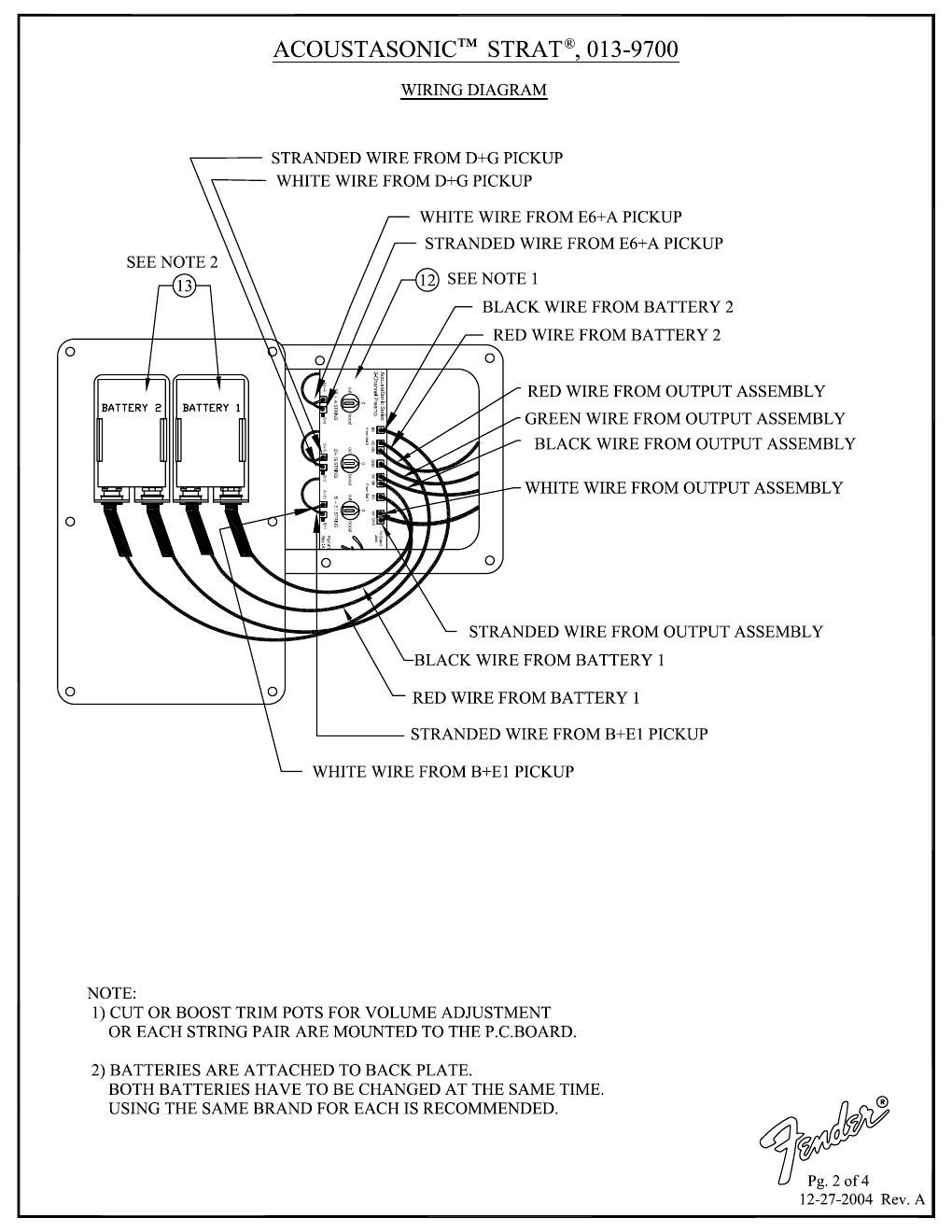

ACOUSTASONICTM STRAT®, 013-9700

WIRING DIAGRAM

STRANDED WIRE FROM D+G PICKUP
WHITE WIRE FROM D+G PICKUP

WHITE WIRE FROM E6+A PICKUP

STRANDED WIRE FROM E6+A PICKUP

SEE NOTE 2
13 12 SEE NOTE 1

BLACK WIRE FROM BATTERY 2
RED WIRE FROM BATTERY 2

O

V I
BATTERV E BATTERY 1

BLACK WIRE FROM BATTERY 1

0 RED WIRE FROM BATTERY 1

WHITE WIRE FROM B+E1 PICKUP

NOTE:
I) CUT OR BOOST TRIM POTS FOR VOLUME ADJUSTMENT
OR EACH STRING PAIR ARE MOUNTED TO THE P.C.BOARD.

2) BATTERIES ARE ATTACHED TO BACK PLATE.
BOTH BATTERIES HAVE TO BE CHANGED AT THE SAME TIME.
USING THE SAME BRAND FOR EACH IS RECOMMENDED.

STRANDED WIRE FROM B+E1 PICKUP

RED WIRE FROM OUTPUT ASSEMBLY
GREEN WIRE FROM OUTPUT ASSEMBLY
BLACK WIRE FROM OUTPUT ASSEMBLY

WHITE WIRE FROM OUTPUT ASSEMBLY

STRANDED WIRE FROM OUTPUT ASSEMBLY

Pg. 2 of4
12-27-2004 Rev, A
