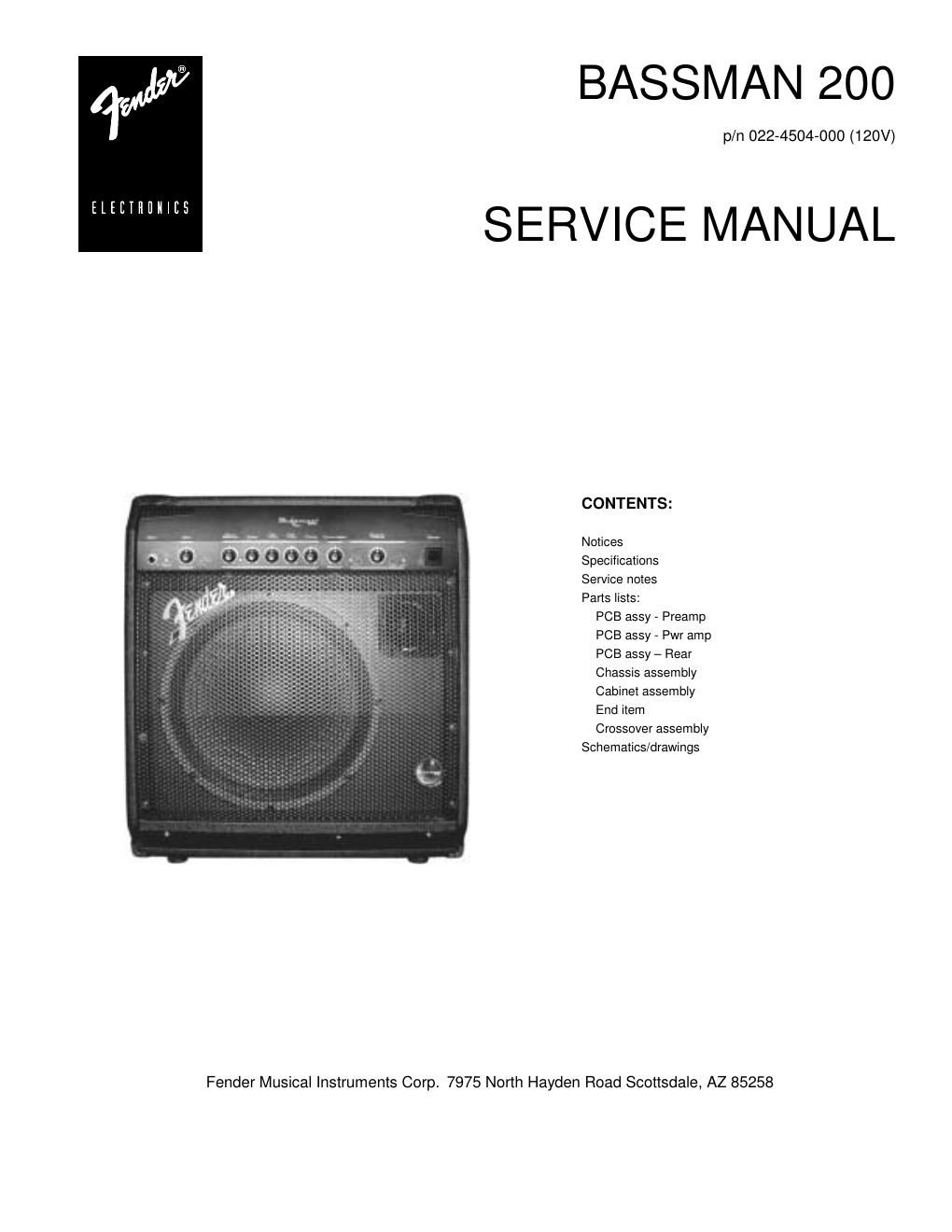

BASSMAN 200
(This is the model name for warranty claims)
SERVICE MANUAL
SEPTEMBER 2000
IMPORTANT NOTICE:
The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is
disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be
disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to
change without notice.
For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used
for post-warranty maintenance and repair.
Parts marked with an asterisk (
*) indicate the required use of that specific part. This is necessary for RELIABILITY and
SAFETY requirements. DO NOT USE A SUBSTITUTE!
A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows:
CAPACITOR CODES HARDWARE CODES
CAP AE = Aluminum Electrolytic BLX = Black Oxide
CAP CA = Ceramic Axial CR = Chrome Plated
CAP CD = Ceramic Disk HW H = Hex W asher Head
CAP MPF = Metalized Polyester Film M = Machine Screw
CAP MY = Mylar NI = Nickel Plated
CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips
PB = Particle Board
RESISTOR CODES
PHP = Pan Head Phillips
PHPS = Pan Head Phillips Sems
RES CC = Carbon Comp SMA = Sheet Metal "A" Point
RES CF = Carbon Film SMB = Sheet Metal "B" Point
RES FP = Flame Proof SS = Stainless Steel
RES MF = Metal Film TF = Thread Forming
RES W W = W ire W ound ZI = Zinc Plated
Page 2
BASSMAN 200
SPECIFICATIONS
Product Release No.:PR 419 (This is not a model number)
Part Number:120V Version : 22-4504
240V Aus : 22-4534
230V UK : 22-4544
230V Eur : 22-4564
100V Jpn : 22-4574
Power Requirements:540W
Power Amp Section:
Power Output:200 Watts RMS into 4-„¦ @ <1% THD
Sensitivity:1V RMS
Preamp Section:
Input impedance:Passive: 1M-„¦Active: 1M-„¦
Sensitivity At
Full Power:Passive: 20mV Active: 40mV
Nominal Level:Passive: 150mV Active: 300mV
Tone Controls:Bass:±15 dB @ 50 Hz
Treble:±15 dB @ 5 kHz
Room balance:±10dB, crossover frequency: 350Hz
Effects Loop:
Send impedance:1k-„¦
Return impedance:22k-„¦
Nominal level:+4dbu
Speakers:Fender special design 4-„¦ 15" woofer (P/N 0048941000)
One Foster 8-„¦ Horn (P/N 0048847000), FUSE: 2A 250V
Dimensions:Height: 25.5" (65 cm)
Width: 23" (59 cm)
Depth: 13" (33 cm)
Weight:65 lbs. (30 kg)
Product specifications are subject to change without notice
Semi-parametric control:
Mid frequency: 150Hz to 1.5kHz
Mid level:±15 dB @ Mid frequency setting
