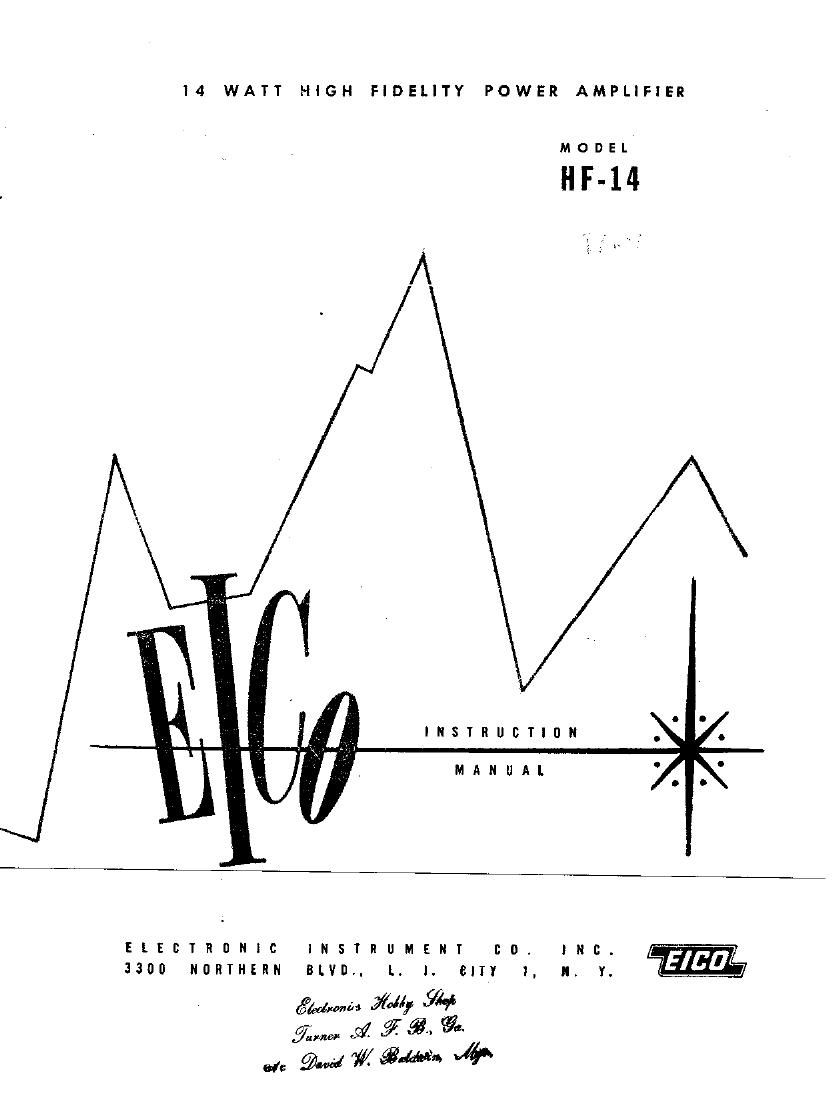

14 WATT HIGH FIDELITY POWER AMPLIFIER
MODEL
-14
INSTRUCTION
MANUAL
ELECTRONIC INSTRUMENT co. rue. @
3300 NORTHERN aLvn.. L. I. em 1, IL Y.
(gammmfiollfyfi
filly/mm g y g" 9%.
a W 71/an V0
GENERAL
The EICO HF-H is a M watt high fidelity buic power
amplifier employing two ELB4 output tubes in push-pull
and a high quality output transformer. The high power
sensitivity of these remarkdaly fine tubes eliminates the
necessity for additional driver stages, permitting the use
of a large unountofinveue feedbackwlth a high stability
margin. The lower operating voltages required and the
use of £281 rectifier tube having a warm-up characteris-
tic exactlymatched tothe output tubes, result in a power
supply of exceptional reliabilityas wellas extended out-
put tube life. Filter electrolytic: and the rectifier oper-
ate well below maximum ratings and voltage surges at
starting are eliminated.
The HF-l4has been designed to maintain its excellent
SPECIFICA'IIONS
Rated Outflt Power: M watts continuous, 28 watts peak.
characteristies under speaker load (inducing electrostatic
types) a well as the resistive load normdlyused For test-
lns. lhase corrections have been provided at both ex-
tremes of the audio spectrum to insure Mility under all
conceiVable conditions and to insure that variations in
components and constmction will not (feet the perfor-
mance. Stdaility is maintained on all speaker tops with
loads ranging From zero to infinity. Ova'load character-
istics are excellent and the HF- l4wil| notexhlbit bounce
or flutter under pulsed conditions.
The HF-l4can be operated from any preanpllfler control
unit. A power take-0F? socket is provided for powering
the EICO HF-65A or HF-oiA preanplifier control. Other
features include a panel mount fuse holder, switched md
unswitched convenience outlets, and heavy gauge ced-
nIiurn plated steel chassis finished in bdoed enamel.
lM Distortion léocE 8- 7k: at 4: l): 1.7% at 14 watts, 0. 33% at 26 watts, 0.1% at 4 watts.
Harmonic Distortion: 8 watts less than 1% From 30: to 'lOkc.
10 watts: less than 1% from 40: to Nike.
14 watts: less than 1% from 50: to 5kc.
20c distortion: 2% at 4. 2 watts.
Transient Rosana: excellent square wave reproduction (4usec rise time); negligible ringing, rapid settlirg on Win:
square wave.
Inverse Feedback: 20db
Stobllitz Margin: lZdb
Damping Factor: above 8, 20cps to 20k:.
Sensitiviil: l. 25 volts for 12 watts output.
Hum: 90db below rated output
Speaker Connections: 4, 8, and 16 ohms.
Tubes: 1- ECCBa/12AX7, 2- ELM, I- can
Power Source: 117 volts, 60cm.
Power ConsumEtion: 65 watts
Size: HWD: 3 3/ " x12"x 4".
Shipping Weight: 10 lbs.
