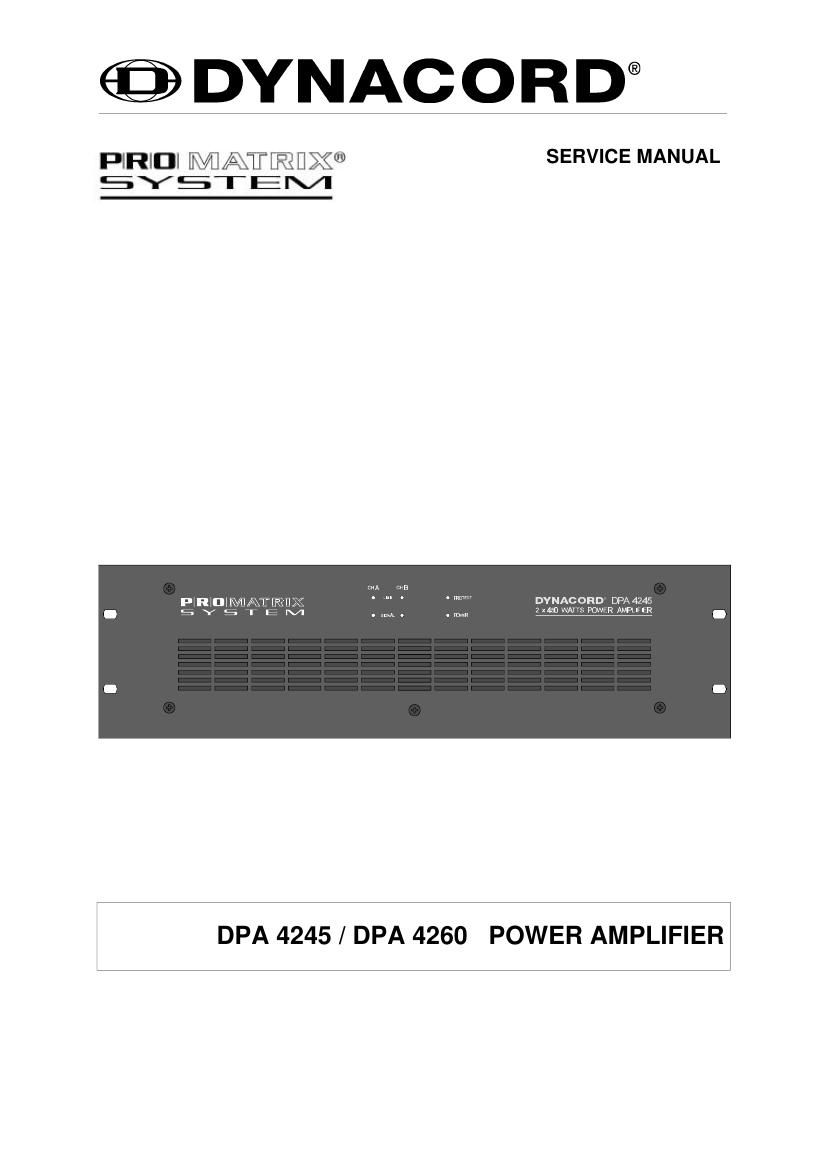

Dynacord DPA4245 4260 pwr sm

This is the 29 pages manual for Dynacord DPA4245 4260 pwr sm.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 29
left right
Dynacord DPA4245 4260 pwr sm

Extracted text from Dynacord DPA4245 4260 pwr sm (Ocr-read)


Page 2

MEASUREMENT SPECIFICATIONS: DPA power amplifiers complete appliance

Names of the individual printed board assemblies and their corresponding EDP numbers:

EDP numbers of the main boards
DPA 4245 DPA 4260
84 188 84 189

Board section Index
Main PCB 1

Su 1 PCB 4
LED PCB 3

Input-PCB (index 1) and Output-PCB (Index 2) are located on the printed board assembly 81340.

Measuring conditions, unless differently specified:

- measuring tolerance: X = liSdB
- measuring frequency: f = lkHz
- all stated levels refer to: U = 775mV (OdBu)
- level controls are set to their clockwise margin:
- XLR connector pin-assignment: PIN 1 = GROUND/SHIELD
PIN 2 = + INPUT
PIN 3 = - INPUT
- source impedance for the induction via the XLR-type connector: R(Q) = 50 ohms
- the AMPLIFIER PCB is provided with service connectors:
CNSl CNSZ CNRC
PIN Assigned to PIN Assigned to PIN Assigned to
1 -Vcc 1 LIM A Switch 1 LIM Out A
2 BIAS +A 2 -15V 2 LIM Out B
3 BIAS -A 3 LIM B Switch 3 Standby via RC
4 FAN Voltage 4 +15V 4 Standby LED
5 +Vcc 5 AGND 5 -Vss
6 BIAS +B 6 Speaker Out A 6 +Vss
7 BIAS -B 7 Relay/Protect 7 nc
8 Temp Heatsink 8 Speaker Out B 8 nc
- Pin-assignment of the power amplifiers output connector:
PIN Function Channel

l + pole of the 100V output and + pole of the 25V output

2 - pole of the 25V output and + pole of the 70V output

3 - pole of me 70V output and - pole of the 100V output B
4

5

+ pole Direct Output
- pole Direct Output

6,7 not assigned -
8 - pole Direct Output
9 + pole Direct Output
10 - pole of the 70V output and - pole of the 100V output A
ll - pole of the 25V output and + pole of the 70V output
12 + pole of the 100V output and + pole of the 25V output
Pin-assignment of the Power Remote connector: PIN 1 control voltage -

PIN 2 control voltage +
