Dynaco Stereo 120 Owners Manual

This is the 24 pages manual for Dynaco Stereo 120 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 24
left right
Dynaco Stereo 120 Owners Manual

Extracted text from Dynaco Stereo 120 Owners Manual (Ocr-read)

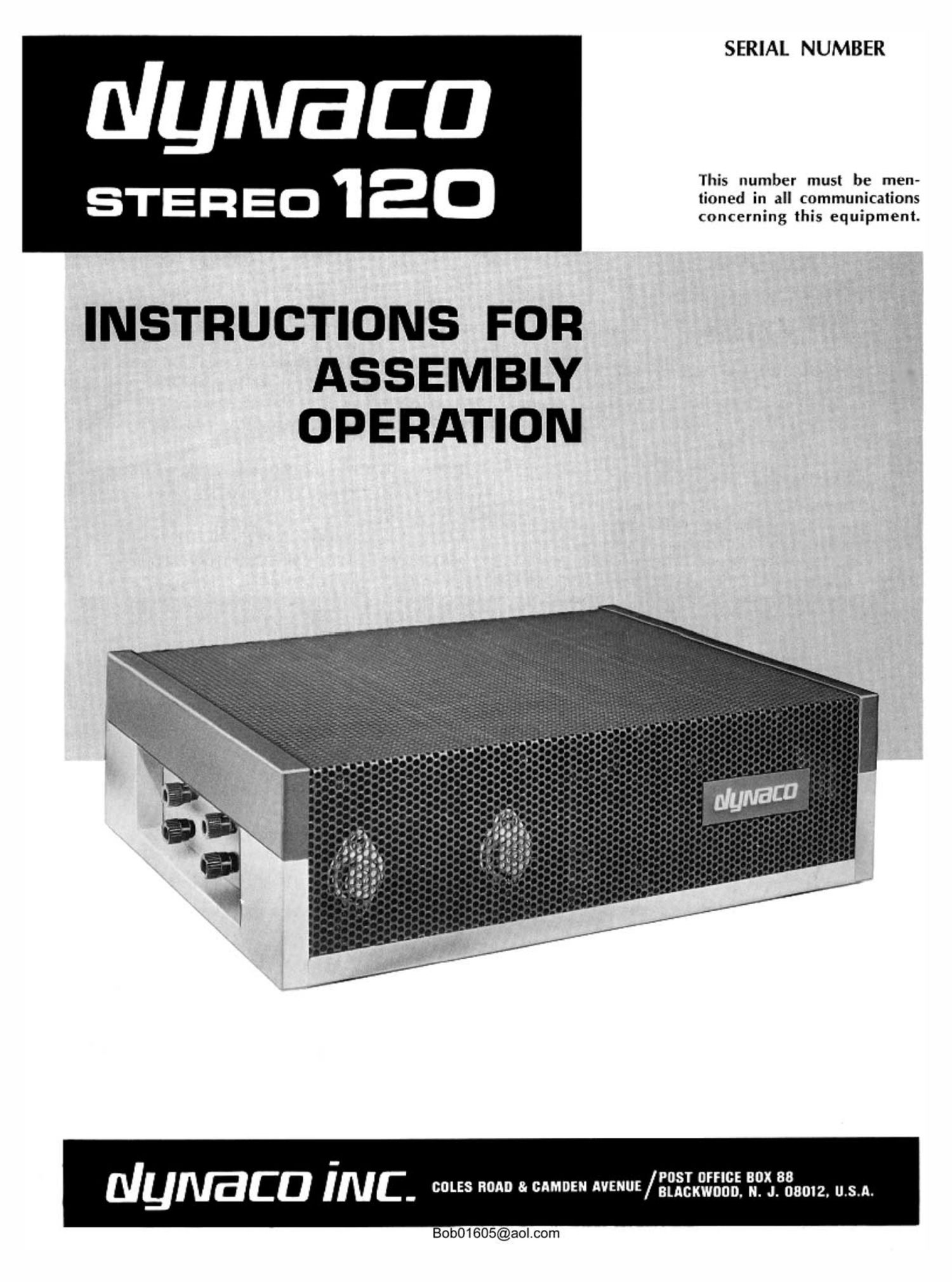

Page 1

SERIAL NUMBER

NyNa CD

This number must be men-
5 I E E0 lioned in all communications
concerning this equipment.

INSTRUCTIONS FOR
ASSEMBLY
OPERATION

POST OFFICE aux 83
diED INC- MS 0 3' 05" "ENuE/BLACKWOOD. n. J. 08012. U.S.A.

Bob01605@aol.com

Page 2

CONTENTS

Operating Instructions ...................... 3 Assembly Instructions ................ ..... * '7::_ .
Technical Information ...................... 5 Schematic Diagram ....................... .. . 12
Circuit Description ..................... 5 In Case of Difficulty . . . . . .. . .. . . . . . . . .; ..... 19;,{1'
Performance Testing ............. . ..... 5 Service information for the Technician ......... '. 20;33_
Dynaco Preamplifiers ................... 6 Factory Service and Warranty ................ ,, '22»
4-Dimensional Sound System ............ 6 Pictorial Diagram ............ Back Cover Foidoot i,
240 Volt Conneclions ,,,,,,,,,,,,,,,,,,, 7 Parts LIST ........................... Back Cover * I
SPECIFICATIONS

FREQUENCY RESPONSE: 5 Hz to 100 kHz $0.5 db. NOISE: 95 db below rated output unweighted with

POWER OUTPUT RATING' 60 watts avenge con- shorted input; 100 (lb down by IHF standards.
{inuous poxver per channel in) 8 ohms at any DAMPING FACTOR: Greater than 40 from 20 HZ to

frequency between 25 Hz and 15 kHz at iess than 20 kHz.
0.5% total harmonic distortion. Distortion de SEPARATION: More than 70 db from 20 Hz to 20
creases at lower power levels. This is in accord- kHz

ance with F.T.C. rating requirements, including

preconditioning. INPUT: 100 000 ohms; 15 volts tor 60 watts output

SEMICONDUCTOR COMPLEMENT: 15 transistors;
INTERMODULATION DISTORTION: Less than O.5°/o 15 diodes.

at any power level up to 60 watts per channel . , . I _n .. i, _
intoBohms with any combination of test frequen' SIZE' I3 x 10 A x 4 ' WEIGHT' 20 35'

cies. Distortion reduces at lower power levels. MAXIMUM POWER CONSUMPTION: 400 watts.

100 Hz lkHz 10 kHz

SQUARE WAVE PERFORMANCE: This is a good indication of linearity from
10 Hz to 100 kHz. since good square wave reproductiOn requires bandwidth
in excess of 1.." 10th to 10 times displayed frequency.

2 kHz 20 kHz TONE BURST:

4 cycle 20 kHz through amplifier at 60
watts is indistinguishable from gener-
ator (below).

INPUT-OUTPUT LINEARITY AT 60 WATTS
