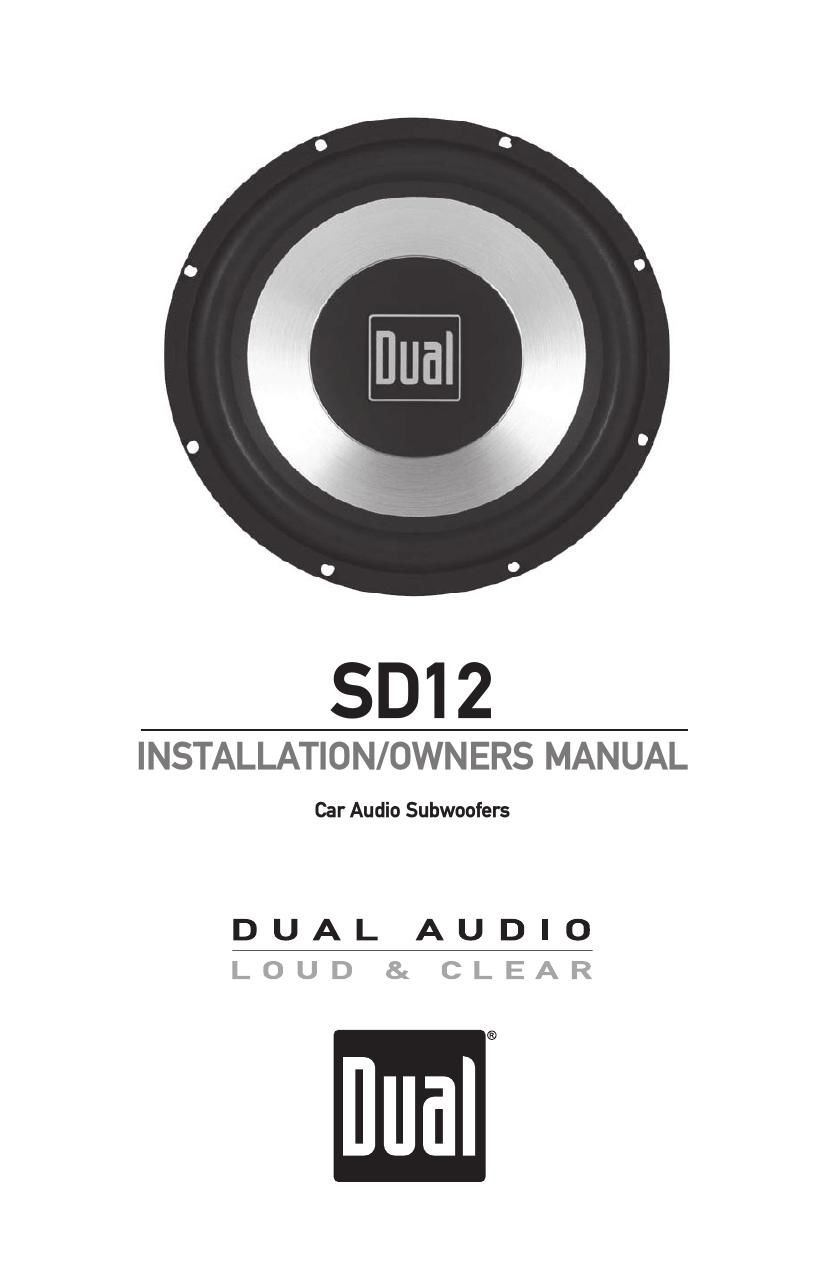

Dual SD 12 Owners Manual

Page 1

2 SD12 PREPARATION Getting Started Safety This symbol is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage. To prevent injury and damage to the unit, please read and follow the instructions in this manual. If you feel unsure about installing this system yourself, have it installed by a qualified audio technician. Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury. Thank you for purchasing a Dual SD12 subwoofer. Although Dual has attempted to make sure all of the information contained within this manual is accurate, please be aware that any part of it is subject to change without notice. CAUTION CAUTION CAUTION CAUTION

Page 2

3 SD12 INSTALLATION Installation The following installation instructions are very basic. If you feel unsure about personally installing this speaker system, Dual recommends aquiring the services of a professional car audio installation center. CAUTION Before installation, please follow the following rules: 1. Be sure to carefully read and understand the instructions before attempting to install this product. 2. For safety, disconnect the negative terminal from the battery prior to beginning the installation. 3. For easier assembly: If additional wiring is required, we recommend running all wires prior to mounting your speaker in place. 4. Use the highest quality connectors for a reliable installation and to minimize signal or power loss. 5. Use caution before you drill or cut! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle. 6. Never run speaker wires underneath your vehicle. Running speaker wires inside the vehicle provides the best protection from exhaust heat and environmental elements. 7. Avoid running wires over, near, or through sharp edged surfaces. We suggest you also use rubber grommets to protect any wires routed through metal, especially the firewall.
