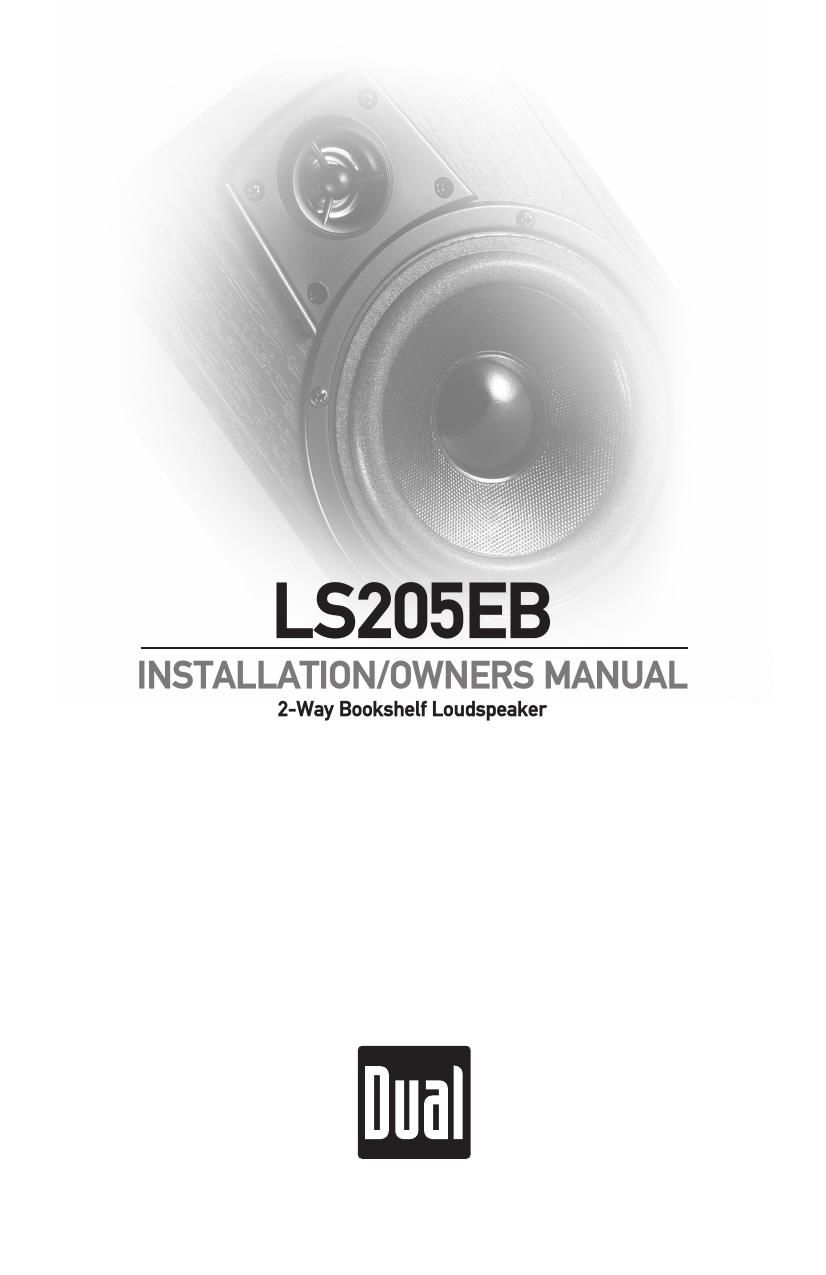

Dual LS 205EB Owners Manual

Page 1

2 LS205EBINTRODUCTION Introduction Thank you for your purchase of the DUAL LS205EB loudspeaker. Dual speakers are designed and manufactured to deliver refined musical sound and provide true home theater excitment. Dual audio products are constructed using the finest quality components and we are pround of our custom designed drivers that provide you with clarity, balance and superior response. Every DUAL loudspeaker undergoes rigorous testing and quality controls at the factory to ensure you years of listening pleasure. Please take a moment to read this manual prior to installing your new speakers. The information provided will help you obtain maximum performance from your new DUAL speakers. For simplicity, we will call your AV receiver, or amplifier the receiver. Dual speakers are designed for indoor use only. It is important to turn off the power to your receiver before connecting the speakers to your system. Introduction Important

Page 2

3 LS205EB PLACEMENT Placement The DUAL LS205EB can be placed in any convenient location in your home - as stereo pairs on either side of your receiver - as surround speakers in home theater surround sound systems that include a subwoofer - or as remote speakers. You should experiment with various placements. Room acoustics can produce large apparent differences in the sound for small changes in the placement location. For example, although the speaker may be located at any height above the floor, locating the tweeter near ear level (32" -“ 36" is optimum) or angling the entire speaker toward ear level, often provides the most realistic imaging experience. The amount of bass perceived increases as you move a speaker closer to intersecting room surfaces (walls, ceiling, floor) and the highest level of bass results are realized from placement in a corner at the floor or ceiling. Indoor Placement

Page 6

7 LS205EBOPERATION Specifications Woofer 5.25 PVA treated Tweeter 1 piezo dome Impedance (nominal) 8 ohms Frequency Response 75Hz-20kHz ±3dB Sensitivity 87dB Power Handling* 80 watts (RMS) - 160 watts (IPP) Shielded No Enclosure Dimensions (H x W x D) 9.25 x 6.50 x 7.2 Product Weight 4.2 lbs Finish Black wood grain vinyl * Power handling is based on amplifier volume never being set above the point of audible distortion. All Rights Reserved. All specifications subject to change without notice. Specifications
