This is the 22 pages manual for Dual KA 320 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

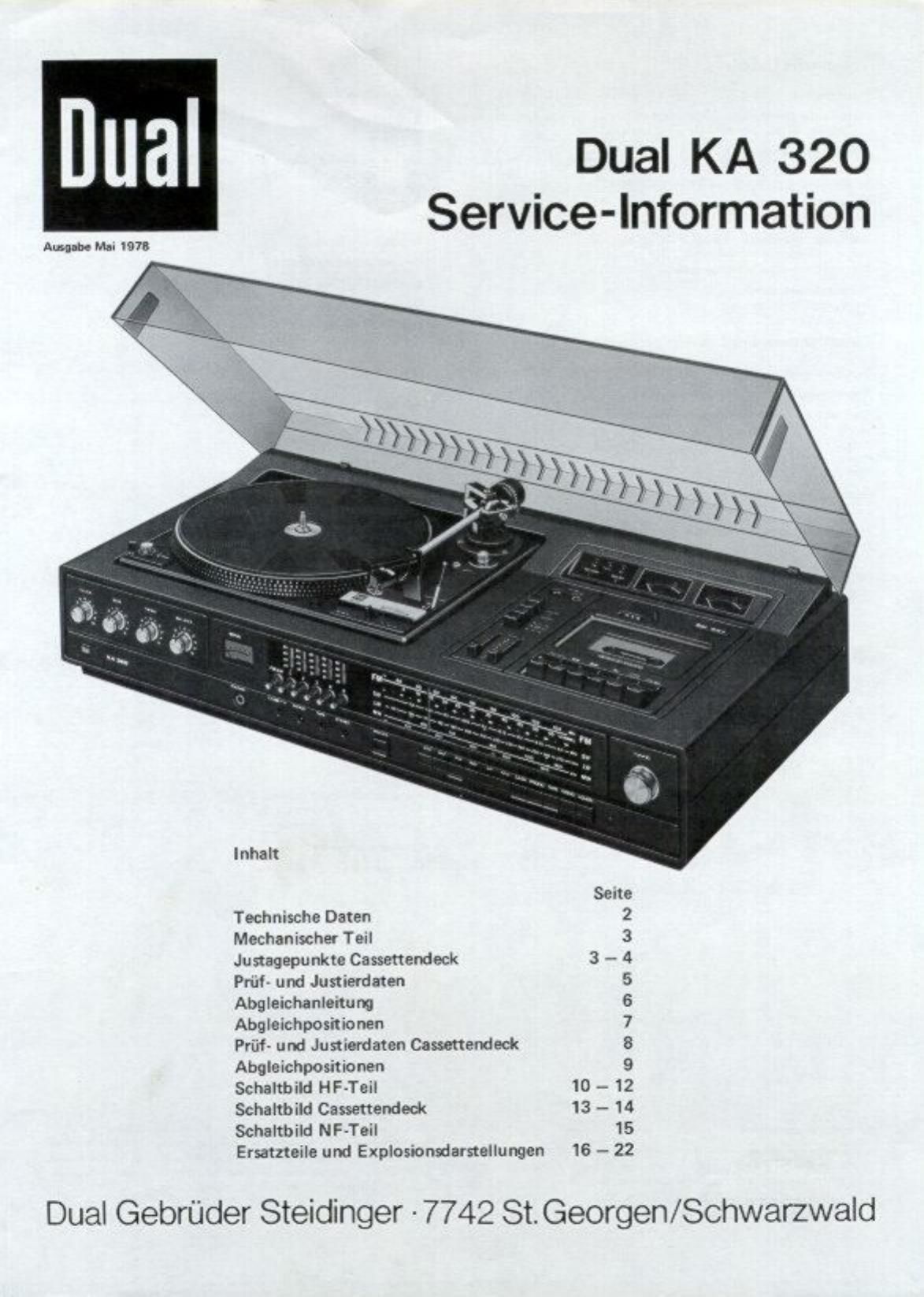

Dual KA 320
Service-Information
Aug-be Ma- 1978
Inhalt
Selle
Technische Dalen 2
Mechanischer Teil 3
Justagepunktc Cassenendeck 3 - 4
Prim und Justierdaten 5
Abgleichanleltung 6
Abgleichpositionen 7
Prijf- und Justierdaten Cassettendeck 8
Abgleichpositionen 9
Schaltbiid HF-Teil 10 - 12
Schaltbild Caxsenendeck 13 - 14
Schaltbild NF-Teil 15
Ersatzlene und Explosionsdarstellungen 16 - 22
Dual Geerder Steidinger 7742 St.Georgen/Schwarzwa|d
