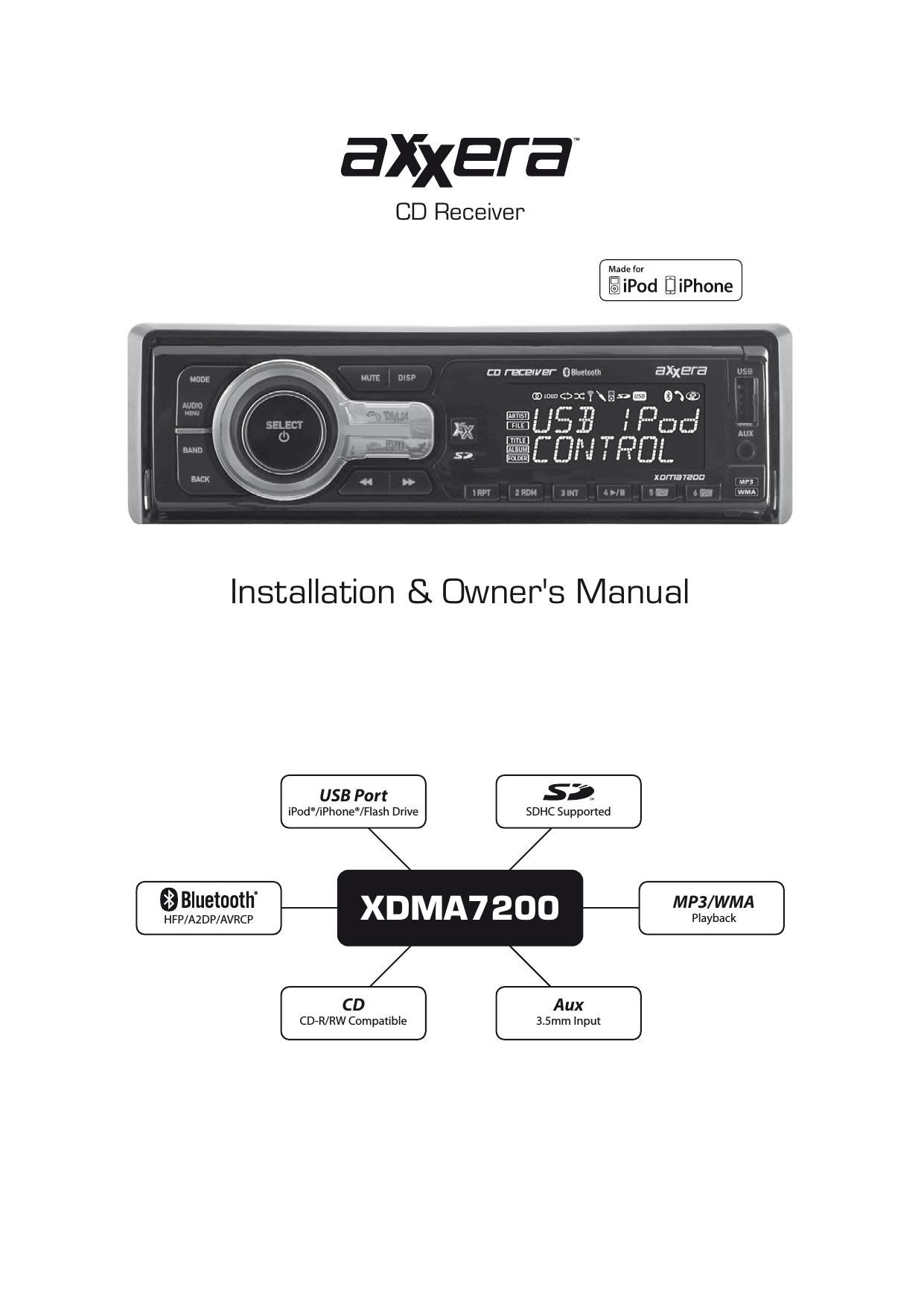

Dual Axxera XDMA 7200 Owners Manual

Page 2

XDMA7200

Preparation

Please read entire manual before installation.

Before You Start

- Disconnect negative battery terminal. Consult a qualified technician for instructions.

- Avoid installing the unit where it would be subject to high temperatures, such as from
direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started

- Remove trim ring from unit.

- Insert the supplied keys into the
slots as shown, and slide the unit
out of the mounting sleeve.

- Install mounting sleeve into
opening, bending tabs to secure.

- Connect wiring harness and
antenna. Consult a qualified
technician if you are unsure.

- Certain vehicles may require an
installation kit and/or wiring
harness adapter [sold separately]. EVE/7

- Test for correct operation and slide
into mounting sleeve to secure.

- Snap trim ring into place.

MOUNTING KIT
OR DASH OPENING

HEAD UNIT

MOUNTING SLEEVE

TYPICAL FRONT-LOAD DIN MOUNTING METHOD

Page 24

XDMA7200

Limited One Year Warranty

This warranty gives you specific legal rights.
You may also have other rights which vary
from state to state.

Dual Electronics Corp. warrants this
product to the original purchaser to

be free from defects in material and
workmanship for a period of one year from
the date of the original purchase.

Dual Electronics Corp. agrees, at our
option, during the warranty period,

to repair any defect in material or
workmanship or to furnish an equal

new, renewed or comparable product
[whichever is deemed necessary] in
exchange without charges, subject to
verification of the defect or malfunction and
proof of the date of purchase. Subsequent
replacement products are warranted for
the balance of the original warranty period.

Who is covered? This warranty is
extended to the original retail purchaser
for products purchased from an authorized
Dual dealer and used in the USA

What is covered? This warranty covers
all defects in material and workmanship in
this product. The following are not covered:
software, installation/ removal costs,
damage resulting from accident, misuse,
abuse, neglect, product modification,
improper installation, incorrect line voltage,
unauthorized repair or failure to follow
instructions supplied with the product, or
damage occurring during return shipment
of the product. Specific license conditions
and copyright notices for the software can
be found via axxera.dualav.com.

What to do?

I. Before you call for service, check the
troubleshooting guide in your owners
manual. A slight adjustment of any
custom controls may save you a service
call.

. If you require service during the
warranty period, you must carefully
pack the product [preferably in the
original package] and ship it by prepaid
transportation with a copy of the original
receipt from the retailer to an
authorized service center.

. Please describe your problem in
writing and include your name, a return
UPS shipping address [P.O. Box not
acceptable], and a daytime phone
number with your shipment.

. For more information and for the
location of the nearest authorized
service center please contact us by one
of the following methods:

- Call us toll free at 1 888 382 5478
- E mail us at cs@dualav.com

Exclusion of Certain Damages: This
warranty is exclusive and in lieu of any
and all other warranties, expressed or
implied, including without limitation the
implied warranties of merchantability and
fitness for a particular purpose and any
obligation, liability, right, claim or remedy
in contract or tort, whether or not arising
from the companys negligence, actual or
imputed. No person or representative is
authorized to assume for the company
any other liability in connection with the
sale of this product. In no event shall the
company be liable for indirect, incidental or
consequential damages.

24

Page 28

axxte'raw

Dual Electronics Corp.
Toll Free: 18863825476
axxeradualavcom
@2011 Dual Electronics Corp. All rights reserved.
iPhone, iPod. iPod classic, iPod nano. and iPod touch are trademarks of Apple Inc., registered in the us. and other countries.
Made for iPod" and Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or
iPhone. respectively. and has been certified by the developer to meet Apple performance standards. Apple is not responsible for
the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with
iPod or iPhone may affect wireless performance.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG. Inc. and any use of such marks by Namsung is under
license.

The SD logo is a trademark of the SD Card Association.
Other trademarks and trade names are those of their respective owners.
