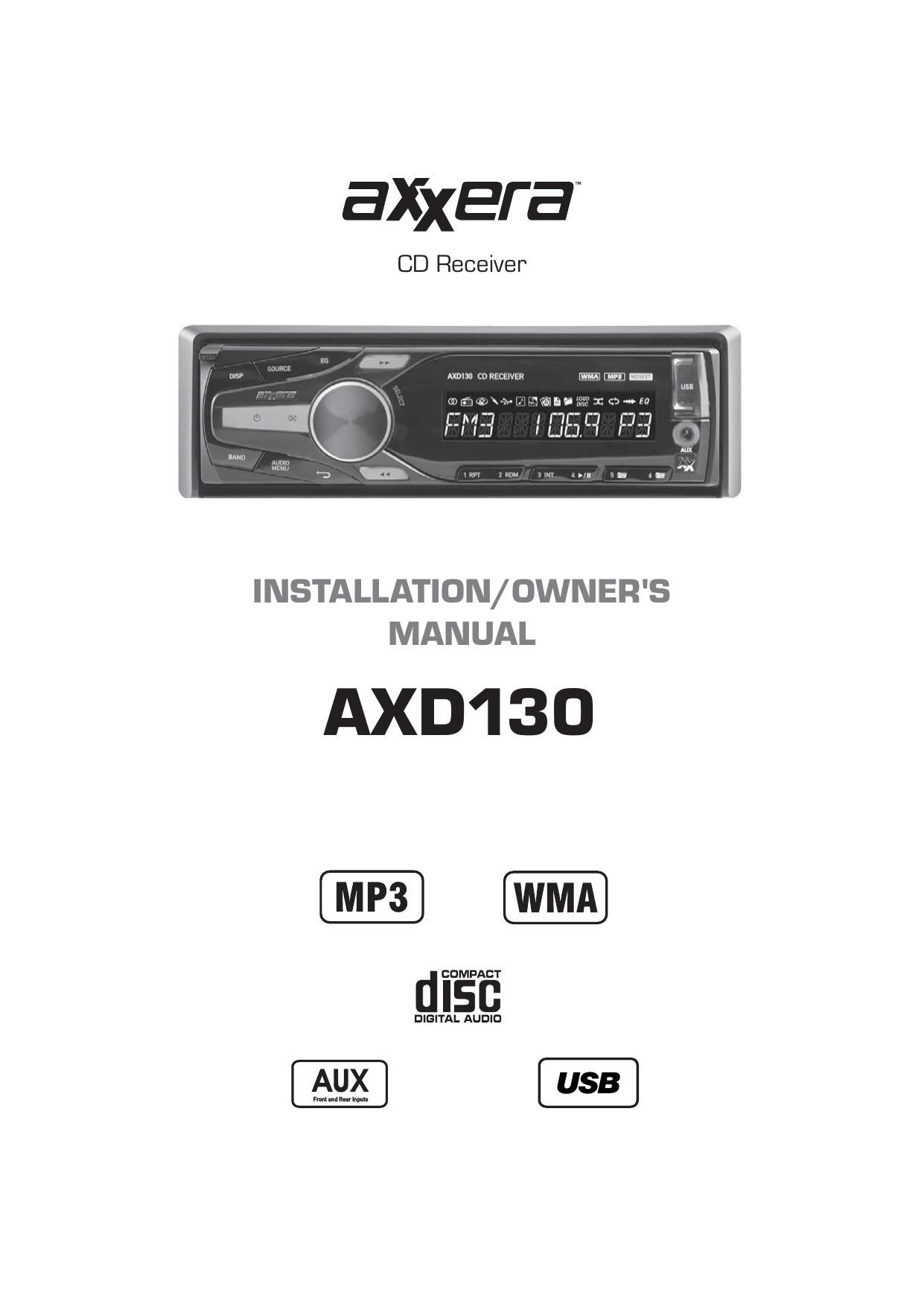

Dual Axxera AXD 130 Owners Manual

Page 2

AXD13O

Preparation

Please read entire manual before installation.

Before You Start

- Disconnect negative battery terminal. Consult a qualified technician for instructions.

- Avoid installing the unit where it would be subject to high temperatures, such as from
direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started
- Remove trim ring from unit.
- Remove 2 transit screws located on top of the unit.

- Insert the supplied keys into the slots as shown, and slide the unit out of the mounting
sleeve.

- Install mounting sleeve into opening, bending tabs to secure.
- Connect wiring harness and antenna. Consult a qualified technician if you are unsure.

- Certain vehicles may require an installation kit and/or wiring harness adapter [sold
separately].

- Test for correct operation and slide into mounting sleeve to secure.
- Snap trim ring into place.

OPTIONAL REAR
REMOVAL MOUNTING SUPPORT
KEYS
HEAD UNIT

MOUNTING SLEEVE

TYPICAL DIN FRONT-LOAD MOUNTING METHOD

2

Page 17

AXD130

Troubleshooting

Problem

Cause

Action

Unit will not turn on
[no power]

Yellow wire not connected or incorrect
voltage Red wire not connected or
incorrect voltage

Check connections for proper
voltage [II-IBVDC]

Black wire not connected

Check connection to ground

Fuse blown

Replace fuse

Unit has power
[but no sound]

Speaker wires not connected

Check connections at speakers

One or more speaker wires touching
each other or touching chassis ground

Insulate all bare speaker wires
from each other and chassis
ground

Unit blows fuses

Yellow or red wire touching chassis
ground

Check for pinched wire

Speaker wires touching chassis ground

Check for pinched wire

Incorrect fuse rating

Use fuse with correct rating

Excessive skipping

Unit is not mounted correctly or
backstrap is not secure

Check mounting sleeve and
backstrap support

Physical defect in media (CD, CD»R or

Check media for scratches

DISC ERROR
appears
on display

CD-RW]
Disc read error Press eject or RESET
Focus error or disc is in upside down Press eject or RESET

The WMA file is copy-protected by DRM
[Digital Rights Management]

Write disc using WMA files
that are not copy-protected

ND FILE appears
on display

No playable MRS/WMA files found on
the device

Check the device for valid
MPS/WMA files

Unit will not accept
a disc

CD mechanism position out of
alignment

Press EJECT to reset CD
mechanism position

CD transit screws still in place

Remove 2 transit screws
located on top of the unit

lIlD SUPPORT
appears on display

An invalid IDS tag version is present

Version 1.0 to 2.0 ID3 tags are
supported.

17
