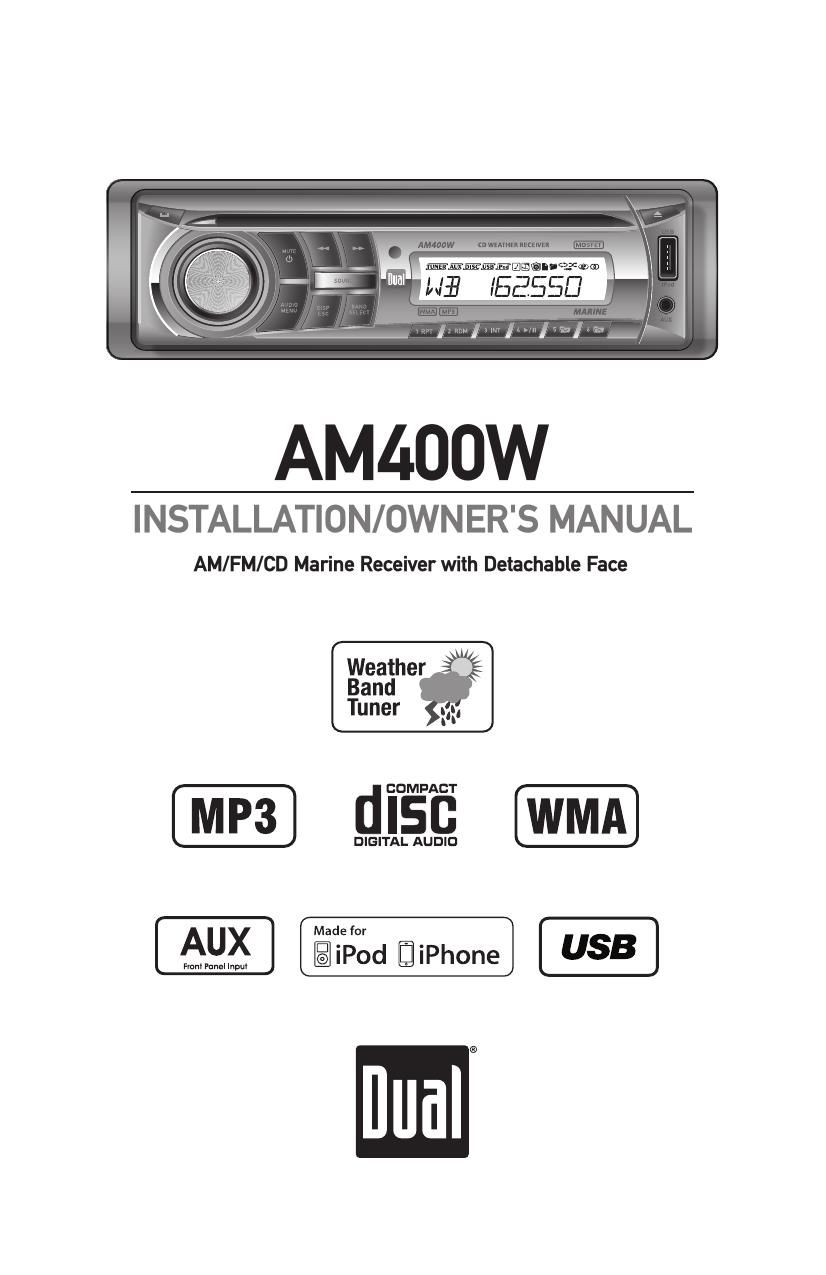

Dual AM 400W Owners Manual

Page 1

2 TYPICAL-ˆFRONT-LOAD-ˆ DIN-ˆMOUNTING-ˆ METHOD Removal Key s Mounting Sleeve Dashboard or Mounting Ki t Head Unit AM400W -ˆ INSTALLATION P\fepa\fation Please read entire manual before installation. Befo\fe-ˆ You-ˆSta\ft - Disconnect negative battery terminal. Consult a qualified technician for instructions. - Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting-ˆSta\fted - Remove trim ring from unit. - Remove 2 transit screws located on top of the unit. - Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve. - Install mounting sleeve into opening, bending tabs to secure. - Connect wiring harness and antenna. Consult a qualified technician if you are unsure. - Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately). - Test for correct operation and slide into mounting sleeve to secure. - Snap trim ring into place.

Page 2

3 AM400W-ˆ INSTALLATION-ˆ Wi\fing-ˆDiag\fam Rear Preamp OutputConnect to amplifier RCA input Antenna Connector RCA Cable (sold separately) AMP BLUE BLACK RED YELLOW Remote Turn-On Connect to amplifier or power antenna. Insulate wire if not used. GroundConnect to vehicle chassis ground. AccessoryConnect to ignition circuit or switched 12 volt source. MemoryConnect to battery circuit or constant 12 volt source. Right FrontGray/Black (-) Gray (+) Left FrontWhite/Black (-) White (+) Right RearViolet/Black (-) Violet (+) Left RearGreen/Black (-) Green (+) 10 AMP AGC Fuse FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The AM400W uses one 10 amp ATM fuse located beside the wiring connector.
