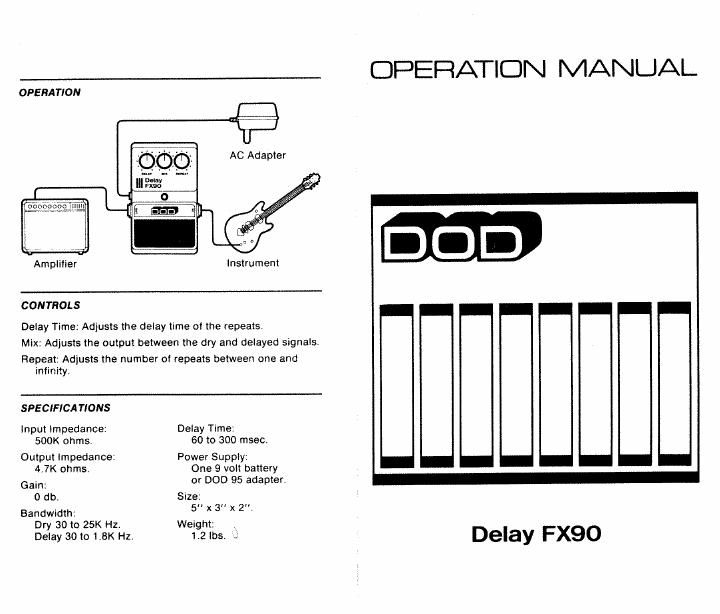

Page 1

OPERATION

AC Adapter

¢

Amplifier

lnsQrumem

CONTflOLS

Delay Time Adjusts me deiay lime ov the repeats.

Méx: Adiusts the output between the dry and delayed signais.

Repeal: Adjusls me number 0! repeats between one and

infinity
SPECIFICATIONS
Input Ompedance; Delay Time:

500K ohmsv 60 to 300 msecv
Clulpm tmpedance: Power Supply.

4.7K ohms One 9 v0 namely
Gain. 01 DOD 95 adapter.

0 db. Size:
Bandmdm: 5 X 3 x 2'

Dry 30 to 25K Hz. Waugh! \

Delay 3010! 8K Hz 3 2 lbs, .3

OPERATION MANUAL

Delay FX90

Page 2

FEATURES

0 LED indicator shows status of enact and battery condition.
- Active switching tor noiseless operation.

I No tools, easy access battery compartment.

0 Power jack included lor AC Operation.

- Hugged die cast metal case.

I Three year Limited Warranty,

- Rubber non-skid bottom.

NOTES

o Unplug input jack when not in use.
0 LED will dim and distortion will be present when the battery
is depleted.

CHANGING THE BA TTEHY

' Cw?

wt
{ @/ \\

FIgi/re V Figure 2 Figure 9

Figure l: Push tab down and pull out at too.
Figure 2: Remove battery and replace as shown.
Figure 3' Insert cover in groove and push closed.

DOD LIMITED WARRANTY

1.

2.

9

The warranty registration card must be mailed within to
days alter purchase data to validate this warranty.

DOD warrants this product. when used solely within the
United States. to be free from detects in material work«
manshlp under normal use and service,

DOD Eteclronics liability under this warranty is limited to
repairing or replacing detective material that show evi-
dence ol delect, provided the product is returned through
the original dealers, where all pans and labor will be
covered up to a period at three years. The company shall
not be liable lor any consequentlal damage as a result

of the products use in any circuit or assembly,

. Prool ol date of purchase is considered to be the burden

ol the consumer.

, ll this product is battery operated: Batteries are not

covered by this warranty-Please remove weak or dead
batteries in order to prevent corrosion damage.

. DOD reserves the right to make changes in design or

to make additions to or improvements upon this product
wtthoul incurring any obligation to install the same on
product previously manulactured.

. The loregoing is in lieu of all other warranties express.

or implied, and DOD neither assumes nor authorizes any
person to assume for it any obligation or liability in
connection with the sale at this product. In no event shall
DOD or its dealers be liable for special or consequential
damages or for any delay ln the penormances ol this
warranty due to causes beyond their control.
