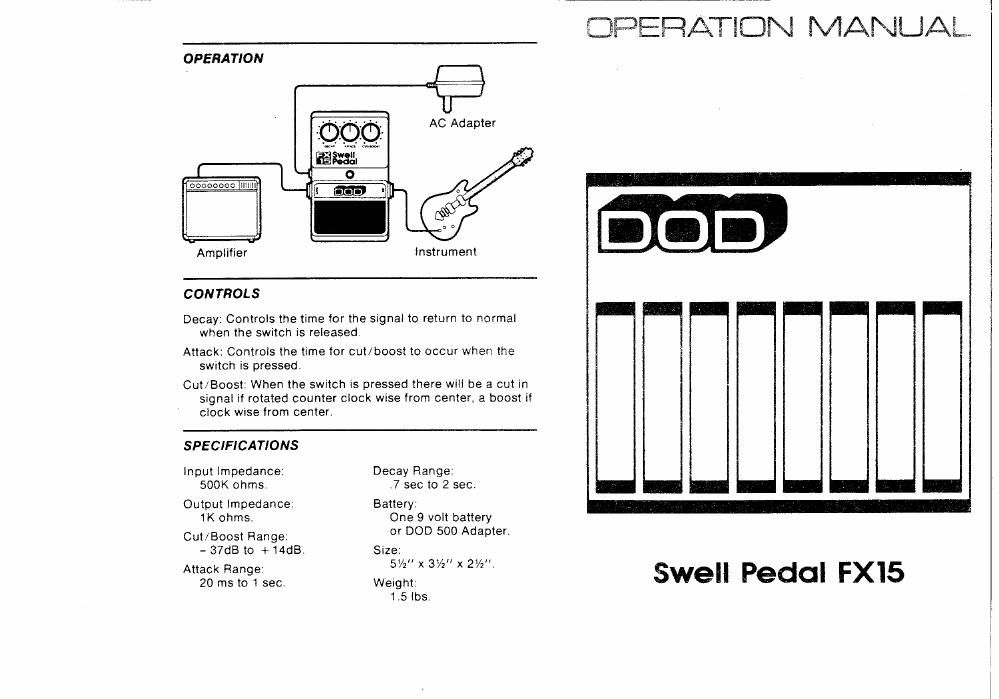

Page 1

OPERATION

AC Adapter

Amplifier Instrument

CONTROLS

Decay: Controls the tune for the signal to return to norma!
when the switch vs released.

Attack: Controls the lime for cut/boost to occur when the
swrtch IS pressed

Cut/Boost, When the swrtch 65 pressed there wiH be a cut in
signa! if rotated counter clock wise from center, a boost if
dock wrse from center.

SPECIFICATIONS
Input Impedance. Decay Range:
500K ohms, .7 sec to 2 sec.
Output Impedance: Battery.
1K ohms One 9 Vet! battery
Cut/Boost Ranger or DOD 500 Adapter.
- 37:18 to +14d8 $5292
Attack Range, 5V2 x 3V7" x 2V2-

20 ms to 1 sec Weight
15 lbs,

OPERATION !\/i;fi\!\]L_L-��>-tg .

T

Swell Pedal FX15

1

Page 2

FEATURES

- LED Indicator shows status of eiieot and battery condition.
. Active switching tor noiseless operation.

- No tools, easy access battery compartment.

- Power jack inoiuded for AC operation.

0 Rugged die cast metal case.

0 One year Limited Warranty

0 Rubber non-skid bottom

NOTES

0 Unpiug inputjack when not in use,

- LED Wiii dim and distortion wiii be present when the battery
is depieted,

CHA NGING THE BATTER Y

Figure 1 Figure 2 Flgure 3

Figure 1: Push tab down and pull out at top
Figure 2, Remove battery and replace as shown.
Figure 3: Insert cover in groove and push Ciosed

DOD LIMITED WARRANTY

1. The warranty registration card must be matted within 10
days after purchase date to validate this warranty.

2. DOD warrants this product. when used soiely within the
United States, to be free from defects in materiai work-
manship under normai use and service

3, DOD Eiectronios' iiability under this warranty is limited
to repairing or repiacing detective materiai that show
evidence of detect. provided the product is returned
Postage Paid to DOD Eiectronics Corporation where an

parts and labor wiii be covered up to a period of one year,

The company shaii not be Stable ior any consequentiai
damage as a result ot the products use in any circuit
or assembiy or due to any tampering with the unit.

4. Proof of date of purchase is considered to be the burden
oi the consumer.

5. if this product is battery operated Batteries are not
covered by this warranty-Please remove weak or dead
batteries in order to prevent corrosron damage,

6. DOD reserves the right to make changes in design or
to make adoitions to or improvements upon this product
without incurring any obiigation to instaii the same on
products prewous/y manufactured

7 The foregoing is m iieu of all other warranties express,
or impiiet, and DOD neither assumes nor authorizes any
person to assume for it any obiigation or iiabihty in
connection With the see of this product. In no event shall
DOD or its deaiers be liaoie tor specrai or consequenhai
damages or for any deiay in the performances of this
warranty due to causes beyond the: sontroi.
