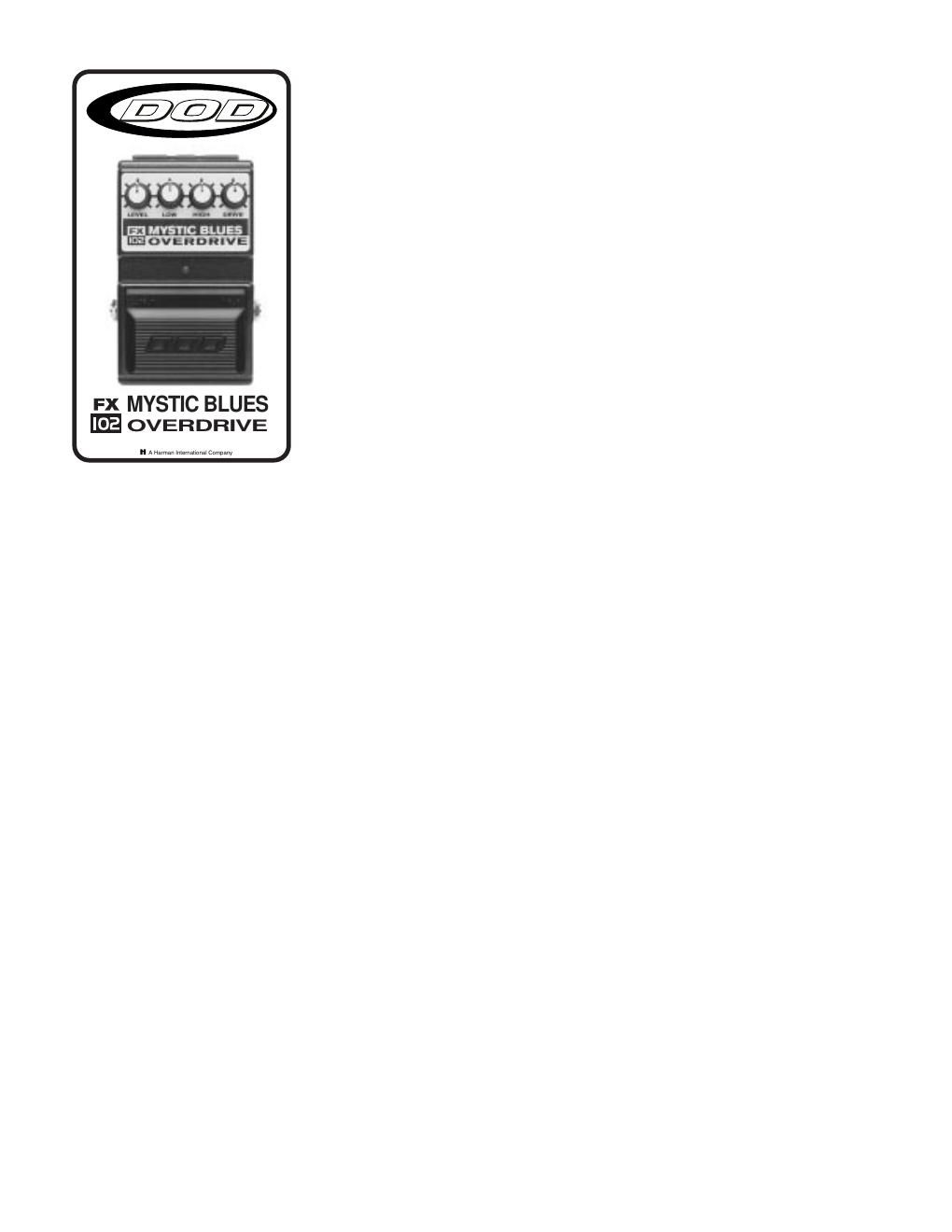

Page 1
WHAT THE FX102 DOES
The FX102 is designed to add the right amount of
distortion to a guitar when it is already running into a
distorted amplifier. By slightly distorting the amp and
kicking the FX102 on during solos or extra distorted
songs, the FX102 adds more character without becoming
harsh. The FX102Õs harmonics stand out, and EQ lets
you achieve many different tones that you could only get
with two distortions. From tube like screams to rock-a-
billy twang, itÕs all there.
CONNECTING THE FX102
Connect your guitar to the input of the FX102. Connect
the output of the FX102 to your amp, or to the input of
another effects device. To eliminate the need for a 9-volt
battery, attach the DOD PS200R to the AC adapter jack.
FEATURES
LED indicator shows status of effect and battery
condition.
Active switching for noiseless operation.
Easy access battery compartment.
Adapter jack for AC operation.
Rugged die-cast metal case.
Three year limited warranty.
Rubber non-skid bottom.
Page 2
CONTROLS
LEVEL: Controls the output level of the FX102. Use this
control to overdrive the front end of the amplifiers, and add
a solo boost.
LOW: Controls the low frequency EQ of the FX102. Use
this control to make your amplifiers distortion sound thin or
very flubby.
HIGH: Controls the amount of high frequency EQ of the
FX102. Use this control to make your amplifier sound very
crisp, or to give those harmonics just that extra little kick
so your guitar oscillates on command.
DRIVE: This adds gain or distortion to the FX102. Turn it
up while using a distorted amp, and you can feel the notes
just keep going and going.........
FOOTSWITCH: Switches the effect in or out of the signal
path.
LED INDICATOR: Lights when the distortion is enabled,
and is not lit when the distortion is bypassed.
JACKS: Input, Output, AC Adapter (use the DOD PS200R
power supply only to eliminate the need for a 9 volt
battery).
