1 APPLICATIONS
- Telephones . - Word processors
- Facsimile machines - Laptop notebook pocket computers
- Electronic typewriters - Portable data terminal equipment
- Pos terminals - Overhead projection equipment
- Data-bank translaters - Fish finders
- Hand carry game machines - Other display devices
2 FEATURES
- Wide viewing angle and high contrast images
'rLOW'voltage-and low power consumption
- Thin, light and compact
- High reliability and quality
- Wide range of operating temperatures
- A variety of backlights

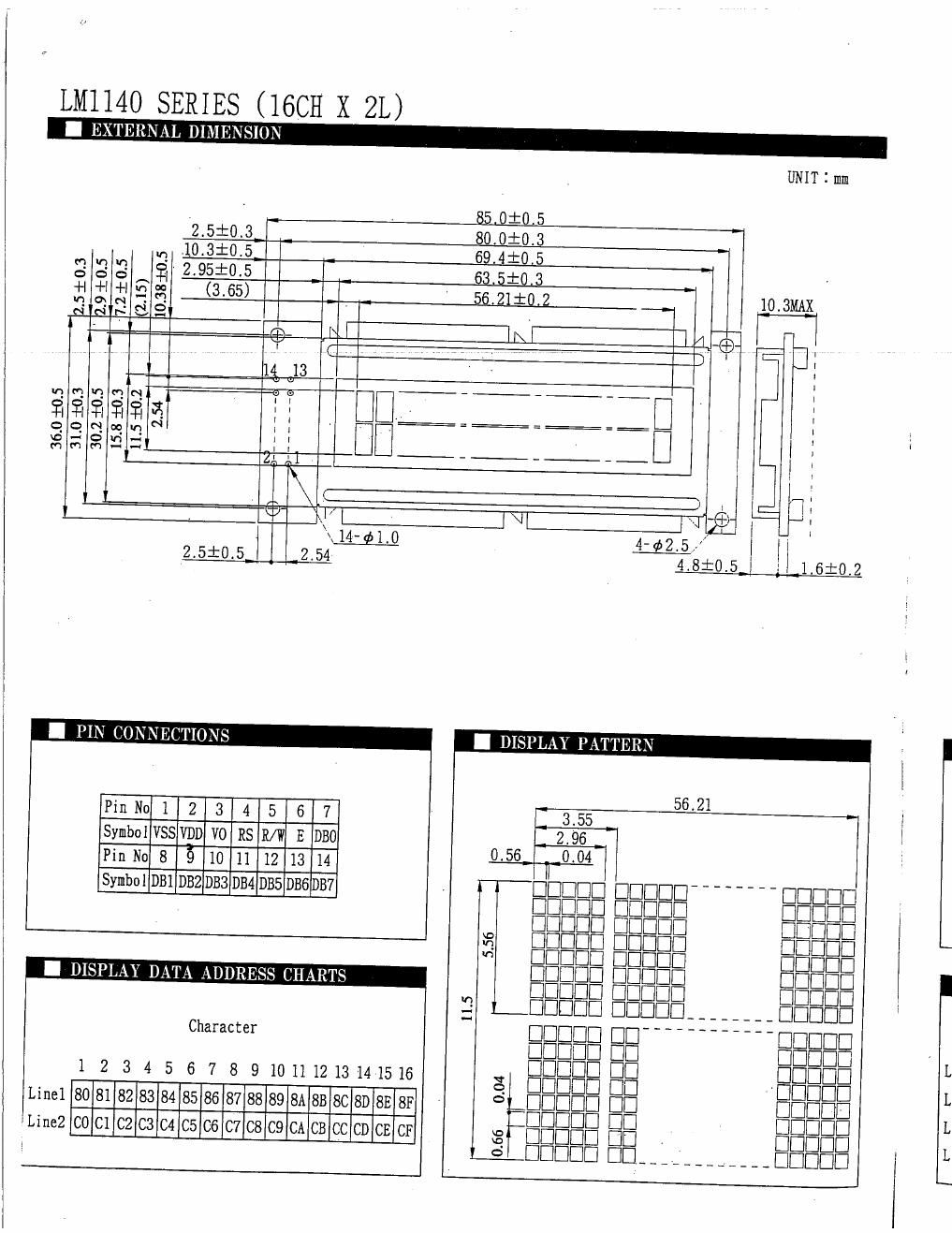

3 EXPLANATION OF MODEL NO.
L M 1 0 0 0 T G Ft U
l II III IV V VI VII VIII
l. Symbol For LCD Module
ll. Module type:"1": Standard character, "6": Standard graphic
"0": Special pattern type, "2", "3", "5",: Custom-design character type
"7, "",8 "9" : Custom-design graphic type
III. Development number: Successive no(00-99)
IV. Revision no.: Series No.(0~9)
V. LCD type: "T": TN, "S": STN, "F": F-STN
Vlr Background color: "W": B/W, "G": Gray, "Y": Yellow-green, "B": Blue
Vll. Backlight:"R": Reflective, No backlight
"E": EL backlight
"L": LED backlight .
"F": CFL backlight
"T": Transflective, No backlight
Vlll. Viewing direction.
Nil : 6 O'clock
"U" : 12 Oclock
"Ft" : 3 O'clock
"L" : 9 O'clock
4 INFORMATION ON ORDERING
- Model No ,
- Display mode (TN, STN) and back-ground color for only STN
(yellow, green, blue)
- Back light (none, EL, LED, CCFL)
- Temperature range (normal, extended)
- Viewing direction (6:00, 12:00)
- Polarizer type [ reflective, transmissive (positive, negative), transflective]
