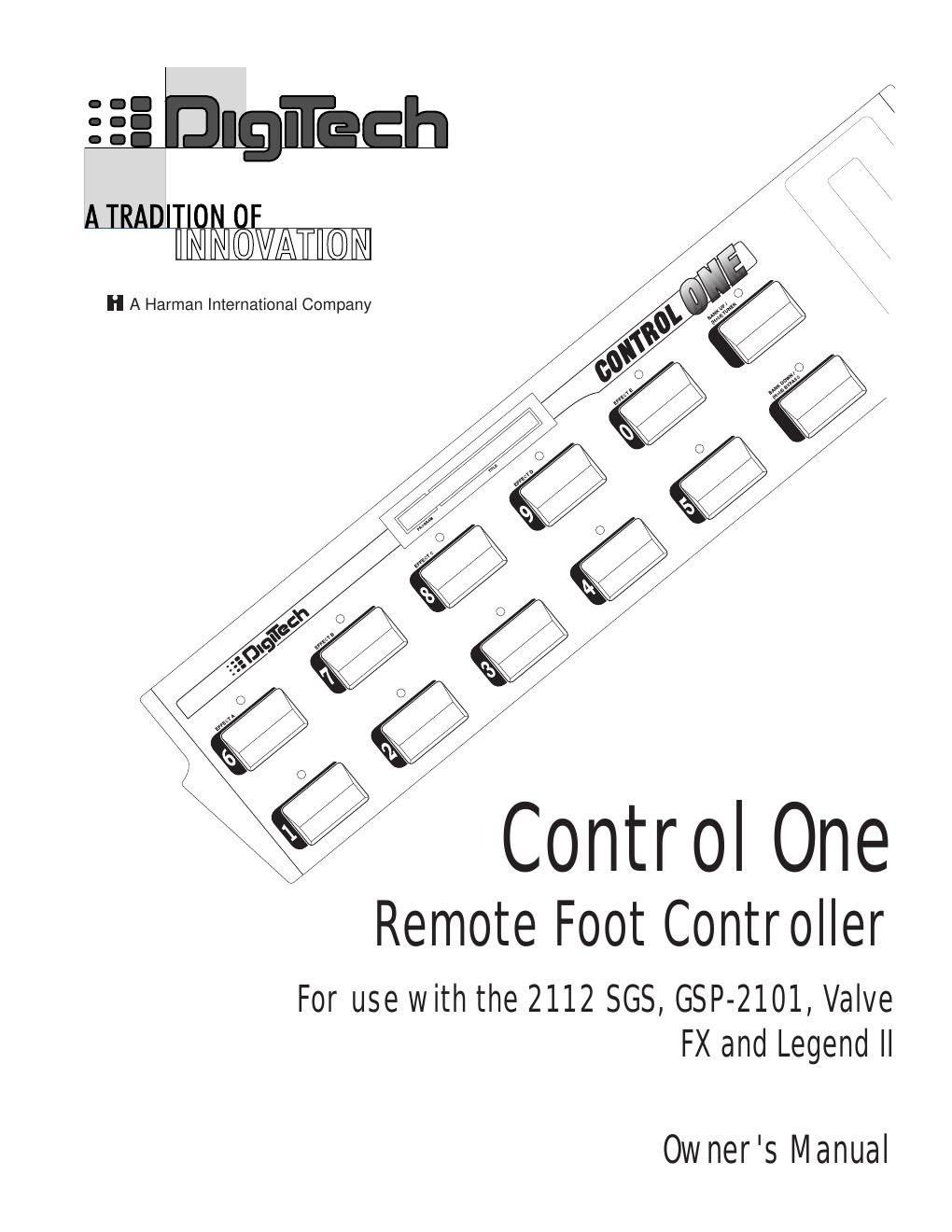

Digitech control one owner manual

Page 1

Safety Precautions .........................................................................................................................2 Warranty........ ...............................................................................................................................2 Quick Start...... ..............................................................................................................................3 Introduction .................................................................................................................................3 Modification Decals ......................................................................................................................3 Section 1 - Startup Front Panel Controls and Functions ............................................................................................4 Program Switches...................................................................................................................4 Program / Bank Selector ........................................................................................................4 Bypass Switch.........................................................................................................................4 Continuous Control Pedal.....................................................................................................4 Rear Panel Connections ........................................................................................................4 Control Output ......................................................................................................................4 External Continuous Controller Input..................................................................................4 Section 2 - Basic Operation Using the Control One .................................................................................................................5 Section 3 - Programming the Control One Foot Controller .............................................................................................................................6 Table Of Contents Control One OwnerÕs Manual

Page 2

Safety Precautions The symbols shown at left are internationally accepted symbols that warn of potential hazards with electrical products. The lightning flash with arrowpoint in an equilateral triangle means that there are dan- gerous voltages present within the unit. The exclamation point in an equilateral triangle indicates that it is necessary for the user to refer to the owner's manual. These symbols warn that there are no user serviceable parts inside the unit. Do not open the unit. Do not attempt to service the unit yourself. Refer all servicing to qualified personnel. Opening the chassis for any reason will void the manufacturer's warranty. Do not get the Control One wet. If liquid is spilled on the unit, shut it off immediately and take it to a dealer for service. Disconnect the equipment during storms to prevent damage. Warranty 1. The warranty registration card must be mailed within ten days after purchase date to validate this warranty. 2. DigiTech warrants this product, when used solely within the U.S., to be free from defects in materials and workmanship under normal use and service. 3. DigiTech liability under this warranty is limited to repairing or replacing defective materials that show evi- dence of defect, provided the product is returned to DigiTech WITH RETURN AUTHORIZATION, where all parts and labor will be covered up to a period of one year. A Return Authorization number may be obtained from DigiTech by telephone. The company shall not be liable for any consequential damage as a result of the product's use in any circuit or assembly. 4. Proof-of-purchase is considered to be the burden of the consumer. 5. DigiTech reserves the right to make changes in design or make additions to or improvements upon this prod- uct without incurring any obligation to install the same on products previously manufactured. 6. The foregoing is in lieu of all other warranties, expressed or implied, and DigiTech neither assumes nor autho- rizes any person to assume for it any obligation or liability in connection with the sale of this product. In no event shall DigiTech or its dealers be liable for special or consequential damages or from any delay in the per- formance of this warranty due to causes beyond their control. DigiTechª is a registered trademark of The Harman Music Group. The information contained in this manual is subject to change at any time without notification. Some infor- mation contained in this manual may also be inaccurate due to undocumented changes in the product or oper- ating system since this version of the manual was completed. The information contained in this version of the owner's manual supersedes all previous versions. CAUTION ATTENTION: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURERISK OF ELECTRIC SHOCK DO NOT OPEN 2 Control One OwnerÕs Manual
