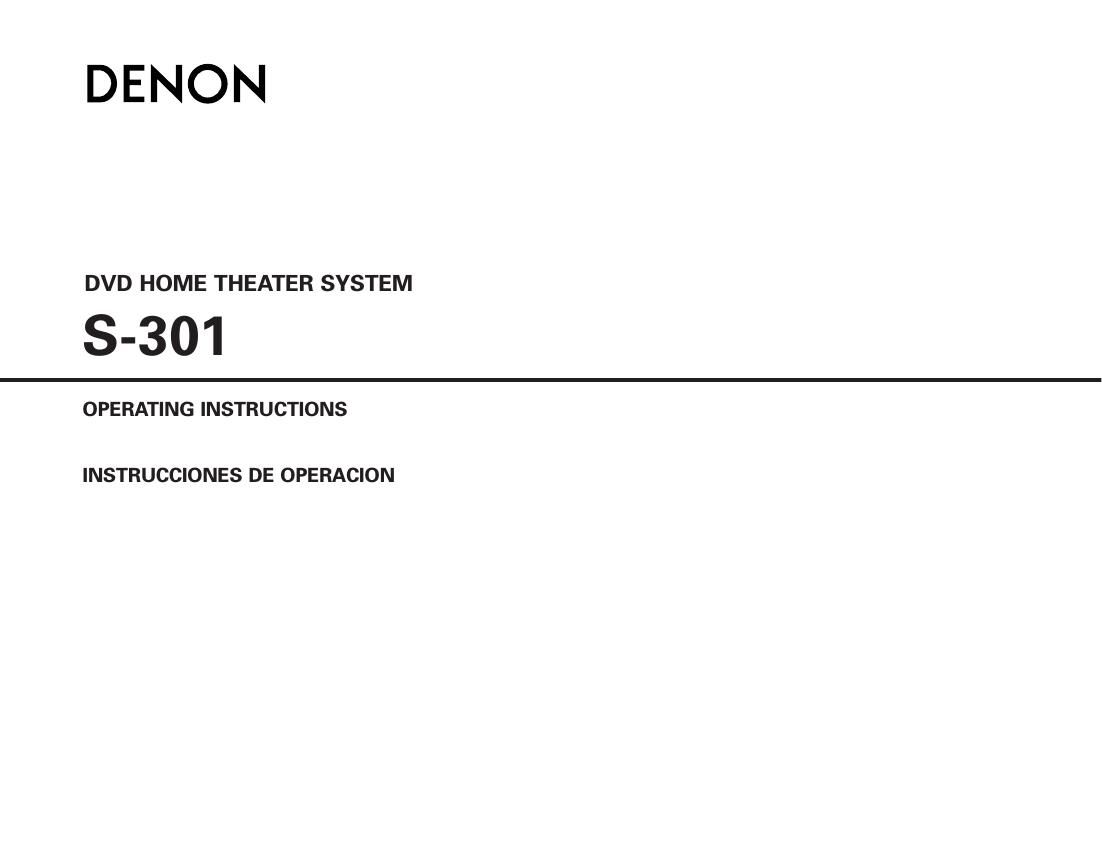

Denon S 301 Owners Manual

This is the 148 pages manual for Denon S 301 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 148
left right
Denon S 301 Owners Manual

Extracted text from Denon S 301 Owners Manual (Ocr-read)


Page 1

FCC INFORMATION (For US customers) 2 SAFETY PRECAUTIONS 1. PRODUCTThis product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this product may not caus\ e harmful interference, and (2) this product must accept any interferenc\ e received, including interference that may cause undesired operation. 2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modification not expressly approved by DENON may void your authority, granted by the FCC, to use the product. 3. NOTEThis product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio o\ r television reception, which can be determined by turning the product OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the product into an outlet on a circuit different from that to which the receiver is connected. - Consult the local retailer authorized to distribute this type of product or an experienced radio/TV technician for help. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. W ARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. 1. Read Instructions -“ All the safety and operating instructions should \ be read before the product is operated. 2. Retain Instructions -“ The safety and operating instructions should be\ retained for future reference. 3. Heed Warnings -“ All warnings on the product and in the operating instructions should be adhered to. 4. Follow Instructions -“ All operating and use instructions should be followed. 5. Cleaning -“ Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. 6. Attachments -“ Do not use attachments not recommended by the product manufacturer as they may cause hazards. 7. Water and Moisture -“ Do not use this product near water -“ for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. 8. Accessories -“ Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury\ to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer. 9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 10. Ventilation -“ Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturers instructions have been adhered to. 11. Power Sources -“ This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. 12. Grounding or Polarization -“ This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way\ . This is a safety feature. If you are unable to insert the plug fully in\ to the outlet, try reversing the plug. If the plug should still fail to fi\ t, contact your electrician to replace your obsolete outlet. Do not defeat\ the safety purpose of the polarized plug. 13. Power-Cord Protection -“ Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. 15. Outdoor Antenna Grounding -“ If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Cod\ e, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A. 16. Lightning -“ For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 17. Power Lines -“ An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 18. Overloading -“ Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or\ electric shock. 19. Object and Liquid Entry -“ Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.\ Never spill liquid of any kind on the product. 20. Servicing -“ Do not attempt to service this product yourself as openin\ g or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 21. Damage Requiring Service -“ Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operatinginstructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance -“ this indicates a need for service. 22. Replacement Parts -“ When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 23. Safety Check -“ Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 24. Wall or Ceiling Mounting -“ The product should be mounted to a wall or ceiling only as recommended by the manufacturer. 25. Heat -“ The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. SAFETY INSTRUCTIONS FIGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONALELECTRICAL CODE ANTENNA LEAD IN WIRE GROUND CLAMP ELECTRIC SERVICE EQUIPMENT ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC -“ NATIONAL ELECTRICAL CODE ENGLISH FRANCAIS ESPAÑOL

Page 2

2System setup menu / Menu de configuration système / Menú System Se\ tup page 51 ~ 55 page 47, 48 page 49, 50 page 55, 56 page 56 ~ 59 page 59, 60 ENGLISH FRANCAIS ESPAÑOL

Page 42

40 ENGLISH Advanced OperationAdvanced Operation ENGLISH On-screen display TP search Use this function to find RDS stations broadcasting traffic program (TP stations). 1 Set the band to FM, then press the RDS button until TP SEARCH appears on the display. 2 Press the TUNING + or -“button. -The TP search operation starts automatically. - The station name is displayed on the display after searching stops. If no TP station is found when all the frequencies are searched, NO PROGRAM is displayed. RT (Radio Text) RT appears on the display when radio text data is received. Set the input source to TUNER, then press the SUBTITLE/RT button. - When the station currently tuned in is offering a radio text message service, the message scrolls on the display. When the RT mode is turned on while an RDS radio station not offering an RT service is tuned in, NO TEXT DATA is displayed on the display, then the mode automatically switches to the PS mode. In the same way, the mode automatically switches to the PS mode when the RT service is finished. In this case, the mode automatically switches from the PS mode back to the RT mode when an RT broadcast is resumed. To turn the RT mode off, press the SUBTITLE/RTbutton and switch to the desired display mode. - The RT mode cannot be set in the AM band or for FM stations not offering RDS broadcasts. -When the CURSOR 0 or 1 button is pressed during the TP search operation, all frequencies are searched once. 3 Press the CURSOR - or ª button to select the item you wish to change. - The picture on the TV screen switches each time the DISPLAY button is pressed. The items displayed differ from disc. - The selected item is displayed with a yellow frame. For DVD video discs: TITLE, CHAPTER and TITLE ELAPSED can be selected. For DVD audio discs: GROUP, TRACK, and GROUP ELAPSED can be selected. For video CDs, Super audio CDs and music CDs: TRACK and SINGLE ELAPSED can be selected. Use this function to display and change information on the disc (titles, chapters, time, etc.) 1 During playback, press the DISPLAY button. -A screen with the time display icon ( ), selection icon ( ) and picture quality adjustment icon () are displayed. Example : For DVDs Operating using the disc information OSD Example: For video CDs, Super audio CDs and music CDs Example : For DVD audio discs 2 Press the CURSOR 0or1 button to select icon. For the on-screen display for DVD video, video CDs and music CDs, only the disc time changes. Example : For DVD video discs

Page 126

54 Configuración del sistemaConfiguración del sistema ESPAÑOL Configuración de DISTANCIA - Introduzca las distancias desde la posición de audición a los altavoces y establezca el tiempo de retardo de sonido envolvente. -T ras el envío desde fábrica, la distancia se establece como valor predeterminado en el paso 4. FR FL Subwoofer L1: Distancia desde los altavoces delantero derecho a la posición de audición L2: Distancia desde los altavoces delantero izquierdo a la posición de audición L3: Distancia entre el altavoz subwoofer y la posición de escucha Preparativos: Mida las distancias desde la posición de audición a los altavoces.\ 1 Pulse el botón CURSOR - oª para seleccione CONFIG. ALTAVOCES en CONFIGURACIÓN DE AUDIO, a continuación pulse el botón ENTER . - Aparecerá la pantalla deCONFIG. ALTAVOCES. Posición de audición 2 Pulse el botón CURSOR - oª para seleccione DISTANCIA, a continuación pulse el botón ENTER . - Aparece la pantalla de ajuste de distancia. 3 Pulse el botón CURSOR 0 o 1 para seleccionar PIES o METROS para el modo DISTANCIA, a continuación pulse el botón CURSOR ª. 4 Pulse el botón CURSOR - oª para seleccionar el altavoz, a continuación pulse el botón CURSOR 0 o 1 para ajustar la distancia entre el altavoz y la posición de audición. - La distancia cambia en 1 pie (o 0,1 metros cuando la unidad de distancia es pies) cada vez que se pulsa el botón CURSOR 0 0 o 1 1. Seleccione el valor más cercano a la distancia medida. Asegúrese de que la diferencia entre las distancias establecidas para los distintos altavoces no sea mayor que 15 pies (4,5 metros). Si se selecciona una distancia inapropiada, el mensaje CAUTION: INVALID DISTANCE aparece en la pantalla. Cambie la posición del altavoz y vuelva a realizar el ajuste. Para ajustar la distancia de los diferentes altavoces a sus valores predeterminados, pulse el botón CURSOR - -o ª ªpara seleccionar POR DEFECTO, a continuación pulse el botón ENTER . 5 Pulse el botón CURSOR ª para seleccione MENÚ CONFIG., a continuación pulse el botón ENTER . - Aparecerá la pantalla deCONFIG. ALTAVOCES. 6 Pulse el botón CURSOR ª para seleccione MENÚ CONFIG. SIGUIENTE, a continuación pulse el ENTER para introducir la configuración. - Aparece la siguiente pantalla en la pantalla de menú Configuración. Configuración de POSICION ALTAVOZ La acústica óptima puede obtenerse ajustando la ubicación de lo\ s altavoces y las condiciones de la habitación. 1 Pulse el botón CURSOR - oª para seleccione CONFIG. ALTAVOCES en CONFIGURACIÓN DE AUDIO, a continuación pulse el botón ENTER . - Aparecerá la pantalla deCONFIG. ALTAVOCES. ESPAÑOL
