Denon PMA 900V Service Manual

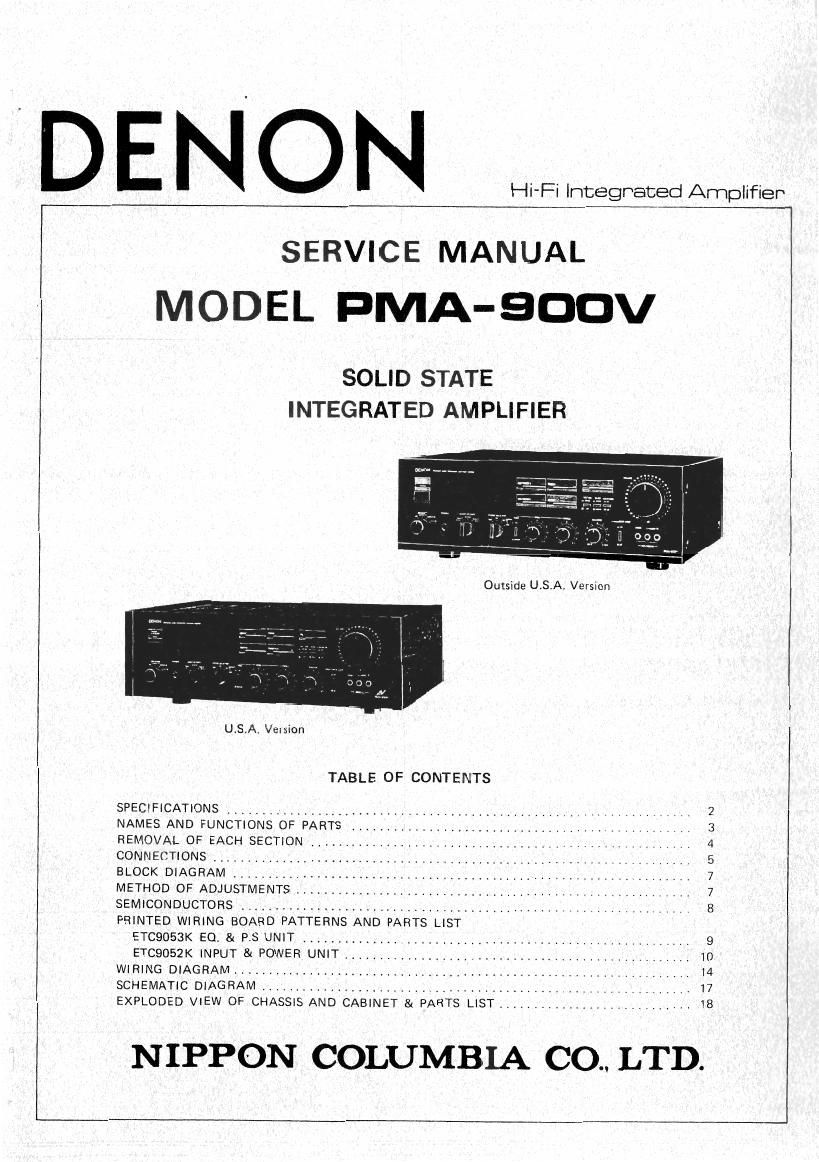

Page 1

D E N O I I Hi-Fi Integhated Amplifier

SERVICE MANUAL
MODEL PMA-SDDV

SOLID STATE
INTEGRATED AMPLIFIER

Outside USA. Versnon

U.S.A. Version

TABLE OF CONTENTS

2
3
REMOVAL OF EACH SECTION .................................................. ,V 4
CONNECTIONS ................................................................. 5
BLOCK DIAGRAM ............................................................... 7
METHOD OF ADJUSTMENTS ........................................................ 7
SEMICONDUCTORS .............................................................. 8
PRINTED WIRING BOARD PATTERNS AND PARTS LIST
ETCQOSSK EO. & P.S UNIT ....................................................... 9
ETC9052I< INPUT & POWER UNIT ............... 10
WIRING DIAGRAM .................................................................. I4
SCHEMATIC DIAGRAM .............................................................. 17
EXPLODED VIEW OF CHASSIS AND CABINET & PARTS LIST ............................ 18

NIPPON COLUMBIA CO. LTD.

Page 2

SPECIFICATIONS

POWER AMPLIFIER SECTION
Rat-d Output Power:
OUT)

Both channel drives (TUNER ~SP

120 Watts minimum rms per channel
(8 ohm Load) with less than 0.02%

total harmonic distortion from 20 Hz

to 20 kHl,

1kHll4 ohm Load) 200 W + 200 W
(DIN, T.H.D 1%)

I kHz (6 Ohm Load) 90 W + 90 W

(I EC, Subject to change by
temperature test)

Total Harmonic Distortion:

0.003% (20 Hz - 20 kHz at ~23 :13

rated Output 8 ohm Load)
0.002% (1 kHz at rated output

8 ohm Load)
Input Sansitivi : 150 mV
Input Impedance: 30 k ohm

EOUALIZEH AMPLIFIER SECTION
Eaualizar Amplifier Output:
(REC OUT Terminal)

Input Sensitivity/Input)

Rated Output: 150 rer

Tone Control Adlustabla
Range:

Filtering Characteristics:
Loudnau Characteristics:

AC OUTLET:
(For U.S.A., Canada and
Asia)

POWER SOURCE:

POWE R CONSUMPTION:

DIMENSIONS:

WEIGHT:

- PMA-BDDV

MC 77 as (input
terminals short-
circuited for 500 uV
input)

TUNER/AUX, CD, TAPE, VI DEO-I,
VIDEO-2

107 :18 (input terminals

short-circuitedl

BASS 100 Hz 110 dB
TREBLE 10 kHz :10 dB
SUBSONIC 16 H1, 12 dB/Dct
Low frequency 100 Hz 4- 7 dB
High frequency 10 kHz + 6 dB

SWITCHED x 2,100 W (Total)
UNSWITCHED x1,250W

Germany and France AC 220 V,

50 H2; UK. and Australia AC 240 V,
50 H2: U.S,A. and Canada AC 120 V,
60 Hz; Asia 110/I20/220/240 V,
50/60 Hz (Multiple)

4.5 A (U.S.A. 81 Canada); 250 W IIECI.
210 W (Multiple)

465 mm (18-5/16")W x 157 mm
(6»3/16)H x 397 mm (l5-5/8")D
(For U.S.A. model only)

434 mm (17-5/64")W x157 rrlm
l6-3/16")H x 397 mm (15-5/8")D
(For Europe, Multiple and Australia
Version) (including rubber Ieet,
control knobs, and terminals.)

11.6 k9i25lb510 oz)

(For U.S.A, model only)

10.6 kg (23 lbs 6 oz)

(For Europe, Multiple and Australia
Version)

Design and specifications are subject to change withoutprior notice.

lrnpadanca: PHONO MM 25 mV 47 k ohm
MC 200 uV 100 ohm
CD, VIDEO-I, VIDEO-2,
TUNER/AUX, TAPE
150 mV 30 k ohm
HIAA Daviation: PHONO MM within $0.2 dB
(20 Hz - 20 kHz)
MC wlthin $0.3 dB
(20 Hz - 100 kHz)
Maximum Input Voltage: PHONO MM 160 mV/I kHz
MC 12 mV/I kHz
OVERALL CHARACTERISTICS
SN Ratio (IHFA Network): PHONO MM 95 dB Il'nput
terminals short-
circuited Ior 5 mV
input)
NOTE:

The following codes correspond to the appropriate models.

E3 for U.S.A., EA for Australia, EC for Canada
This Service Manual is prepared based on E2 for Black Version.

For United Kingdom model only.
F
WARNING:

As [he colours oi the WIIRS in "to mom! lead 0' "III Ipplilnce mly nol
correspond mm m coloured marking: ioonlilying (ha tormmls In

your plug proceed us lollows.

in: wire which is coloured blun must be connezlod m the
lermlnol which is marten with the lunar N or colour-d alscli

The wiro which is coloured brown mun a. commuted to the
terminal which is naked with [he Ion-r L or colourafl red.

in. wlla which is coloured BROWN mull be connected to
the terminal which II marlind wllh lhl letter L or coloured

RED
L

For Australia model only.

IMPORTANT

The wires in this menu lead an coloured in ICCOVUIHLI with Iha IoI-

lowing coda-

Blua: Naulrll
Brown: Live

(

FOR VOUR SAFETV

To ensure safe operation the three-pin plug supplied must be inserted only into a standard three-pin
power point which is elfectivly aarthad through the normal husahold wiring.
Extension cords used with the equipment must be three-con and be correctly wired to provide
connection to earth. Wrongly wirad extension cards are a maior cause of Iatalities,
The iact that the equipment operates satisfactorily does not imply that the power point is earthed and
that the installation is completely safe. For your safety, ii in any doubt about the ellective earthing of the
power point, consult a qualified electrician.

For U.S.A. and Canada models.

CAUTION

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION '
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSEFITED TO
PREVENT BLADE EXPOSURE.

._2_
