Denon MCS 95 Owners Manual

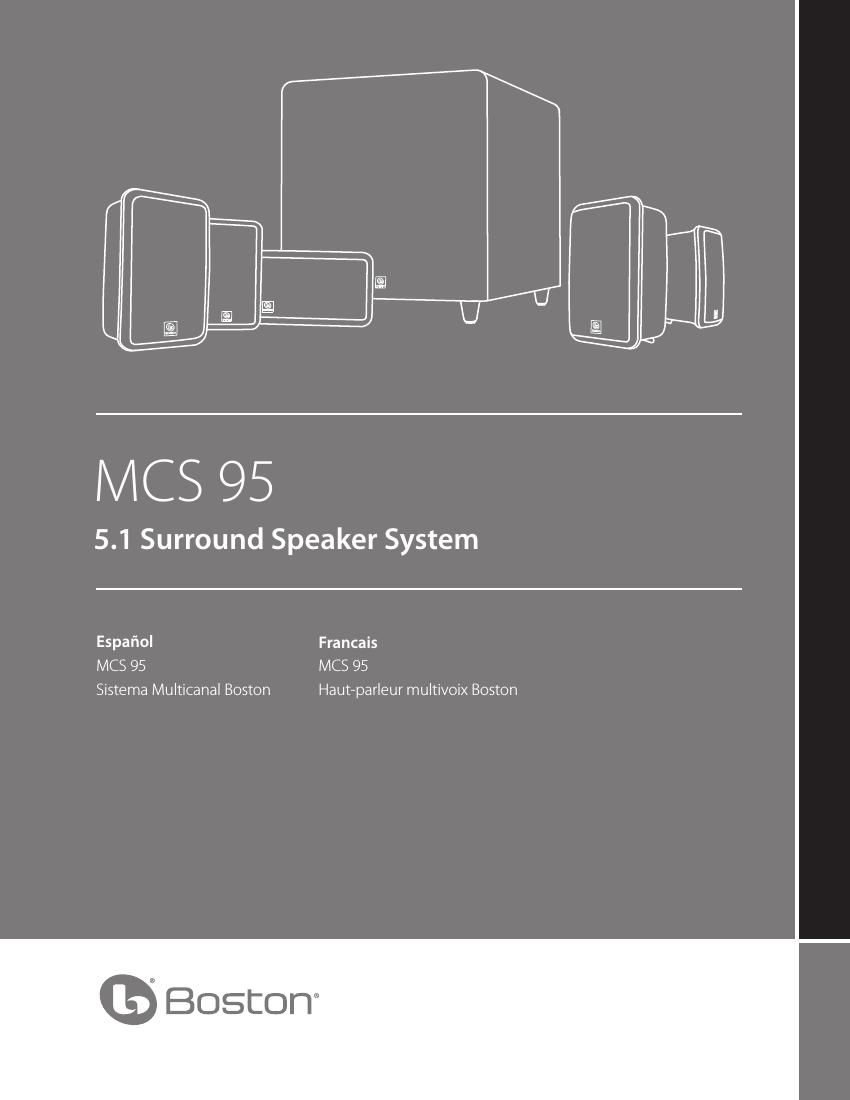

Page 1

MCS 95

5.1 Surround Speaker System

Espafiol Francais
MCS 95 MCS 95
Sistema Multicanal Boston Haut-parleur multivoix Boston

G Boston

Page 2

ill-ICED @ -iL

Specifications Satellites Center Channel Subwoofer

Frequency Response: iZOHz 7 ZOkHz iZOHz 7 20kHz SO - iSOHz

Recommended Amplifier

Power Range: )0 7 iOO watts i0 7 100 watts 7
Sensitivity: 88dB [2.8V at i m] 88dB [2.8V at i m] 7
Nominal Impedance: 8 ohms 8 ohms 7
Crossover Frequency: 3,000Hz 3,000Hz 60Hz 7 iSOl-lz 24dB/octave Iowpass
Amplifier Output: 7 7 100 watts RMS, (250 watts Peak);
BassTrac® circuitry eliminates distortion
Woofer: 3"with Phase Plugs 3"with Phase Plugs 8" (203mm)
&MagnaGuard® &MagnaGuard
Tweeter: /2 (1 3mm) V2" (1 3mm) 7
Dimensions (H X W X D) 73/5 X 43/5 X 4ll/i5" Ell/is X lZS/a X 33/4" lZl/Ir X ll Z/izs X 15 g/ie
(l89xii3x93mm) (i45X3ZlX95mm) (3lOX284X395mm)
Weight 2.5 lbs 4.6 lbs 20 lbs
(1.14kg) (2.) kg) (9kg)
MCS 95 Introduction

Thankyou for purchasing a Boston Acoustics Multi7Channel Speaker Systemihese speakers Incorporate high-quality components
that produce the famous Boston sound.The system is ideally suited for use as a 5.1 channel solution in a high-quality home
theater or music system.The system is complete with everything you need for the typical speaker system Including speaker
wire, satellite speakers, a center channel speaker, and a subwoofer. Please check out Bostonacousticscom/placement for
information on placmg your speakers.

The MCS 95 speaker system delivers exceptionally articulate onscreen dialog, music, effects, and room filling bass from a
small, sleek package. Compact driver placement and quality, system specific crossovers assure a Wide uniform disper5ion
for complete coverage ofa listening room. All speakers also feature MagnaGuardE magnetic shielding which ensures the
speakers magnetic field does not interfere with the television's picture.

Unpacking the System
Carefully unpack the system. lfthere is any sign of damage from transit, report it immediately to your dealer and/or delivery
service. Keep the shipping carton and packing materials for future use. Open the package and verify the following contents:
(4) Satellite speakers : :* : fife
(1)Center Channel speaker J H\ l l l
i . L-l...2

(1) Subwoofer
(2) 40' (12m) speaker Wires (4) Satellite speakers
(3) 20 (6m) speaker wires with 1 removablefoot
(1) 15 (4.6m) subwnofer cable /
(8) Rubber bumpers (used for wall mounting) H

a ll Subwooler

(1) Center Channel speaker
with 2 removable feet
