nPCM, Dolby Digital and DTS Digital Output
nOn-screen Display
A simple press of the Display button on the remote controller lets you see
the current operating status of the DVD-800 within an easy-to-read display on
screen. The various operations and settings are easily changed using the
remote controller while monitoring the screen display.
nAuto Power OFF
nAn esthetic design that complements the DENON AVR-1602 and
AVR-1802 A/V surround receivers

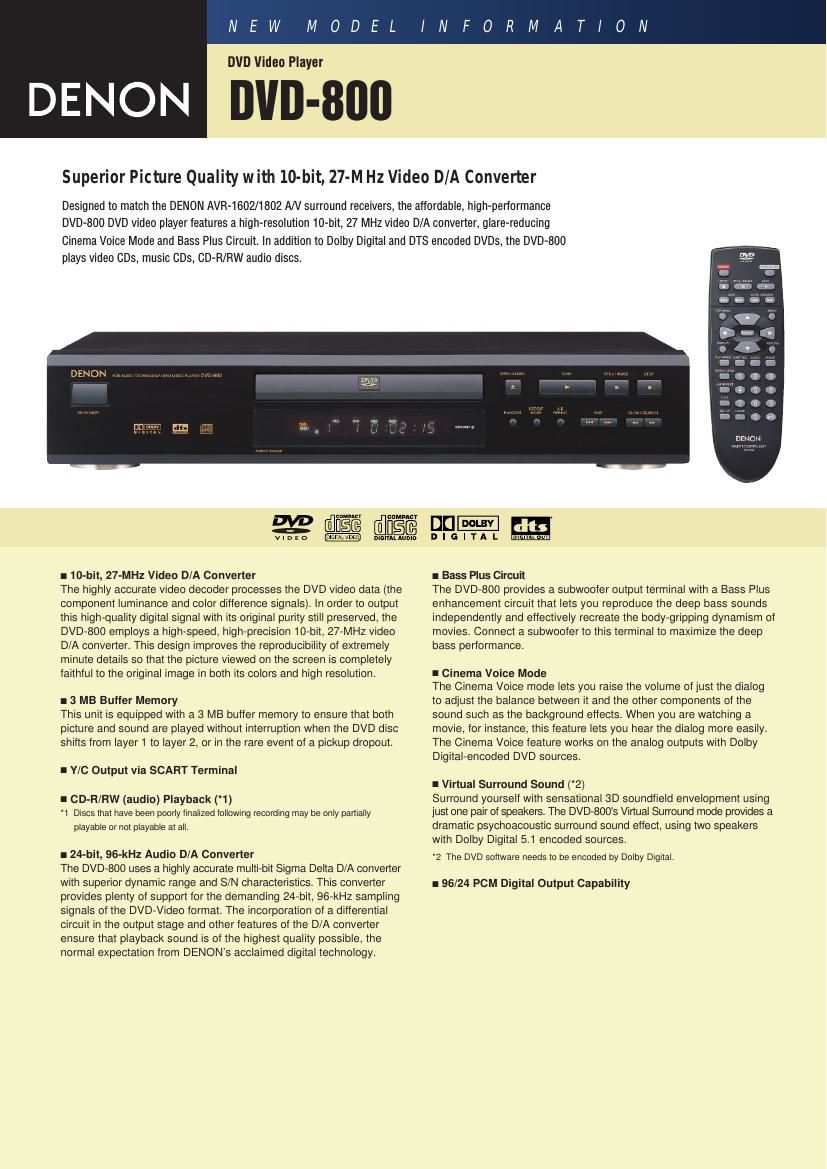

NEW MODEL INFORMATION DVD-800
*Design and specifications are subject to change without notice.
*ÒDolbyÓ, ÒDolby DigitalÓ, ÒPro LogicÓ, and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation.
*DTS is registered trademarks of DTS Technology.
SpecificationsnVideo Section
Signal system ............................................... NTSC/PAL
Disc played .................................................. DVD Video, Video CD, Music CD, CD-R/RW (audio)
Video outputs ................................................ Composite Video Output: 1.0 Vp-p (with 75 ohms load)
S-Video Output:Y, C:
Y; 1.0 Vp-p (with 75 ohms load),
C; 0.3 Vp-p (PAL), 0.286 Vp-p (NTSC)
nAudio Section
Audio outputs ............................................... Analog Ouput (L/R): 2.0 Vrms
Optical Digital Output
Signal-to-noise ratio ..................................... 115 dB
Dynamic range ............................................. 102/98 dB (DVD/CD)
Total harmonic distortion .............................. 0.0025 %
nGeneral
Power supply ............................................... AC 220-240 V, 50 Hz
Power consumption ..................................... 14 W
Dimensions .................................................. 434 (W) x 82 (H) x 247 (D) mm
Weight .......................................................... 2.6 kg
NIPPON COLUMBIA CO., LTD.
14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011, JAPAN
http://elec.denon.co.jp/europe/
26580701B B
