Denon DCD 485 685 Brochure

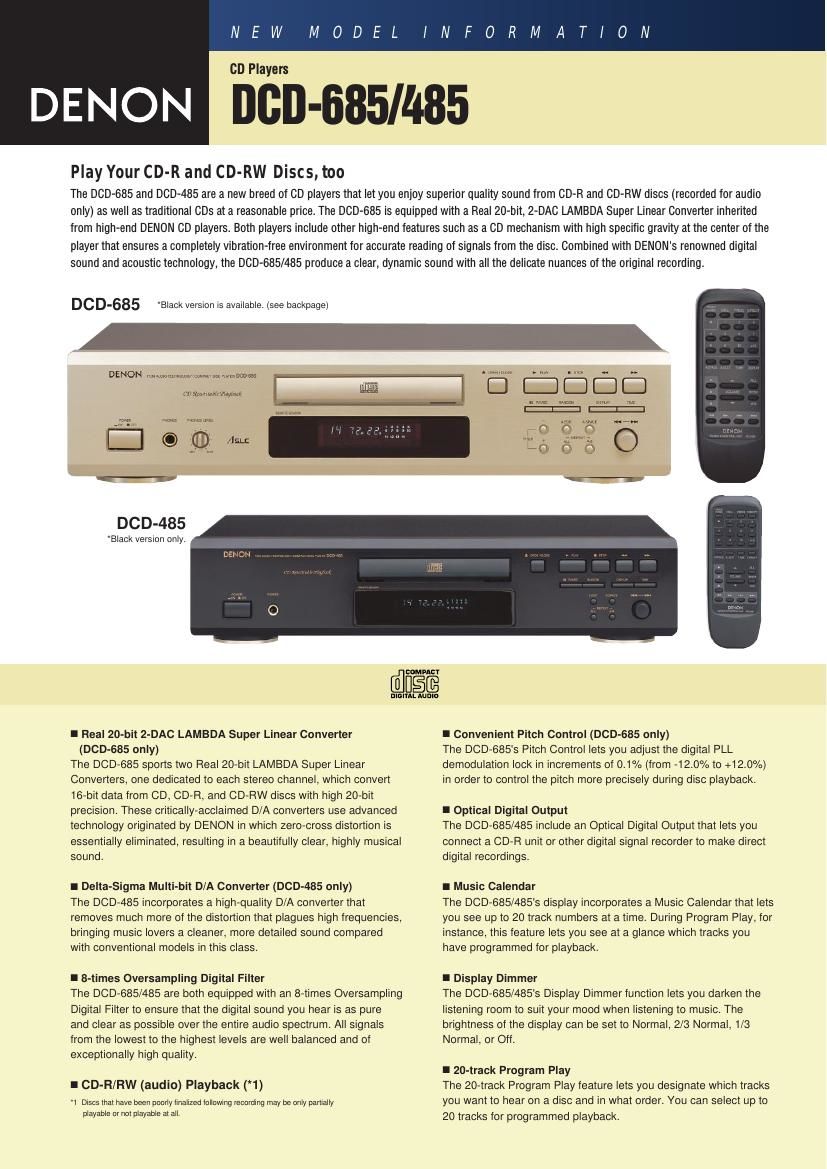

Page 1

NEW MODEL

CD Players

NFORMATION

DENON non-6851485

Play Your CD-R and CD-RW Discs, too

The DCD-685 and DCD-485 are a new breed of CD players that let you enjoy superior quality sound from CD-R and CD only) as well as traditional CDs at a reasonable price. The DOD-685 is equipped with a Real 20-bit, 2-DAC LAMBDA Super Linear Converter inherited
from highend DENON CD players. Both players include other high player that ensures a completely vibration sound and acoustic technology, the DCD685/485 produce a clear, dynamic sound with all the delicate nuances of the original recording.

DOD-685 Black verslon is available. (see backpage)

DCD-485

Black version only,

moerL Aunlo

l Real 20-bit 2-DAC LAMBDA Super Linear Converter
(Deb-635 only)
The DOD-685 sports two Fleal 20-bit LAMBDA Super Linear
Converters, one dedicated to each stereo channel, which convert
16-bit data from CD, CD-Fi, and CD-FtW discs with high 20-bit
precision These critically-acclaimed D/A converters use advanced
technology originated by DENON in which zero-cross distortion is
essentially eliminated, resulting in a beautifully clear, highly musical
sound.

I Delta-Sigma Multi-bit D/A Converter (DOD-485 only)

The DCD-485 incorporates a high-quality D/A converter that
removes much more of the distortion that plagues high frequencies,
bringing music lovers a cleaner, more detailed sound compared
with conventional models in this class.

I B-limes Oversampling Digital Filter

The DOD-685/485 are both equipped with an 8-times Oversampling
Digital Filter to ensure that the digital sound you hear is as pure
and clear as possible over the entire audio spectrum. All signals
from the lowest to the highest levels are well balanced and of
exceptionally high quality.

I CD-R/RW (audio) Playback (*1)

-1 Discs that have been poorly finalized following lemming may be only panlzlly
playable or not playable at all.

I Convenient Pitch Control (DOD-685 only)

The DOD-685's Pitch Control lets you adjust the digital PLL
demodulation lock in increments of 0.1% (from 42.0% to +12.0%)
in order to control the pitch more precisely during disc playback

I Optical Digital Output

The DCD-685/485 include an Optical Digital Output that lets you
connect a CD-Ft unit or other digital signal recorder to make direct
digital recordings

I Music Calendar

The DOD-685/485's display incorporates a Music Calendar that lets
you see up to 20 track numbers at a time. During Program Play, for
instance, this feature lets you see at a glance which tracks you
have programmed for playback.

I Display Dimmer

The DCD-685/485's Display Dimmer function lets you darken the
listening room to suit your mood when listening to music. The
brightness of the display can be set to Normal, 2/3 Normal, 1/3
Normal, or Off.

I 20-track Program Play

The 20-track Program Play feature lets you designate which tracks
you want to hear on a disc and in what orderi You can select up to
20 tracks for programmed playback

Page 2

DENO

NEW MODELINFORMATION DEB-685I485

l A Wealth of Additional Playback Functions

Theres virtually no end to the ways you can enjoy musical selections
from a disc: All-Tracks Repeat, A-B Repeat, Random Play, Search,
and others.

I Centered Mechanism Layout

The pickup mechanism, which is the only moving part in a CD play-
er, has been placed at the center of the DOD-685/485's chassis to
minimize the adverse effects of vibrations, a major source of noise.
This design ellectively preserves the purity of signals read from high-
quality digital sound recordings.

I Other Features

0 JOG Dial

0 Variable Analog Output

0 Headphone

O Headphone Volume (DCD-685 only)
0 Remote Controller RC-266

Specifications
DCD-685 DOD-485

I Audio Section

Channels ..

Disc played

Frequency response

. 2-channel stereo
. Music CD, CD»Fl (audio), CD-RW (audio)
.2 Hz - 20 kHz

2-channel stereo ..................................
Music CD, CD-R (audio), CD-RW (audio
2 HZ - 20 kHz ..........................................

Dynamic range 100 dB . . 98 dB

S/N ratio ...... 110 dB. .105 dB

Total harmonic distortion 0.003 %, 1 kHz . 0.003 %, 1 kHz
Channel separation 103 dB. . 102 dB

Line out level (10 kohms load)
D/A converters .
Oversampling ..

0.2 - 2 V rms (Variable)
20-bit 2-DAC, LAMBDA Super Linear Converter.
8 times .

.02 - 2 V rms (Variable)
. Delta-Sigma Multi-bit DAC
. 8 times

I General

Power supply AC 230 V, 50 Hz, 12 W .............. .AC 230 V, 50 Hz, 11 W
Dimensions 434 (W) x 100 (H) x 285 (D) mm .434 (W) x 100 (H) x 285 (D) mm
Weight ...... 3.6 kg ......................................... . 3.4 kg

DOD-685 Biack version is available.

Design and specifications are subject to change without notice.

NIPFDN COLUMBIA 00., LTD.
14-14, AKASAKA 4-CHOME, MlNATO-KU, TOKYO 1018011, JAPAN
http://elec.darmn.cn.jpleuropel

264fl0301 B B
