DRA-F100nPower Amplifier Section
Rated output power ..................... 30 W + 30 W (4 ohms, 0.7 % THD)
Input sensitivity/Impedance
PHONO MM ........................... 2.5 mV/47 kohms
TAPE ...................................... 160 mV/47 kohms
CD/MD/AUX ........................... 300 mV/47 kohms
Signal-to-noise ratio (A-weighted) ..... 90 dB (Line)
Tone control
Bass ....................................... 100 Hz ±8 dB
Treble ..................................... 10 kHz ±8 dB
nFM Section
Frequency range.......................... 87.5 - 108.0 MHz
Usable sensitivity ......................... 1.5 µV (14.8 dBf)
Signal-to-noise ratio (A-weighted)
Mono ...................................... 75 dB
Stereo..................................... 70 dB
nAM Section
Frequency range.......................... 520 - 1720 MHz
Usable sensitivity ......................... 20 µV
nGeneral
Power supply ............................... 120 V, 60 Hz, 130 W
Dimensions .................................. 270 (W) x 84 (H) x 289 (D) mm
10.6Ó (W) x 3.3Ó (H) x 11.4Ó (D)
Weight.......................................... 4.1 kg, 9.0 lbsDCD-F100
Frequency range.......................... 4 Hz - 20 kHz
Dynamic range............................. 95 dB
Signal-to-noise ratio ..................... 102 dB
Programming ............................... 20 tracks
nGeneral
Power supply ............................... 120 V, 60 Hz, 10 W
Dimensions .................................. 270 (W) x 84 (H) x 264 (D) mm
10.6Ó (W) x 3.3Ó (H) x 10.1Ó (D)
Weight.......................................... 2.7 kg, 5.0 lbs
SC-MS771
Crossover .................................... 3 kHz, phase-corrected; 1st order bass,
2nd order treble
Frequency response .................... 75 Hz - 20 kHz +/- 3 dB
Sensitivity..................................... 1 W/1 M/85 dB
Impedance ................................... 8 ohms
nGeneral
Dimensions .................................. 310 (W) x 172 (H) x 229 (D) mm
12.2Ó (W) x 6.8Ó (H) x 9.0Ó (D)
Weight (each) .............................. 3.8 kg, 8.4 lbs
Specifications

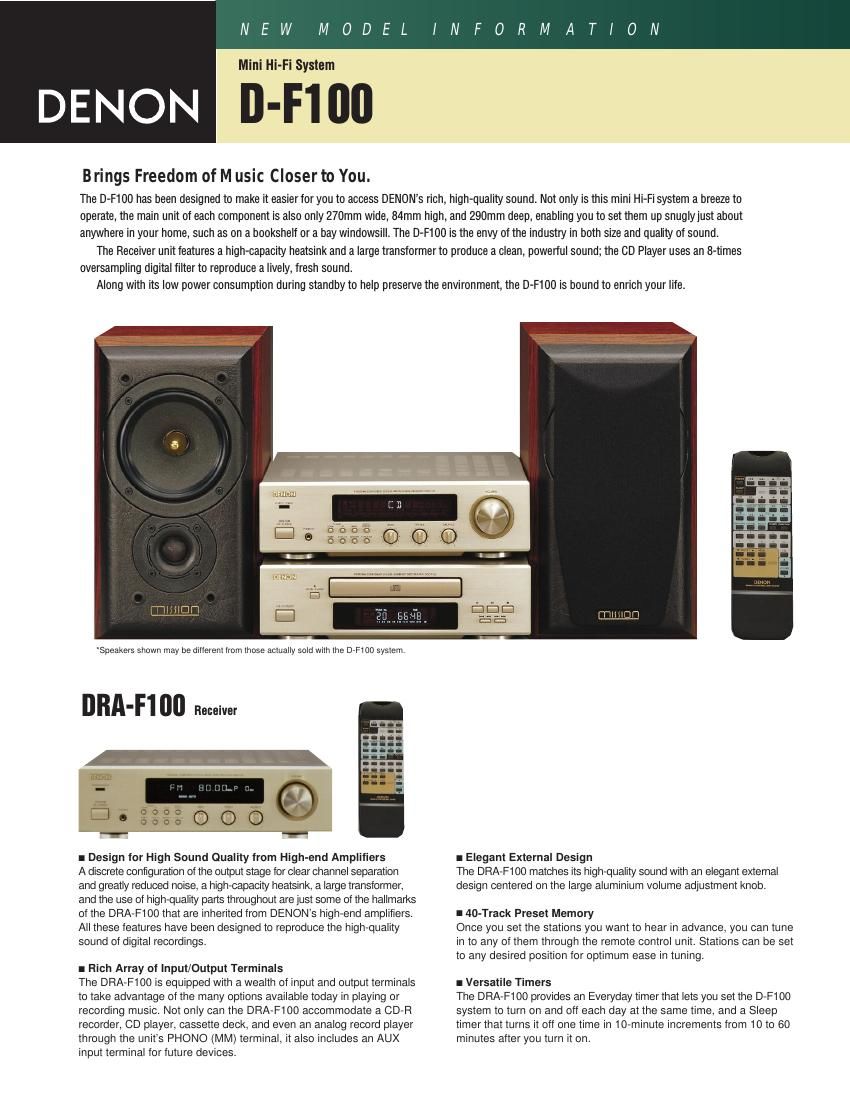

NEW MODEL INFORMATION D-F100
*Speakers shown may be different from those actually sold with the D-F100 system.
*Dimensions: Depth of the DRA-F100 and DCD-F100 includes the knobs and buttons.
*Design and specifications are subject to change without notice.
DENON ELECTRONICSNIPPON COLUMBIA CO., LTD.
DIVISION OF DENON CORPORATION (USA)14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011, JAPAN
19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777 USA www.denon.co.jp
TEL: 973-396-0810 www.del.denon.com
DENON CANADA INC.
17 DENISON STREET, MARKHAM ONTARIO, CANADA L3R 1B5
TEL: 905-475-4085
12400700 A Printed in Japan
n8-times Oversampling Digital Filter
When a digital signal recorded on a CD is D/A converted in its original
form with high-frequency noise, the 8-times oversampling digital filter
in the DCD-F100 multiplies the signalÕs sampling frequency by eight
before it passes to the D/A converter. The noise that is thus clearly
isolated from the musical signal is removed in the analog low-pass filter
so that you can hear cleaner sound.
nOptical Digital Output
A set of optical digital output terminals lets you record high-quality dig-
ital sound as is to a CD-R recorder unit.
nA Variety of Playback Functions
The DCD-F100 offers a palette of playback functions such as
Random Play, three types of Repeat Play, and Programmed Play, to
let you enjoy the same CD in a variety of ways.
DCD-F100 CD Player SC-MS771 Speaker System
nBritain's Best-Selling Speaker
HighQuality Sound and Tasteful Design
Mission, Britain's top-selling speaker brand, has equipped the book-
shelf model 771 with features and technology found throughout the
77 series, and is a perfect match with the D-F100 components.
The Aerogel 5 1/4" bass drive unit provides extended deep bass
response with superb midrange clarity. The 1" soft fabric dome
tweeter is polymer-coated for crisp, extended high frequency
response, and is mounted to the baffle via a unique leaf-sprung
suspension to eliminate driver interaction. The 771's 6 1/2 liter tuned
reflex enclosure is finished in real wood veneer, with a beautiful
rosewood tone satin finish.
*Speakers shown may be different from those actually sold with the D-F100 system.
