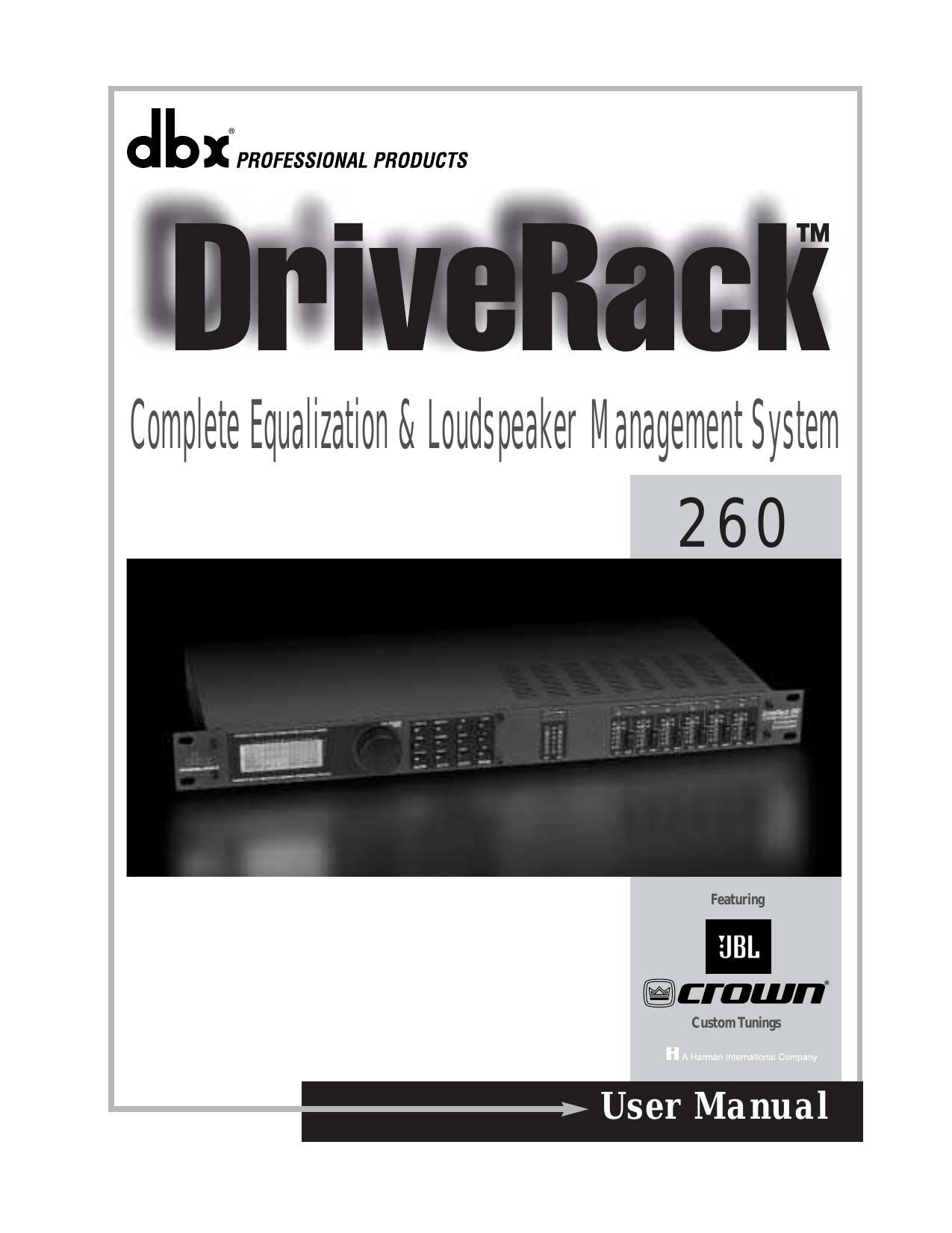

This is the 83 pages manual for Dbx DR 260 Owners Manual. Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Page: 1 / 83
Extracted text from Dbx DR 260 Owners Manual (Ocr-read)
Page 1
WARNING FOR YOUR PROTECTION
PLEASE READ THE FOLLOWING:
KEEP THESE INSTRUCTIONS
HEED ALL W ARNINGS
FOLLOW ALL INSTRUCTIONS
DO NOT USE THIS APP ARATUS NEAR W ATER
CLEAN ONL Y WITH A DR Y CLOTH.
DO NOT BLOCK ANY OF THE VENTILA TION OPENINGS. INST ALL IN ACCORDANCE WITH THE MANUF ACTURERS INSTRUCTIONS.
DO NOT INST ALL NEAR ANY HEA T SOURCES SUCH AS RADIA TORS, HEA T REGISTERS, STOVES, OR OTHER APP ARATUS (INCLUDING AMPLIFIERS) THA T PRODUCE HEA T.
ONLY USE A TTACHMENTS/ACCESSORIES SPECIFIED BY THE MANUF ACTURER.
UNPLUG THIS APP ARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME.
Do not defeat the safety purpose of the polarized or grounding-type plug\
. A polar - ized plug has two blades with one wider than the other . A grounding type plug has two blades and a third grounding prong. The wide blade or third prong a\
re pro - vided for your safety . If the provided plug does not fit your outlet, consult an elec - trician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at p\
lugs, con - venience receptacles, and the point where they exit from the apparatus.
Use only with the cart stand, tripod bracket, or table specified by the \
manufacture,or sold with the apparatus. When a cart is used, use caution when movin\
g thecart/apparatus combination to avoid injury from tip-over .
Refer all servicing to to qualified service personnel. Servicing is req\
uired whenthe apparatus has been damaged in any way , such as power -supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparat\
us, the appa - ratus has been exposed to rain or moisture, does not operate normally , or has been dropped.
POWER ON/OFF SWITCH: For products provided with a power switch, the powe\
r
switch DOES NOT break the connection from the mains.
MAINS DISCONNECT: The plug shall remain readily operable. For rack-mount or
installation where plug is not accessible, an all-pole mains switch with\
a contact
separation of at least 3 mm in each pole shall be incorporated into the \
electrical
installation of the rack or building.
FOR UNITS EQUIPPED WITH EXTERNALLY ACCESSIBLE FUSE RECEPTACLE: Replace fuse
with same type and rating only.
MULTIPLE-INPUT VOLTAGE: This equipment may require the use of a different line
cord, attachment plug, or both, depending on the available power source \
at instal-
lation. Connect this equipment only to the power source indicated on the\
equipment
rear panel. To reduce the risk of fire or electric shock, refer servicing to qualifie\
d
service personnel or equivalent.
This Equipment is intended for rack mount use only.
SAFETY INSTR UCTIONS
NOTICE FOR CUSTOMERS IF YOUR UNIT IS EQUIPPED
WITH A POWER CORD.
WARNING: THIS APPLIANCE MUST BE EARTHED.
The cores in the mains lead are coloured in accordance with
the following code: GREEN and YELLOW - Earth BLUE - Neutral BROWN - Live
As colours of the cores in the mains lead of this appliance may
not correspond with the coloured markings identifying the ter-
minals in your plug, proceed as follows: - The core which is coloured green and yellow mustbe connected to the terminal in the plug marked
with the letter E, or with the earth symbol, or
coloured green, or green and yellow.
- The core which is coloured blue must be connect- ed to the terminal marked N or coloured black.
- The core which is coloured brown must be con- nected to the terminal marked L or coloured red.
This equipment may require the use of a different line cord,
attachment plug, or both, depending on the available power
source at installation. If the attachment plug needs to be
changed, refer servicing to qualified service personnel who
should refer to the table below. The green/yellow wire shall be
connected directly to the units chassis.
W ARNING: If the ground is defeated, certain fault conditions in
the unit or in the system to which it is connected can result in
full line voltage between chassis and earth ground. Severe injury
or death can then result if the chassis and earth ground are
touched simultaneously.
LIVE
E NEUTRAL
EARTH GND
CONDUCTOR
L
N BROWN
BLUE
GREEN/YEL BLACK
Normal Alt W RE COLOR
WHITE
GREEN
The symbols shown above are internationally accepted
symbols that warn of potential hazards with electrical
products. The lightning flash with arrowpoint in an equi-
lateral triangle means that there are dangerous voltages
present within the unit. The exclamation point in an equi-
lateral triangle indicates that it is necessary for the user to
ref er to the owners manual.
These symbols warn that there are no user serviceable
parts inside the unit. Do not open the unit. Do not
attempt to service the unit yourself. Refer all servicing to
qualified personnel. Opening the chassis for any reason
will void the manufacturers warranty. Do not get the unit
w et. If liquid is spilled on the unit, shut it off immediately
and take it to a dealer for service. Disconnect the unit
during storms to prevent damage.
CAUTION
ATTENTION: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS
Page 2
U.K. MAINS PLUG W ARNING
A molded mains plug that has been cut off from the cord is unsafe.
Discard the mains plug at a suitable disposal facility. NEVER UNDER
ANY CIRCUMSTANCES SHOULD YOU INSERT A DAMAGED OR CUT
MAINS PLUG INTO A 13 AMP POWER SOCKET. Do not use the
mains plug without the fuse cover in place. Replacement fuse covers
can be obtained from your local retailer. Replacement fuses are 13
amps and MUST be ASTA approved
to BS1362.
IMPORTANT SAFETY INSTRUCTIONS
ELECTROMAGNETIC
COMP ATIBILITY
This unit conforms to the Product
Specifications noted on the Declaration
of Conformity. Operation is subject to
the following two conditions: - this device may not cause harmfulinterference, and
- this device must accept any interfer- ence received, including interference
that may cause undesired operation.
Operation of this unit within significant
electromagnetic fields should be avoided. - use only shielded interconnecting
cables.
DECLARATION OF
CONFORMITY
Manufacturers Name: dbx Professional Products
Manufacturers Address: 8760 S. Sandy Parkway Sandy, Utah 84070, USA
declares that the product:
Product name: dbx 260
Note: Product name may be suffixed by the EU.
Product option: None
conforms to the following Product Specifications: Safety: IEC 60065 (1998)
EMC: EN 55013 (1990)EN 55020 (1991)
Supplementary Information:
The product herewith complies with the requirements
of the Low Voltage Directive 72/23/EEC and the EMC
Directive 89/336/EEC as amended by Directive
93/68/EEC. Vice-President of Engineering
8760 S. Sandy Parkway
Sandy, Utah 84070, USA
Date: September 19,2002
European Contact: Your local dbx Sales and Service
Office or
Harman Music Group
8760 South Sandy Parkway
Sandy, Utah 84070 USA
Ph: (801) 566-8800
Fax: (801) 568-7583
Page 18
®
- You are now prompted to raise the output gain of the mixer to the level o\
f the per-formance. At this point, mics should be open (on) and you should slowly i\
ncrease
the mixer gain. Once the desired level has been set and all of the fixed\
filters have
been assigned, the unit will automatically move you to the page that ind\
icates the
fixed filter setup has been completed. If you have reached the performance level
setting and all of the fixed filters have not been used, you may want to return to the page that selects the number of fixed filters and re-adjust the n\
umber of fixed
in order to provide you with additional live filters. Regardless, once \
you have com-
pleted the setup, the display will read:
- To return to program mode, simply press the or but-
ton. For more information regarding feedback elimination, please see the AFS para-
meters of the Detailed parameters section.
done for Channel A.
In LIVE mode. Fixed filter setup
F F F F F F L L L L L L A B
mixer gain to
desired level.
Slowly Increase the
F F F F F F L L L L L L A B
Getting Started Section 1 DriveRack
-„¢
11
Page 31
Configuring the DriveRack-„¢
®
24
Section 3 DriveRack
-„¢
B modules. Note that the same EQ types must be selected to link. Use \
the PREV
PG and NEXT PG buttons to move through A and B, and then to the next module
screen which will appear something like this:
- You are now in the Pre-Crossover Insert module. The arrow (in correspond\
ence with theModule 1 or 2 indicators, along with the A and B indicators indicate whi\
ch module block is
currently selected. Rotate the DATA wheel to select either Wire, AGC, Compressor, AFS,
Noise Gate or Subharmonic Synthesizer. Pressing and then rotating the DATAwheel lets you
link or unlink the A and B modules. Note that the same Effect types must selected to link.
Use the PREV PG and NEXT PG buttons to move through A and B, 1 and 2 and then to
the next module screen which will appear something like this:
- You are now in the Pre-Crossover Delay module. The arrow (in corresponde\
nce with the A and B indicators indicate which module block is currently selected. Rot\
ate the DATAwheel
to select Delay type and time. Pressing and then rotating the DATAwheel lets you link or
unlink the A and B modules. Note that the same Effect types must selected to link. Use the
PREV PG and NEXT PG buttons to move through A and B, and then to the next module
screen which will appear something like this:
- You are now in the Crossover module. The arrow (in correspondence with t\
he with the A and B indicators indicate which module block is currently selected. Rot\
ate the DATAwheel
to select Crossover type. Pressing and then rotating the DATAwheel lets you select the route
path. You can route either Input A, Input B or the summed Input A+B to any mono\
input
crossover. A stereo crossover can only have A and B routed to its two inputs.Use\
the PREV
PG and NEXT PG buttons to move through A and B, Outputs 1-6 and then to the next mod-
ule screen which will appear something like this:
1X1 FILTER
Select
Route 2 A A 3 4 A B 56 A A
2
MONO DLY 1.3
10 ms Unused
Select
Link/Unlink A
B D
D
COMP
Select
Link/Unlink A
B
2
N
C
C
F
1
DriveRack-„¢ User Manual
Page 54
®
To meter various aspects of the 260, press and hold the UTILITYbutton until the display enters
the Metering section.
- Use the PREV PG and NEXT PG button to move to the page that appears
as follows:
This page meters the gain reduction of any Dynamic block configured in t\
he
Insert 1 or Insert 2 block.
- Use the PREV PG and NEXT PG button to move to the page that appears
as follows:
This (as well as the following) page meter the gain reduction on outpu\
ts 1-6
of the Limiter module.
- Use the PREV PG and NEXT PG button to move to the page that appears
as follows:
This (as well as the following) page show any activity (such as level\
changes
and program changes) being made by up to 6 activated ZC- Remotes.
Zone Controllers
Panel 1
Panel 2
Panel 3
LIM 0+
LIM
LIM
-30-20 0 +20
-
0+ -
0+ -
1
2
3
INS COMP o+
1
INS
2
-30-20 0 +20
- A
B
A
B
5.2.1 - Meters
Utilities/Meters Section 5 DriveRack
-„¢
47
