Dbx 166 service manual

Page 1

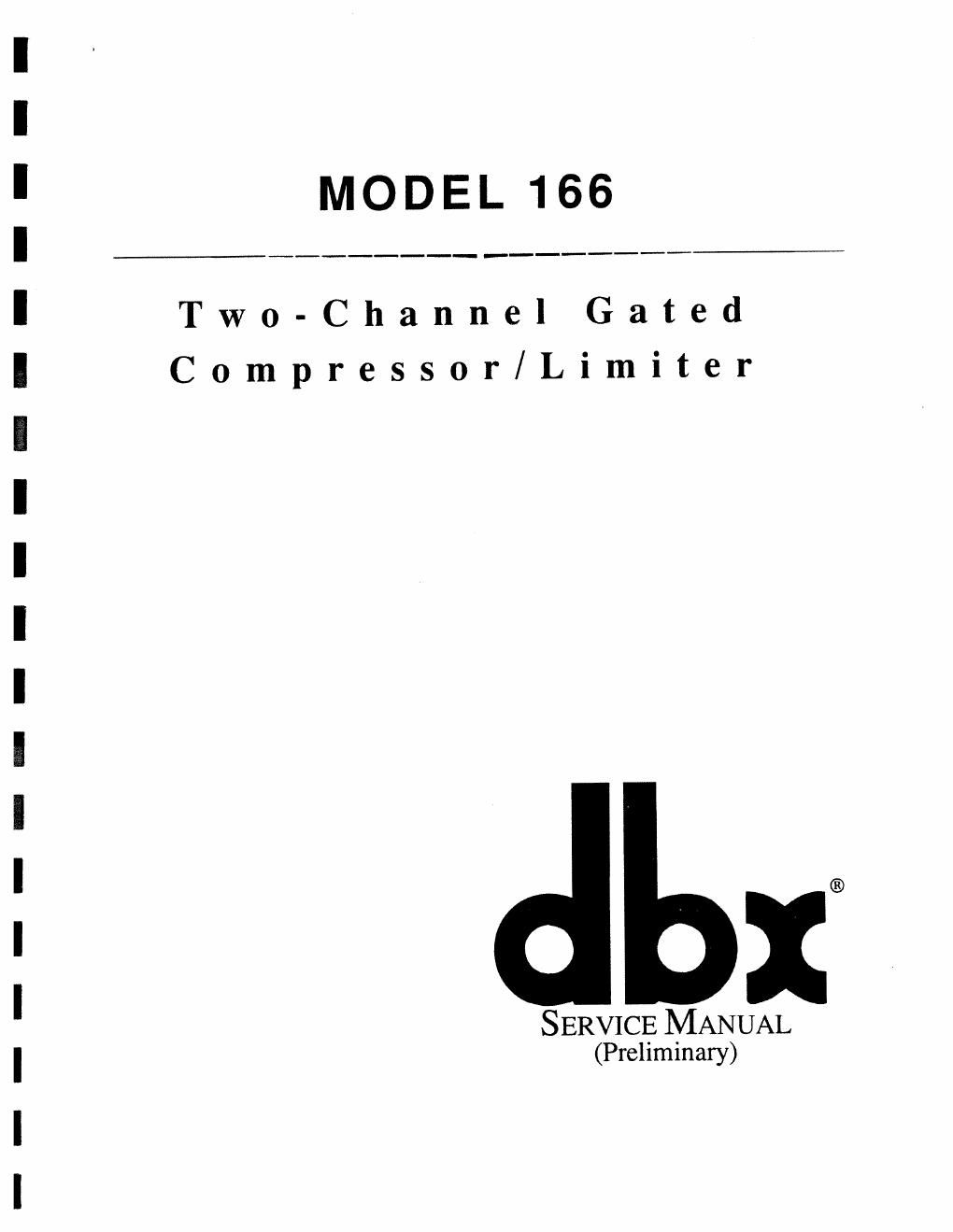

MODEL 166

.__.....____...- .n-...-.-_.._._

Two-Channel Gated
Compressor/Limiter

I

SERVICE MANUAL
(Preliminary)

®

Page 2

CAUTION AVIS

RISGUE DE CHOC
RISK OF ELECTRIC SHOCK ELECTFHOUE

9° W 05" NE us aware
Do NOT expose TO RAIN on MOISTURE

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

This symbol, wherever it appears, This symbol, wherever it appears,
alerts you to the presence of uninsulated alerts you to important operating
dangerous voltage inside the enetosure - voltage and maintenance instructions in
that may be sufficient to constitute a risk of shock the accompanying literature.

Read the manual.

Manufactured under one or more of the following US patents: 3,377,792; 3,681,618; 3,714,462; 3,789,143;
«097,767; 4,329,598; 4.401199; 4,409500; 4,425,551; 4,473,795. Other patents pending.

This dbx»branded product has been manufactured by AKG Acoustics. Incl

AKG is a registered trademark of Akustiche u Klno-Ger'aite Ges m.th.. Austria.
All trademarks are property of their respective companies

This manual is pan number 96014-00002
© Copyright 1993 by AKG Acoustics. Inc 150 - FB - 1/93

dbx Professional Products
a division of AKG Acoustics, Inc,

x 1525 Alvarado Street, San Leandro. CA 94577 USA
Telephone (1) 510/351-3500 Fax: (1) SIG/3510500
