Dbx 163X Service Manual

Page 1

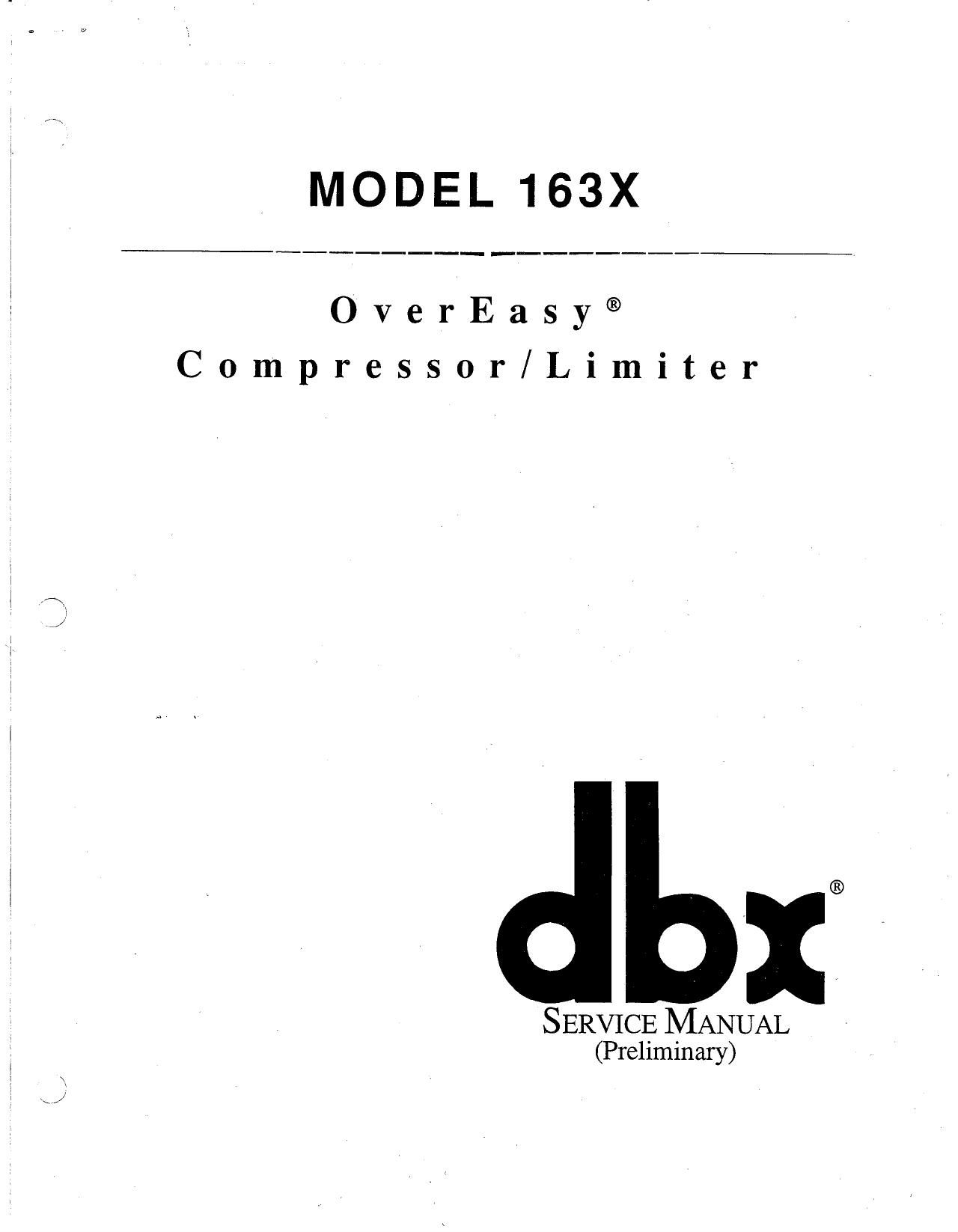

MODEL 163X

._._.___...___-__.._ .--_-_._..___

OverEasy®
Compressor/Limiter

Jbr

SERVICE MANUAL
(Preliminary)

Page 2

CAUTION

RISOUE DE CHOO
RISK OF ELECTRIC SHOCK ELECTFHGUE

9° N°T WEN NE PAS ouvnIn
Do NOT EXPOSE To RAIN OR MOISTURE

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO REDUCE THE RISK OF FIRE 0R ELECTRICALSHOCK, DO NOT EXPOSE THIS APPLIANCE To
RAIN OR MOISTURE

This symbol, wherever it appears, This symbol, wherever it appears,

alerts you to the presence of uninsulated alerts you to important operating

dangerous voltage inside the enclosure - voltage and maintenance instructions in

that may be sufficient to constitute a risk of shock. the accompanying literature.
Read the manual.

Manufactured under one or more of the following U.S. patents: 3,377,792; 3,681,618; 3,714,462; 3,789,143;
4,097] 67; 4,329,598; 4,403,199; 4,409 ,500; 4,425,551; 4,473,795 . Other patents pending.

This dbx-branded product has been manufactured by AKG Acoustics, Inc,

AKG is a registered trademark of Akustiche u. Kine-Germ Ges m.b.H,. Austria.
All trademarks are property of their respective companies.

This manual is part number 96013-000-02
© Copyright 1993 by AKG Acoustics, Inc. 75 » FB - 1/93

dbx Professional Products
a division of AKG Acoustics. Inc.

x 1525 Alvarado Street, San Leandro, CA 94577 USA
Telephone (1) 510/351-3500 Fax: (1) 510/351-0500
