Crown International
1718 W. Mishawaka Rd.
Elkhart, IN 46517-9439
TEL: 574-294-8200
FAX: 574-294-8FAX
www.crownaudio.com
5/08 140638-2\
A

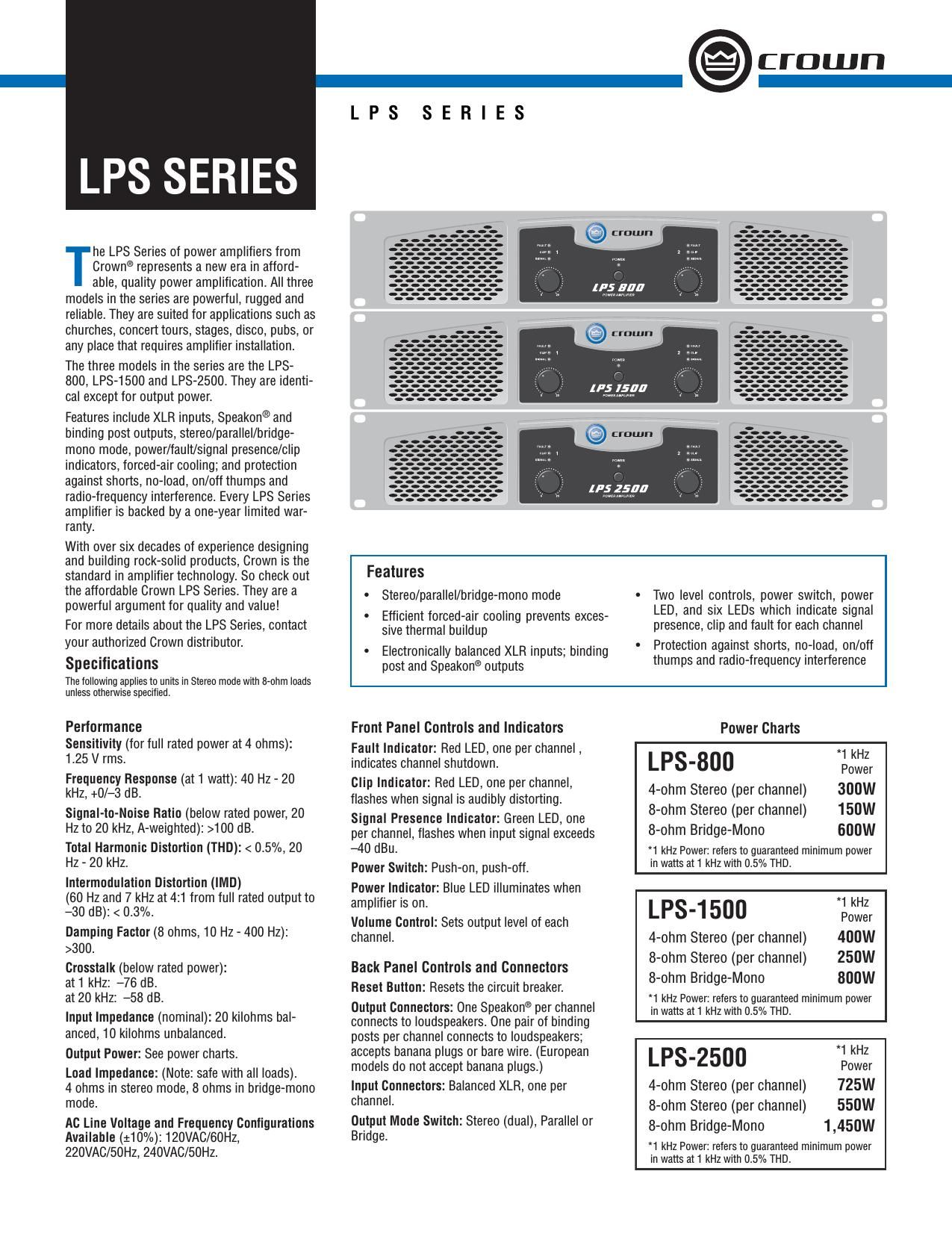

LPS SERIES
Specifi cations subject to change without prior notice. Latest
information available at www.crownaudio.com.
Crown and Crown Audio are registered trademarks of Crown
International. Other trademarks are the property of their
respective owners. Printed in U.S.A.
© 2008 Crown Audio
®, Inc.
Protection
LPS Series amplifi ers provide extensive pro-
tection against short circuits, no-load, on/off
thumps, and radio-frequency interference.
The amplifi ers are stable into reactive or mis-
matched loads.
Construction
Ventilation: Flow-through ventilation from front
to back.
Cooling: Internal heat sinks with forced air. Fan
cooled, speed regulated, thermal protection.
Dimensions: EIA Standard 19 inches (48.3 cm)
rack mount wide (EIA RS-310-B), 3.5 inches
(8.9 cm) high and 15.2 inches (38.6 cm) deep.
Weight
Net Shipping
LPS-800: 20.9 lb (9.5 kg) 24.0 lb (10.9 kg)
LPS-1500: 22.9 lb (10.4 kg) 26.0 lb (11.8 kg)
LPS-2500: 29.8 lb (13.5 kg) 32.8 lb (14.9 kg)
LPS-800 Back Panel
Crowns One Year Limited Warranty
Crown International, 1718 West Mishawaka Road, Elkhart, Indiana 46517-4095 U.S.A. warrants to you, \
the ORIGINAL PURCHASER and ANY SUBSEQUENT OWNER of each NEW Crown LPS am\
plifi er, for a
period of one (1) year from the date of purchase by the original purchaser (the warranty period) that
the new Crown product is free of defects in materials and workmanship. W\
e further warrant the new
Crown product regardless of the reason for failure, except as excluded i\
n this Warranty.
Warranty is only valid within the country in which the product was purchased.
This Crown Warranty is in effect only for failure of a new Crown LPS amplifi er which occurred within
the Warranty Period. It does not cover any product which has been damaged bec\
ause of any inten-
tional misuse, accident, negligence, or loss which is covered under any \
of your insurance contracts.
This Crown Warranty also does not extend to the new Crown LPS amplifi er if the serial number has
been defaced, altered, or removed.
Please contact your authorized Crown distributor for more warranty infor\
mation.
