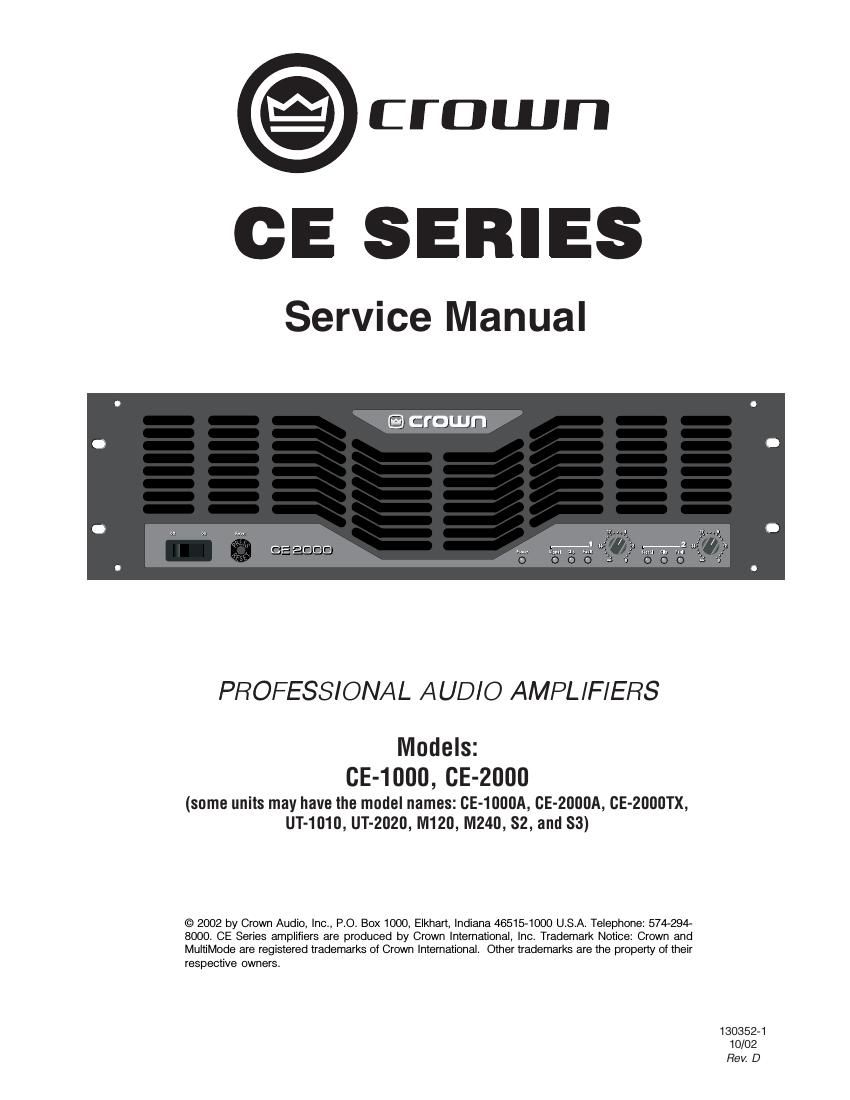

CE Series Service ManualRev. D
The information furnished in this manual does not include all of the det\
ails of design, production, or variations of
the equipment. Nor does it cover every possible situation which may aris\
e during installation, operation or
maintenance. If you need special assistance beyond the scope of this man\
ual, please contact the Crown
Technical Support Group.
Mail: P.O. Box 1000 Elkhart IN 46515-1000
Shipping: 1718 W. Mishawaka Rd., Elkhart IN 46517
Phone: (800) 342-6939/(574) 294-8200
FAX: (574) 294-8301
Web : www.crownaudio.com
Ã- PRÉVENIR LE CHOC
ÉLECTRIQUE NENLEVEZ
PAS LES COUVERTURES. RIEN DES PARTIES
UTILES Ã- LINTÉRIEUR. DÉBRANCHER LA
BORNE AVANT DOUVRIR
LA MODULE EN ARRIÈRE.
TO PREVENT ELECTRIC SHOCK
DO NOT REMOVE TOP OR
BOTTOM COVERS. NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
DISCONNECT POWER CORD
BEFORE REMOVING REAR INPUT MODULE TO ACCESS GAIN SWITCH.
CAUTION AV I S
WARNING
TO REDUCE THE RISK OF ELECTRICSHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE!
I
Page 2
CE Series Service Manual
Rev. D
Revision History
Revision Number
Date Changes
Rev. A
Rev. B
Rev. C
Rev. D 3-98
2-99
5-99
10-02
II
Initial Printing
Added Additional Module Documentation.
Added Revision History.
Added Inside Cover Page.
Updated Cover Page and Table of Contents.
Updated Graphic on Page 1-1.
Updated Specifications on Page 1-2.
Added Section 7, Module and Schematic Information.
Added Section 8, Module Parts Lists.
Moved existing Module Parts Lists from Section 6 to
Section 8.
Added Module Parts Lists for Module CPNs:102139-11,
102140-11, 127321-1, 127323-1, 127353-1, 127373-2,
127354-1, and 127354-2.
Added Section 9, Field Service Modifications.
Added Section 10, Schematics.
Moved all existing Schematics from Section 6 to
Section 10.
Added Schematics 102141M and 102142M.
Updated Cover Page, Revision History and Table of
Contents.
Revised fan part no. from 125400-3 to 133551-1.
Updated phone number area code.
Updated sections 1.2, 1.3.6, 7.2, 7.2.1, 7.2.3, 7.3,
7.3.2, 7.3.3, 7.4.1, 9.2, 9.4.
Added Module Parts Lists for Module CPNs:
102140-9 revB, 126883-2 rev B, 127321-2, 127323-2,
127353-3, 127354-3, 127451-4 and 127452-4.
Added Schematics 127451-4 and 127452-4.
Added Assembly Parts List for CE1000A and CE2000A
Domestic.
Revised Crown logo.
Updated Cover Page, Revision History and Table of
Contents.
