Wave Bands Worldwide FM 87 - 108 MHz
Japan FM 76 - 90 MHz
Europe MW/AM 522 - 1611 kHz
USA AM 530 - 1710 kHz
Europe only LW 144 - 288 kHz
Frequency increments50 KHz FM, 9 or 10 kHz AM
Sensitivity (IHF 50dB)< 20 µ µ
V mono < 100 µ µ
V stereo
Selectivity (IHF)>70 dB ± 0.4 MHz FM
>60 dB ± 15 kHz AM
Number of pre-sets29 - MW, 29 - FM, 6 - LW
Frequency Response FM only20 Hz to 16 kHz -1 dB
Total Harmonic Distortion< 0.3% (FM) , <3% (AM)
Stereo Separation FM only> 30 dB
Signal to Noise Ratio FM only> 69 dB (full limiting)
Output Voltage 0.5 V RMS for 50 kHz deviation
Aerial Connections300 -„¦ -„¦
and 75 -„¦ -„¦
co-ax
Remote Control ProtocolRC5 (Phillips)
Power Consumption max7 W
Power Supply Voltage220/240 V AC 50 Hz
100/115 V AC 60 Hz
Size42 x 6 x 22, 16.5 x 2.4 x 8"
Weight3Kgs - 7lb
Creek Audio Limited reserves the right to modify or change the specifications of its products at any time without notice.

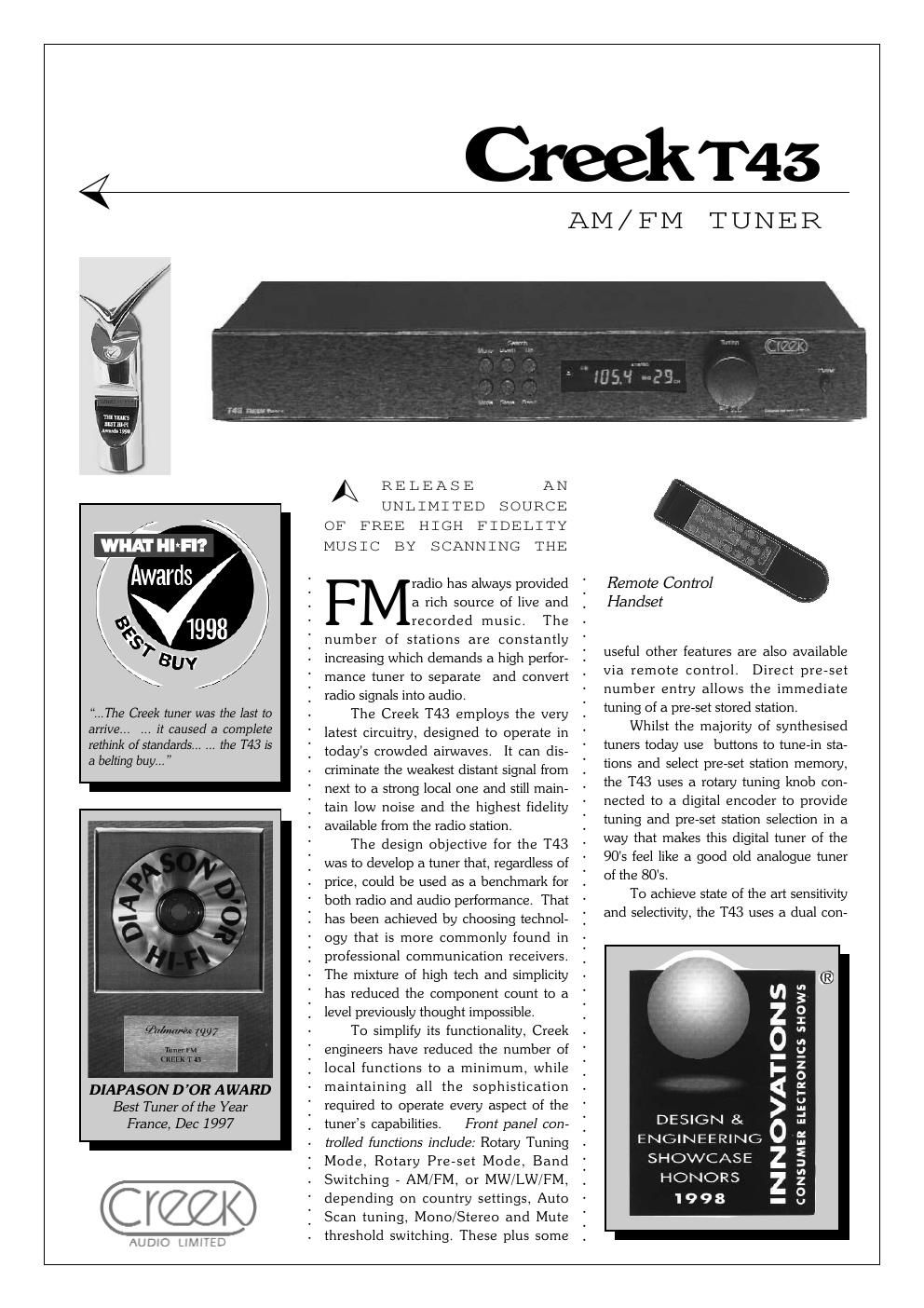

CREEK T43 AM/FM TUNER
TECHNICAL SPECIFICATIONS
version method of retrieving radio
signals, which combined with a
single stage broadly tuned front-
end, allows the T43 to pick out
weak stations from the airwaves
when they are closely situated in
frequency to a strong local station.
Local AFC also allows the digital
bus to be switched-off when not in
use, maintaining even lower levels
of digital interference to the radio
signal.
Surface mount technology
and the use of double sided plated
through hole printed circuit boards
provide a high level of interference
suppression and help to achieve
professional levels of performance.
To create the simplicity of
operation and custom features like
remote control, rotary tuning and
pre-sets, Creek wrote
custom soft-
ware
to drive all the controls via a
two wire digital bus. All the active
devices in the T43 are controlled
by this digital bus, which allows
the design of the tuner to be
updated by changing the codes in
the microcontroller. Future
upgrades, or changes of country
settings are made easy as thesecustom features and station pre-
sets are held in a non-volatile
memory, similar to that of a PC
computer.
Since its release in the middle
of 1997, the T43 has won praise,
from all that have
used it, for its
novel features
and breathtaking
sound quality.
What Hi-Fi were
even persuaded
to describe its
addictive quality
as a reason to re-
think the idea of
radio as a purely
backgroundmusic medium. The open and
dynamic sound capabilities of the
T43 are only restricted by the
quality of the aerial antenna used
and the source quality from the
radio station.
Main Board Layout
½
Back Panel
½
