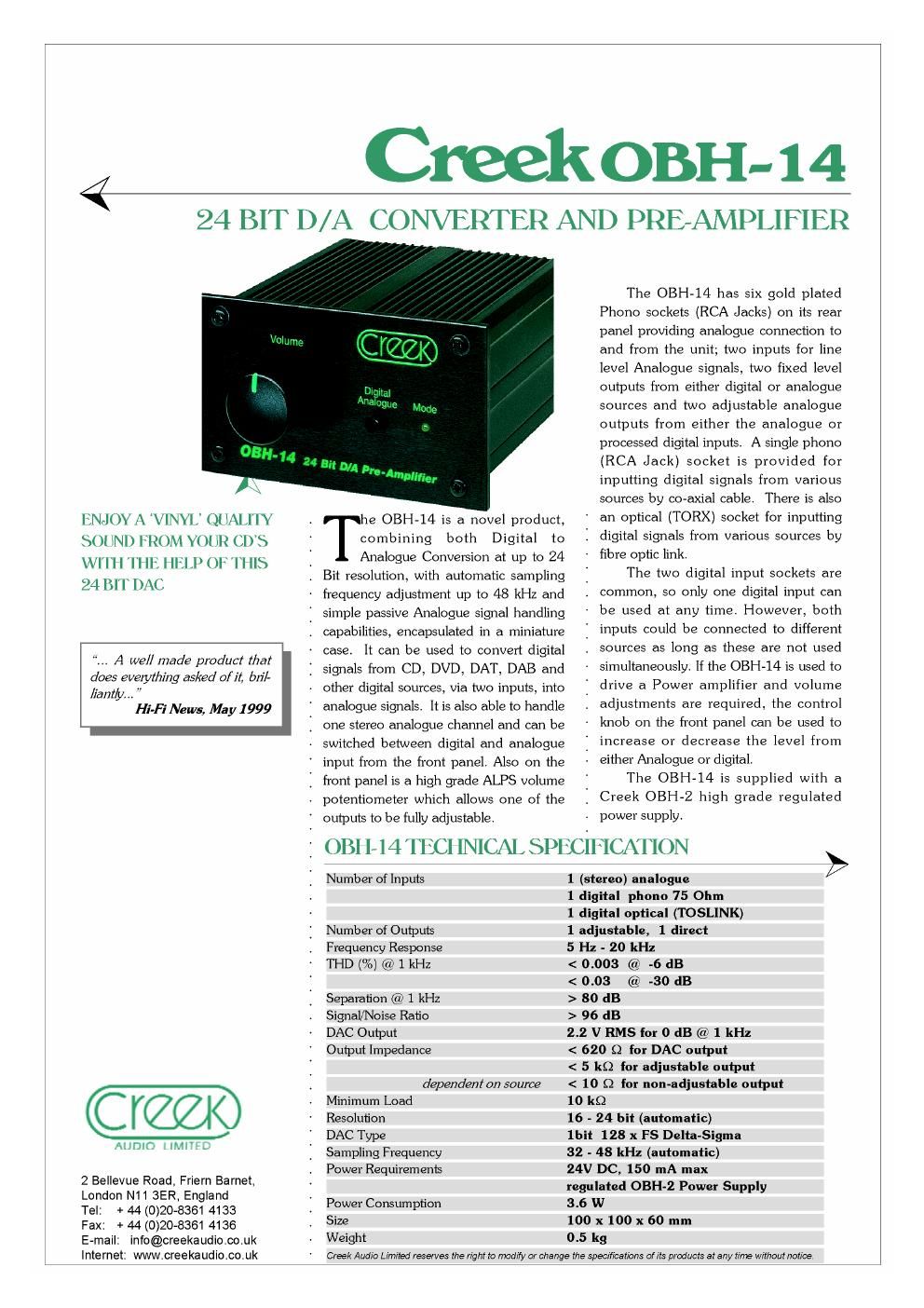

Creek OBH- 14
24 BIT D/A CONVERTER AND PRE-AMPLIFIER
ENJOYA VlNYl QUALITY
SOUND FROM YOUR CD'S
VVTTH THE HELP OF THIS
24 BH DAC
., A well made product that
does everything asked ofit, bn'l-
lian
HiFi News, May 1999
CFQQJ
AUDIO LIMITED
2 Bellevue Road, Friern Barnet,
London N11 3ER, England
Tel: + 44 (0)20-8361 4133
Fax: + 44(0)20-8361 4136
E-mail: info@creekaudio.oo.uk
Internet: www.creekaudio.co.uk
he OBH-14 is a novel product,
combining both Digital to
Analogue Conversion at up to 24
: Bit resolution, with automatic sampling
frequency adjustment up to 48 kHz and
: simple passive Analogue signal handling
. capabilities, encapsulated in a miniature
~ case.
: signals from CD, DVD, DAT, DAB and
- other digital sources, via two inputs, into
analogue signalst It is also able to handle
: one stereo analogue channel and can be
- switched between digital and analogue
input from the front panel Also on the
: front panel is a high grade ALPS volume
A potentiometer which allows one of the
outputs to be fully adjustable
It can be used to convert digital
OBH- l4 lliCHNICAl SP]
The OBH-14 has six gold plated
Phono sockets (RCA Jacks) on its rear
panel providing analogue connection to
and from the unit: two inputs for line
level Analogue signals, two fixed level
outputs from either digital or analogue
sources and two adjustable analogue
outputs from either the analogue or
processed digital inputs. A single phono
(RCA Jack) socket is provided for
inputting digital signals from various
sources by co-axial cable.
' an optical (TORX) socket for inputting
: digital signals from various sources by
- fibre optic link.
i The two digital input sockets are
: common, so only one digital input can
- be used at any time However, both
inputs could be connected to different
: sources as long as these are not used
- simultaneously It the OBH-14 is used to
drive a Power amplifier and volume
: adjustments are required, the control
- knob on the front panel can be used to
increase or decrease the level from
There is also
: either Analogue or digital
The OBH-14 is supplied with a
: Creek OBH- 2 high grade regulated
power supply
iCll ICA 1 [ON
Number of Inputs
Number of Outputs
Frequency Response
THD (%) @ 1 kHz
Separation @ 1 kHz
Signal/Noise Ratio
DAC Output
Output Impedance
dependent on source
Minimum Load
Resolution
DAC Type
Sampling Frequency
Power Requirements
Power Consumption
Size
Weight
>
1 (stereo) analogue
1 digital phono 75 Ohm
1 digital optical (TOSLINK)
1 adjustable, 1 direct
5 Hz - 20 kHz
< 0.003 @ -6 dB
< 0.03 @ -30 dB
> 80 dB
> 96 dB
2.2VRMStor0dB@1kHz
< 620 Q for DAC output
< 5 k!) for adjustable output
< 10 Q for non-adjustable output
10 kg
16 - 24 bit (automatic)
lbit 128 x FS Delta-Sigma
32 - 48 kHz (automatic)
24V DC, 150 mA max
regulated OBH-2 Power Supply
3.6 W
100 x 100 x 60 mm
0.5 kg
Creek Audio Limited reserves the right to modify or change the specifications ofits products at any time wIthot/tnotfce
