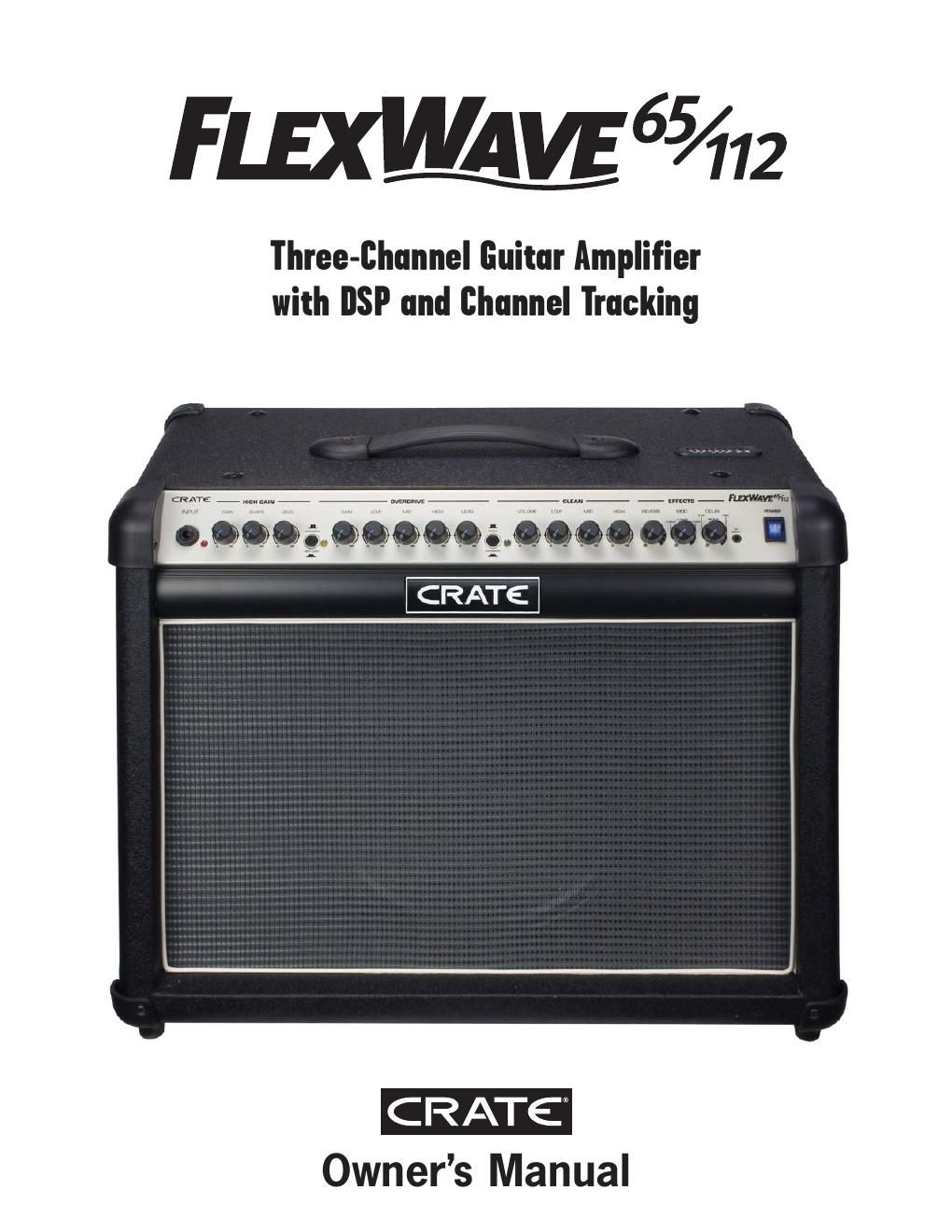

Page 1
FlexWave65/112 Guitar Amplifier w/DSP and Channel Tracking
2
IMPORTANT SAFETY INSTRUCTIONS
READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS.
DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. FOR
PROPER OPERATION, THIS UNIT REQUIRES 3 (75mm) OF WELL VENTILATED SPACE AROUND HEATSINKS AND OTHER AIR
FLOW PROVISIONS IN THE CABINET.
DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS.
CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS.
ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND
COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS.
PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED.
UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME.
ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE
OPERATION AND TO AVOID INJURY.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL.
OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND
PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR
PROTECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME.
WARNING: THIS UNIT REQUIRES A SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRIC CODES HAVING THE
LINE SUPPLY VOLTAGE, POWER, AND FREQUENCY IDENTIFIED ON THE REAR OF THE UNIT. THE OUTLET MUST REMAIN
ACCESSIBLE TO DISCONNECT THE UNIT IF A FAULT SHOULD ARISE WHILE IN USE. THIS UNIT SHOULD BE UNPLUGGED WHEN
NOT IN USE.
CAUTION RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
"IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL"
ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES.
"REFERREZ-VOUS AU MANUAL D'UTILISATION" EXPLANATION OF GRAPHICAL SYMBOLS:
EXPLICACION DE SIMBOLOS GRAFICOS:
EXPLICATION DES SYMBĂ-LES GRAPHIQUES: "DANGEROUS VOLTAGE"
VOLTAJE PELIGROSO
"DANGER HAUTE TENSION" = =
PRECAUCIONRIESGO DE CORRIENTAZO
NO ABRA
PRECAUCION: PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS
ELECTRICAS, NO PERMITA QUE ESTE APARATO QUEDE EXPUESTO A LA
LLUVIA O LA HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO.
NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO
REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS.
ATTENTION RISQUE D'ELECTROCUTION
NE PAS OUVRIR
ATTENTION: PROTÉGEZ CET APPAREIL DE LA PLUIE ET DE L'HUMIDITÉ
AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION. POUR
REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE
PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE
REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE.
TABLE OF CONTENTS
Introduction ............................................................. 3
Channel Tracking ..................................................... 4
The Front Panel ....................................................... 5
The Rear Panel ........................................................ 6
The DSP Section ...................................................... 7
Using the Footswitch with the DSP ............................ 8
Suggested Settings .................................................. 9
System Block Diagram ........................................... 10
Technical Specifications .......................................... 12
Service Information ................................................ 12
Page 2
FlexWave65/112 Guitar Amplifier w/DSP and Channel Tracking
Introduction
Congratulations! You are now the proud owner of the Crate FlexWave65/112 three-channel
guitar amplifier with advanced digital signal processing (DSP) and Channel Tracking. This rug-
ged amplifier combines outstanding features with serious clean and distorted sounds. Digital
Reverb, Delay, and Modulation effects provide you with a wide variety of sounds. Crates
unique Channel Tracking feature automatically stores your DSP settings for each channel to
memory. As you switch from one channel to another, the DSP settings for the selected chan-
nel are instantly recalled. The supplied three-button footswitch allows you to select channels
and change the DSP bank (Bank A/Bank B) by remote control. A front panel 1/8" stereo
CD input jack allows you to play along with your CD player, MP3 player, or iPod. A rear panel
insert jack allows you to add even more effects by connecting an external effect processor.
Like all Crate products, your FlexWave65/112 amplifier is designed by musicians and built
using only the best components. Extensive testing confirms that this amplifier is the absolute
best it can be.
In order to get the most out of your new amplifier, we strongly urge you to read this manual
before you begin playing.
And thank you for choosing Crate.
Here are some of the features packed into your new FlexWave65/112 Combo Amplifier:
- 65 watts rms power output
- 1 x 12" speaker
- Three-Channel Operation
-High Gain Channel
-Overdrive Channel
-Clean Channel
- 3-band EQ on the Overdrive and Clean Channels
- Proprietary Shape EQ control on the High Gain Channel
- DSP Effects including Delay, Modulation, and Reverb sections
- CD Input
- Effects Loop
- 3-Function Footswitch included
- External Speaker jack
- Built-in Chromatic Tuner
3
